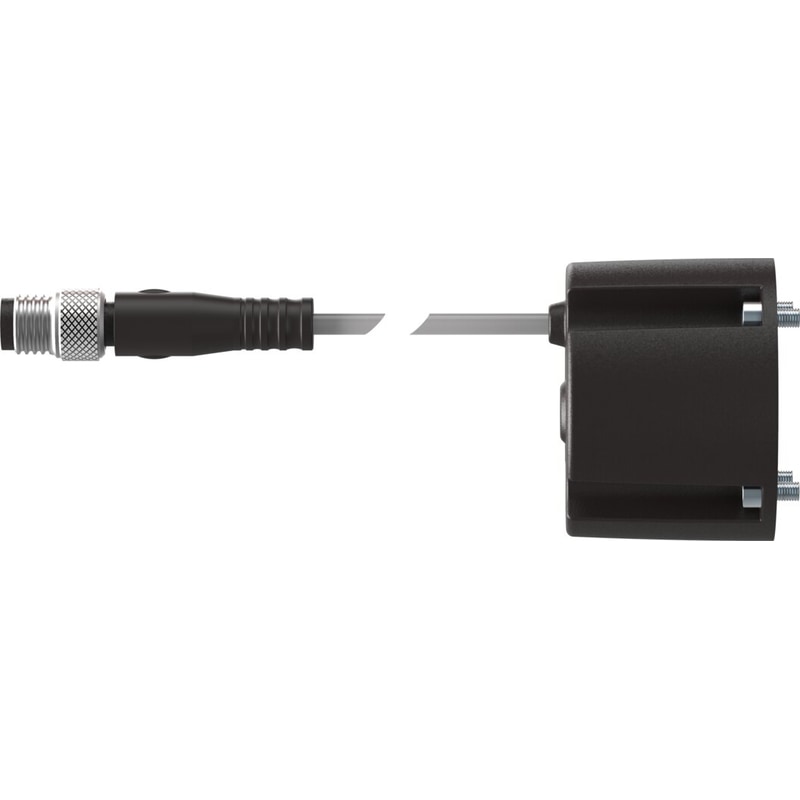

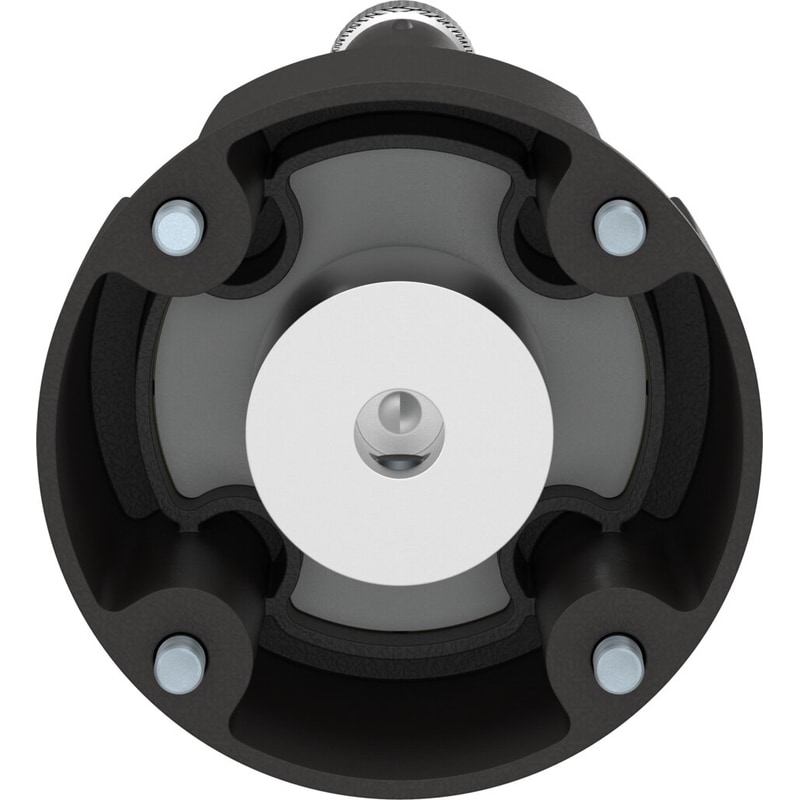

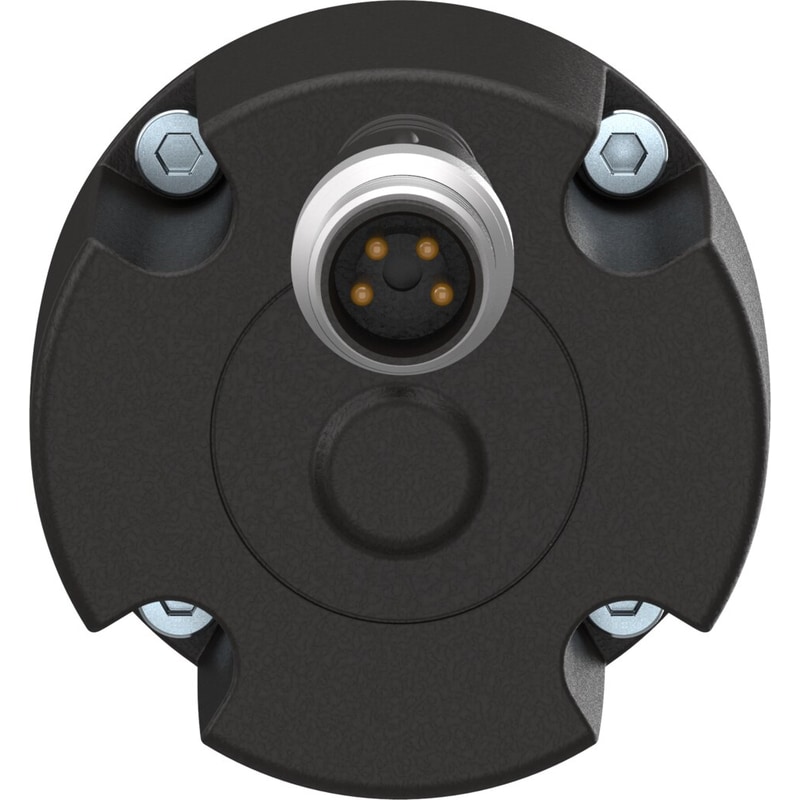

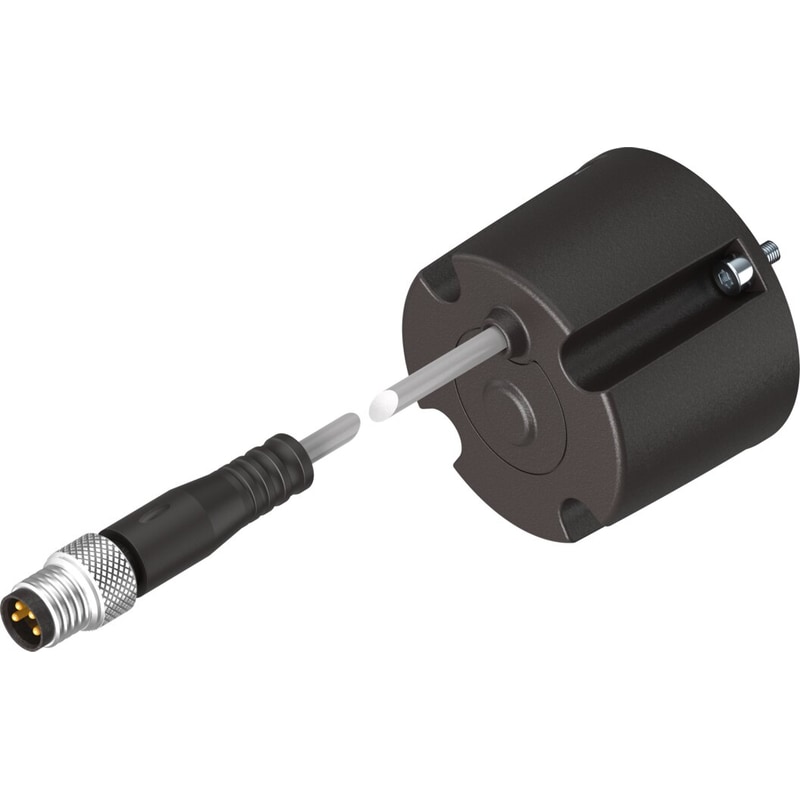

position sensor SRBS-Q12-8-E270-EP-1-S-M8 is used to detect the rotation of the shaft for quarter turn actuators, sensing is magnetic and contactless. Design=Round, Based on the standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant
| Design | Round |
|---|---|
| Based on the standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us – Listed (OL) |
| CE mark (see declaration of conformity)Â | to EU directive for EMC |
| KC mark | KC-EMV |
| Special characteristics | Oil resistant |
| Materials note | Conforms to RoHSHalogen-free |
| Measured variable | Rotation angle |
| Measuring principle | Hall magnetic |
| Sensing range | > 270 deg |
| Ambient temperature | ‘-20 … 70 °C |
| Typical scanning interval | 3 ms |
| Switch output | 2 x PNP or 2 x NPN switchable |
