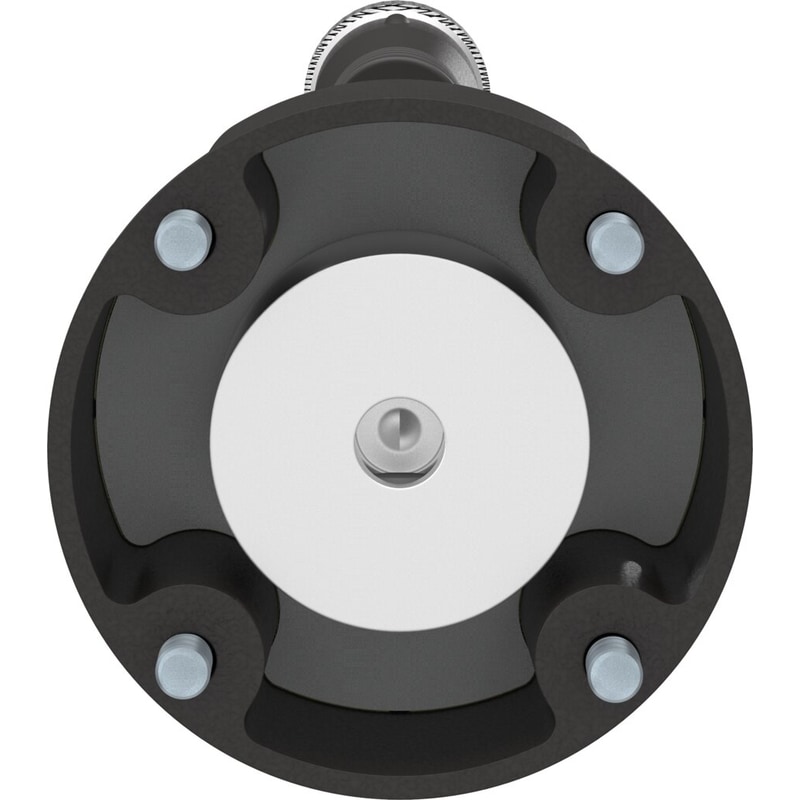

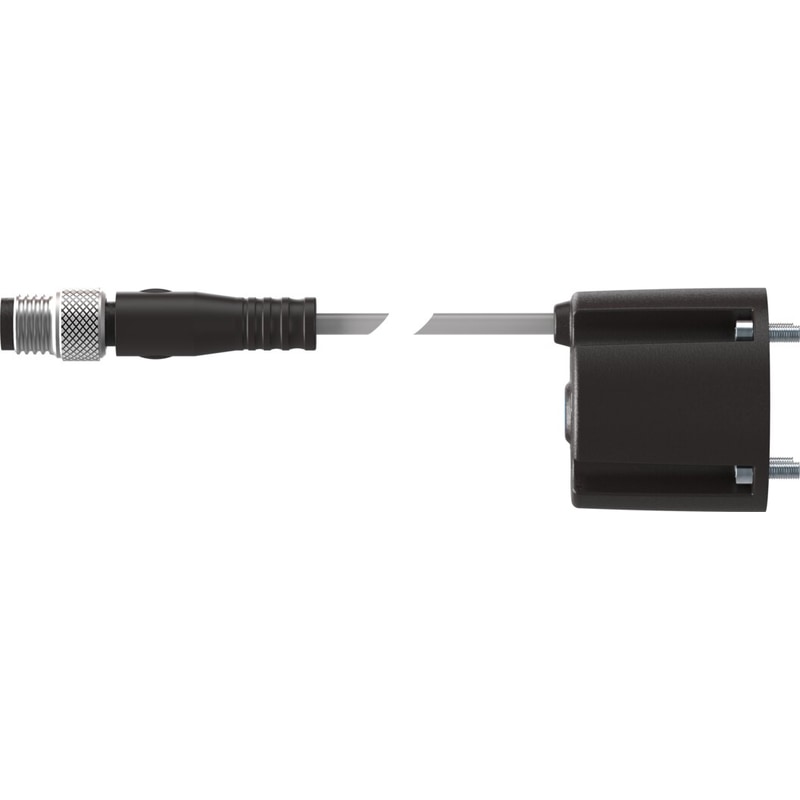

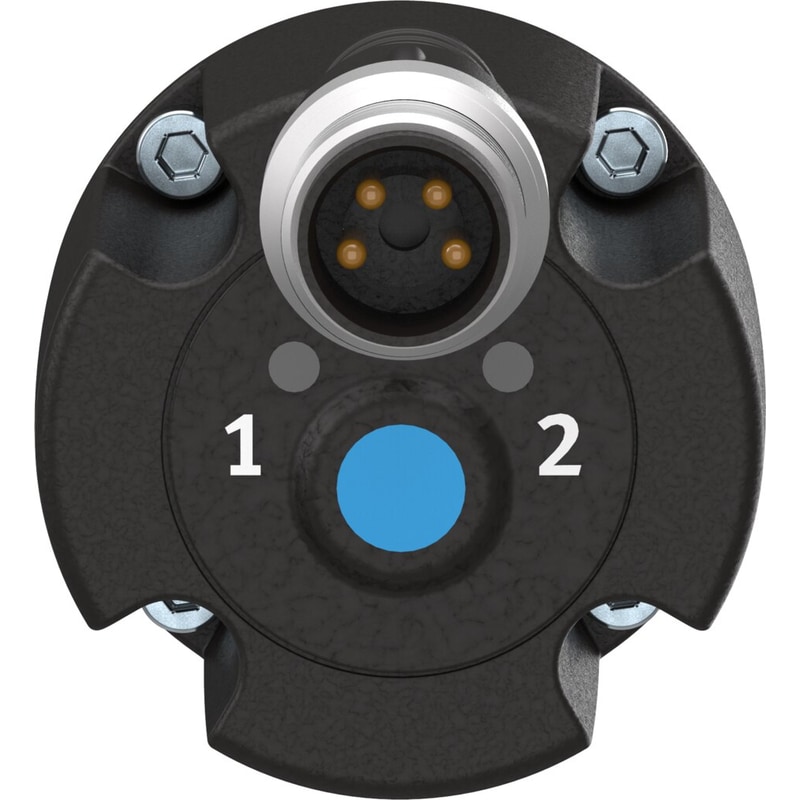

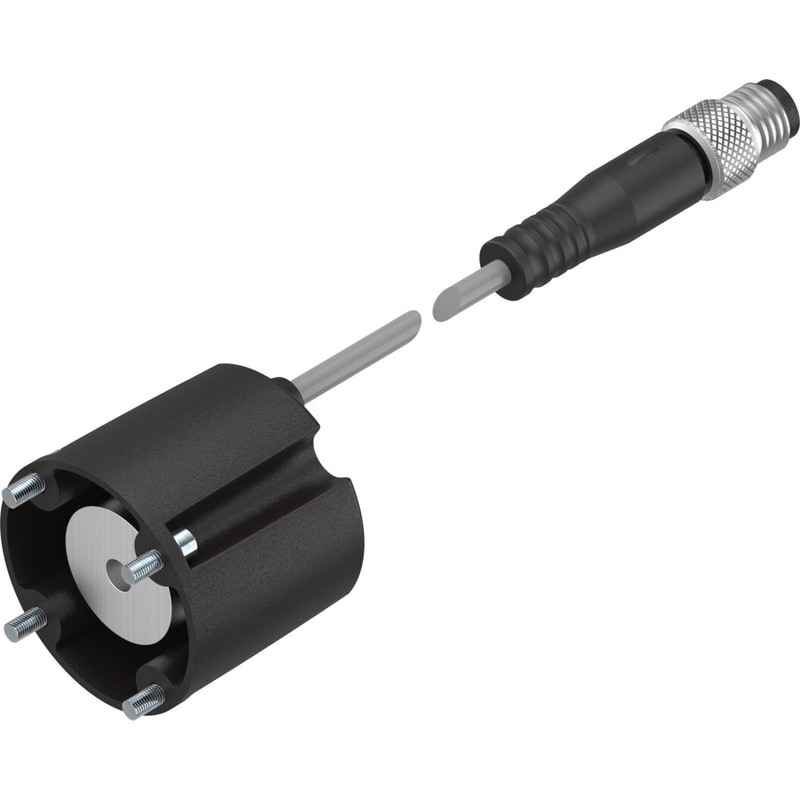

SRBS-Q12-6-E270-EP-1-S-M8

$116.72

SKU: 2619969
UNSPSC: 41111926
GTIN: 4052568265410

SKU: 2619969 Category: Tag: Brand:

position sensor SRBS-Q12-6-E270-EP-1-S-M8 is used to detect the rotation of the shaft for quarter turn actuators, sensing is magnetic and contactless. Design=Round, Based on the standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant

Design Round
Based on the standard EN 60947-5-2
Authorisation RCM Markc UL us – Listed (OL)
CE mark (see declaration of conformity) to EU directive for EMC
KC mark KC-EMV
Special characteristics Oil resistant
Materials note Conforms to RoHSHalogen-free
Measured variable Rotation angle
Measuring principle Hall magnetic
Sensing range > 270 deg
Ambient temperature ‘-20 … 70 °C
Typical scanning interval 3 ms
Switch output 2 x PNP or 2 x NPN switchable
Design

Round

Based on the standard

EN 60947-5-2

Authorisation

RCM Markc UL us – Listed (OL)

CE mark (see declaration of conformity)

to EU directive for EMC

KC mark

KC-EMV

Special characteristics

Oil resistant

Materials note

Conforms to RoHSHalogen-free

Measured variable

Rotation angle

Measuring principle

Hall magnetic

Sensing range

> 270 deg

Ambient temperature

-20 … 70 °C

Typical scanning interval

3 ms

Switch output

2 x PNP or 2 x NPN switchable
