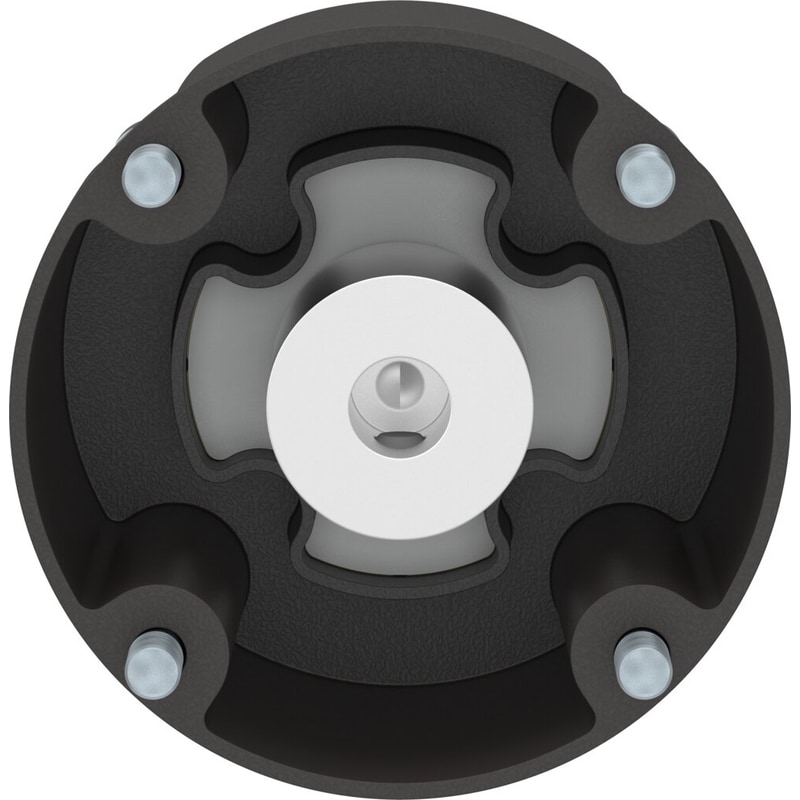

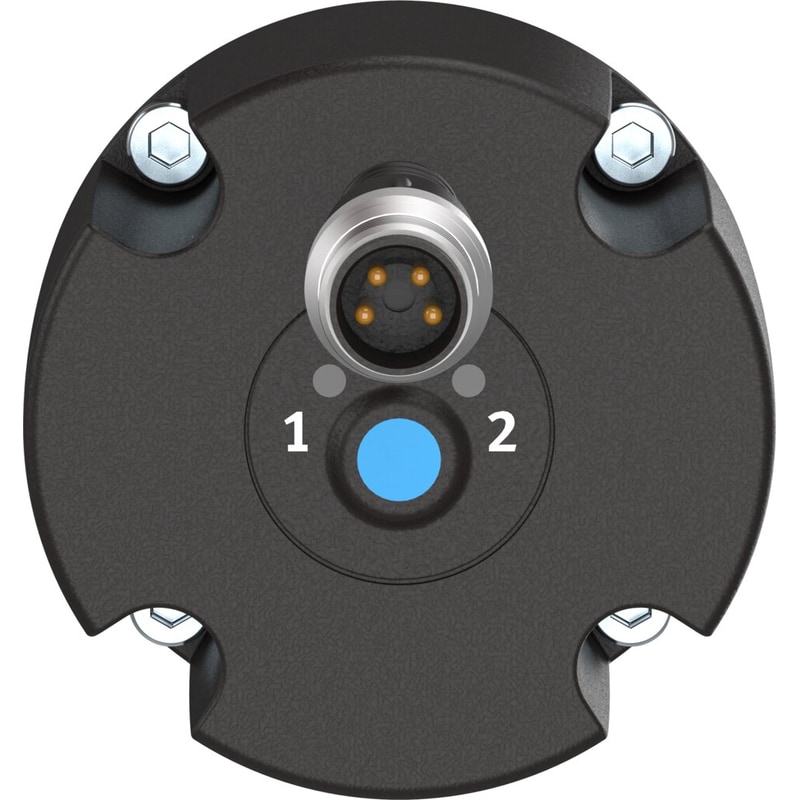

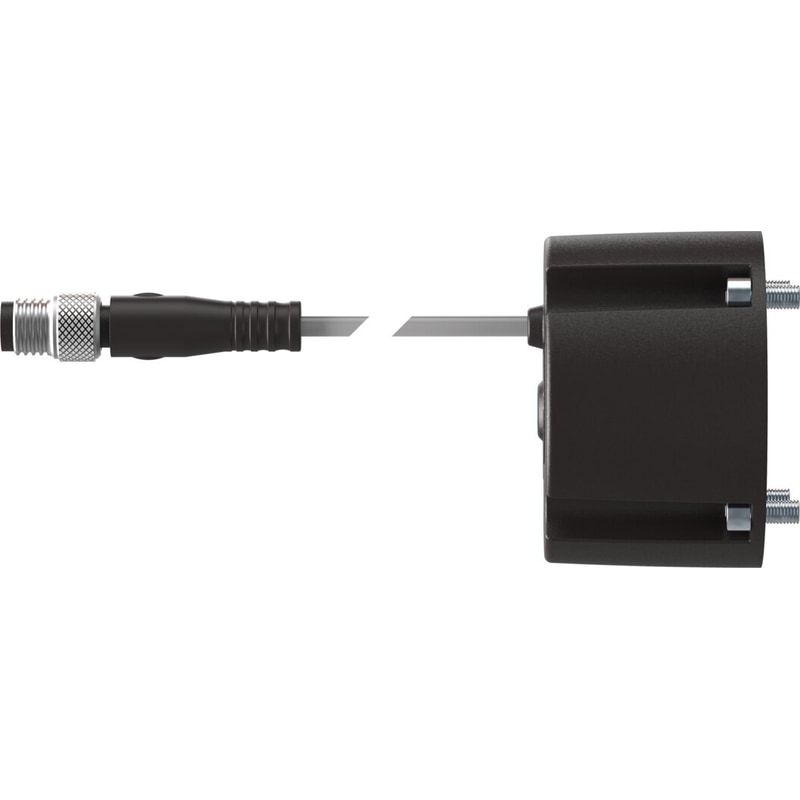

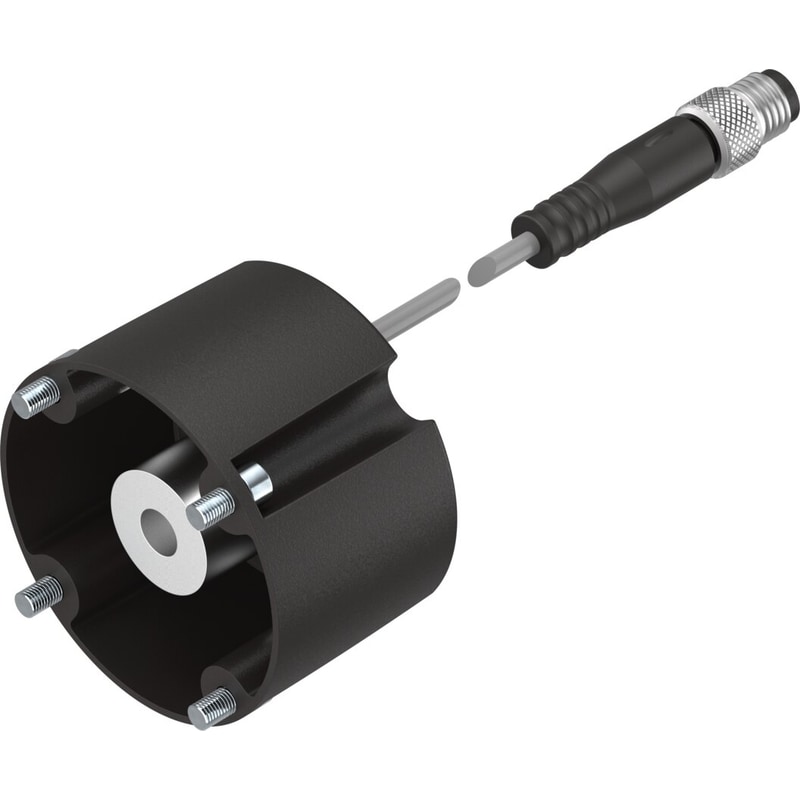

position sensor SRBS-Q1-10-E270-EP-1-S-M8 is used to detect the rotation of the shaft for quarter turn actuators, sensing is magnetic and contactless. Design=Round, Based on the standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant
Design | Round |
---|---|
Based on the standard | EN 60947-5-2 |
Authorisation | RCM Markc UL us – Listed (OL) |
CE mark (see declaration of conformity)Â | to EU directive for EMC |
KC mark | KC-EMV |
Special characteristics | Oil resistant |
Materials note | Conforms to RoHSHalogen-free |
Measured variable | Rotation angle |
Measuring principle | Hall magnetic |
Sensing range | > 270 deg |
Ambient temperature | ‘-20 … 70 °C |
Typical scanning interval | 3 ms |
Switch output | 2 x PNP or 2 x NPN switchable |
