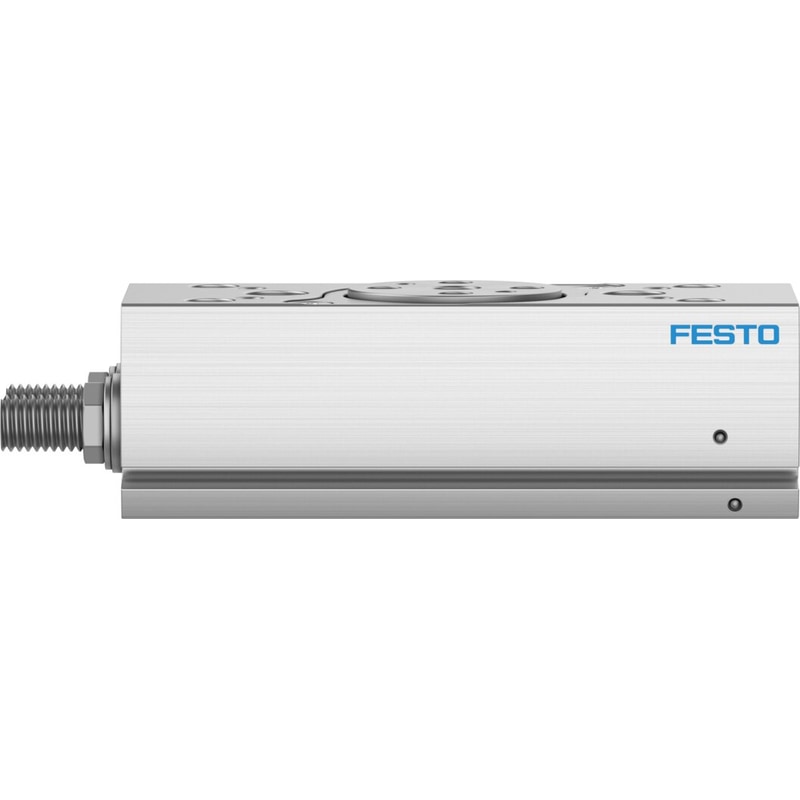

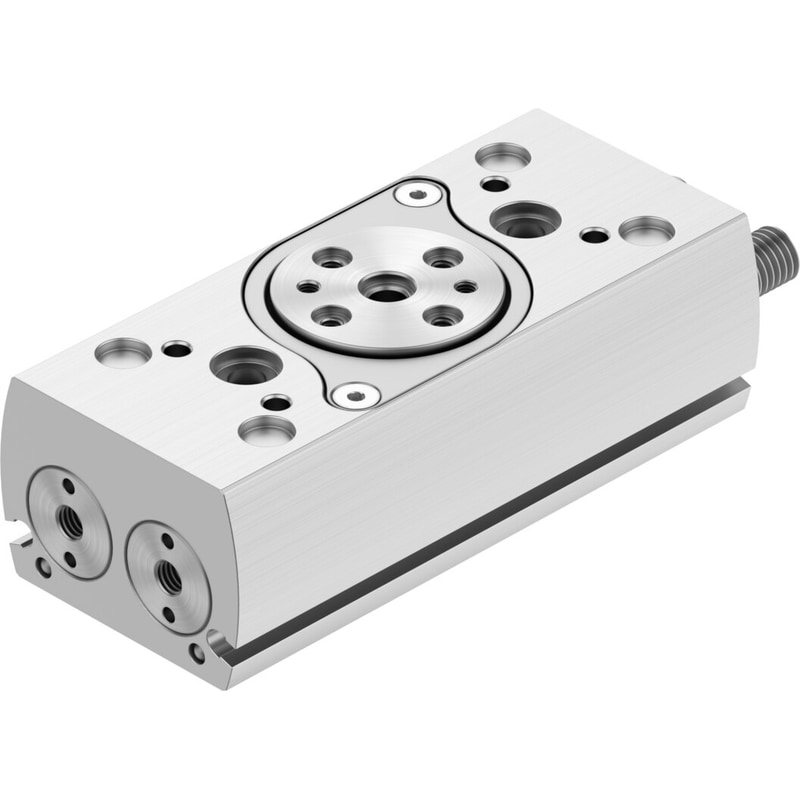

semi-rotary drive DRRD-12-180-FH-PA Size=12, Cushioning angle=32 deg, Setting range of swivel angle on both sides=+10 /-100 deg, Swivel angle=180 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Size | 12 |
|---|---|
| Cushioning angle | 32 deg |
| Setting range of swivel angle on both sides | ‘+10 /-100 deg |
| Swivel angle | 180 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | Rack and pinion |
| Position detection | For proximity sensor |
| Operating pressure | 3 … 8 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | ‘-10 … 60 °C |
