Number of pole pairs | 3 |
---|---|
Type code | EMME-AS |
Rotor position sensor | Absolute encoder, multi-turn |
Rotor position sensor interface | RS422 TTL A/B channels + zero index |
Rotor position sensor measuring principle | Capacitive |
Max. rotational speed | 3941 1/min |
Nominal rotary speed | 3000 1/min |
Continuous stall current | 4.6 A |
Insulation protection class | F |
Motor constants | 1.561 Nm/A |
Nominal operating voltage DC | 565 V |
Motor nominal power | 2000 W |
DC nominal voltage | 565 V |
Motor nominal current | 4.1 A |
Typical rotor position sensor resolution | 12 bit |
Rotor position encoder, typical angular accuracy | 20 arcmin |
Rotor position encoder, sinusoidal/cosinusoidal periods per revolution | 16 |
Phase-phase winding resistance | 3.2 Ohm |
Winding inductance phase-phase | 12 mH |
Type of winding switch | Star inside |
Peak current | 18.4 A |
Voltage constant, phase-to-phase | 101.4 mVmin |
Rating class according to EN 60034-1 | S1 |
Corrosion resistance class (CRC) | 0 – No corrosion stress |
Storage temperature | -20 °C … 70 °C |
Relative air humidity | 0 – 90 % |
Degree of protection | IP21 |
Ambient temperature | -10 °C … 40 °C |
Certification | c UL us – Recognized (OL)RCM compliance mark |
Total output inertia moment | 6.41 kgcm² |
Nominal torque | 6.4 Nm |
Peak torque | 30 Nm |
Stall torque | 7.5 Nm |
Permissible axial shaft load | 136 N |
Permissible radial shaft load | 680 N |
MTTFd, subcomponent | 271 years, rotor position sensor |
Product weight | 7550 g |
Electrical connection technology | Plug |
Note on materials | RoHS-compliantContains paint-wetting impairment substances |
Conforms to standard | IEC 60034 |

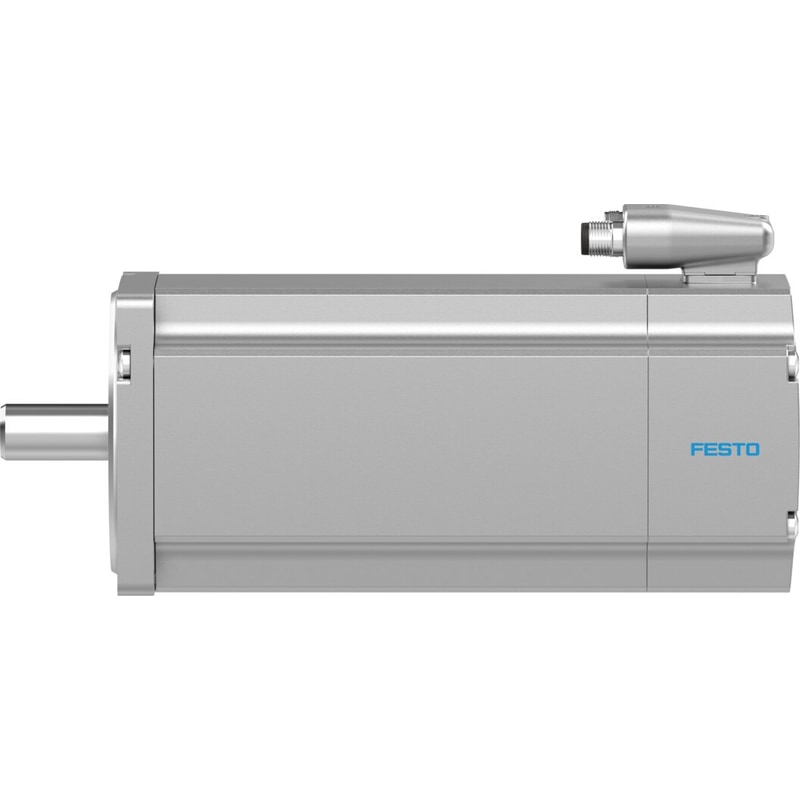

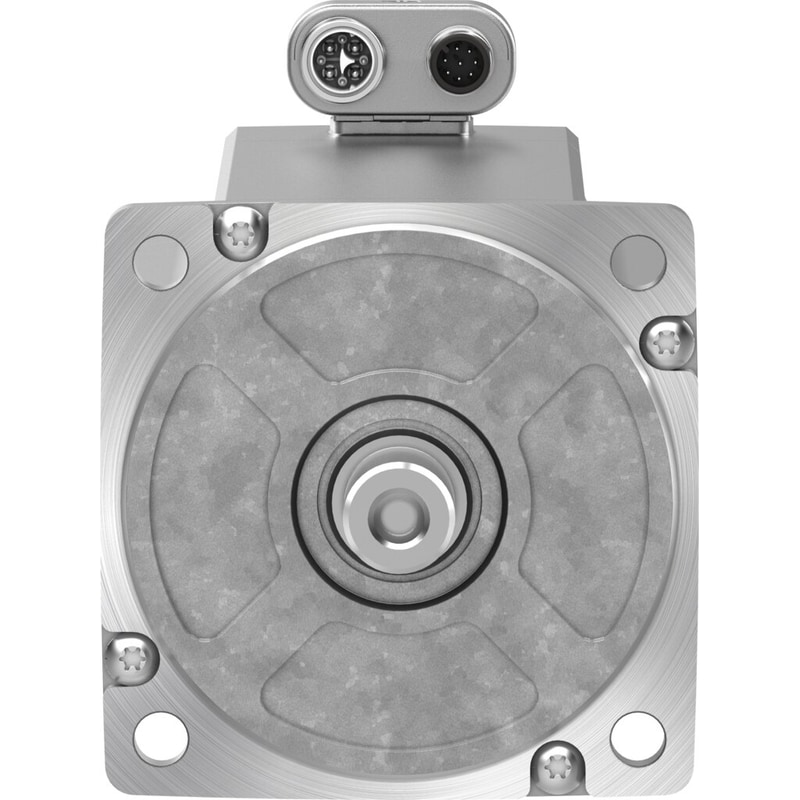

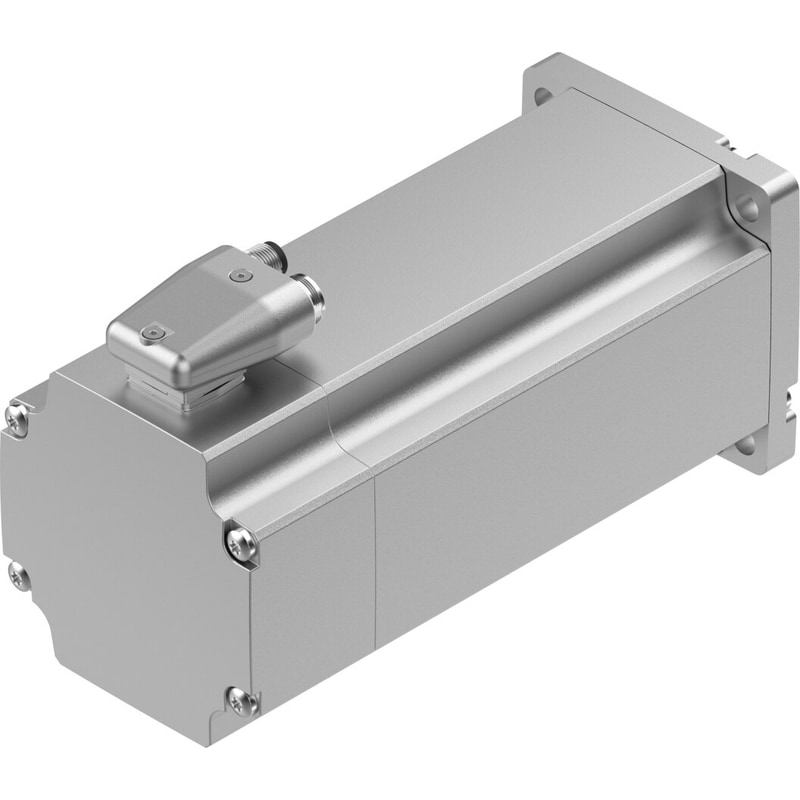

EMME-AS-100-M-HS-AM
$2,089.75
Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.
