VN-05-H-T3-PI4-VI4-RI4

Name: VN-05-H-T3-PI4-VI4-RI4
Brand: Festo
SKU: 193498
Availability: InStock

$52.06

SKU: 193498 Category: VN Tag: 2021u

Brand: Festo

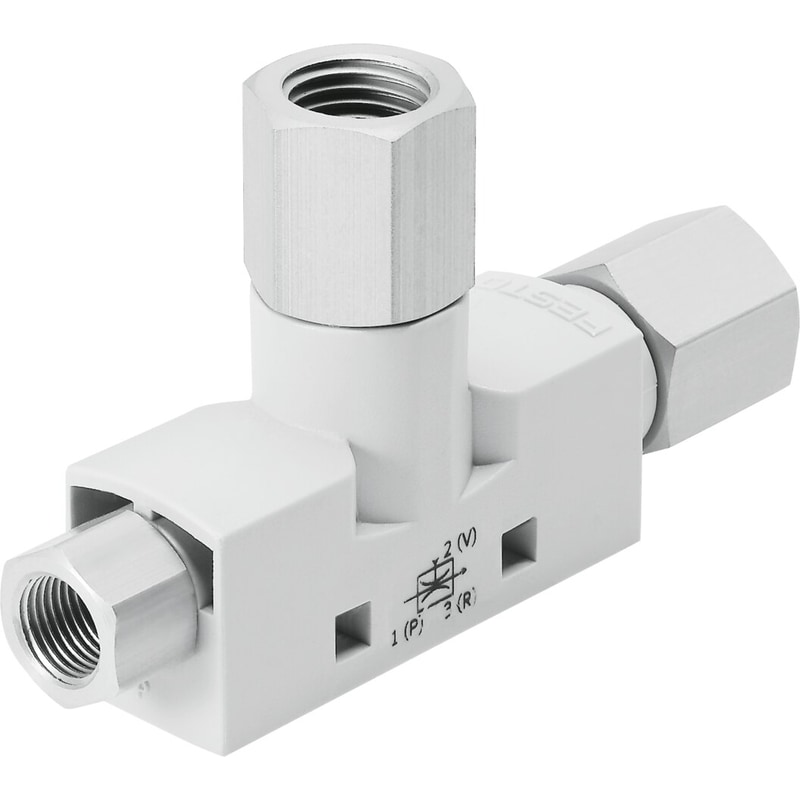

vacuum generator
VN-05-H-T3-PI4-VI4-RI4
Part number: 193498

Standard, high vacuum, width 14 mm, T shape with female thread

Nominal size, Laval nozzle	0.45 mm
Grid dimension	14 mm
Assembly position	Any
Ejector characteristic	High vacuumStandard
Design structure	T-shaped
Operating pressure for max. suction rate	2.1 bar
Operating pressure	1 … 8 bar
Operating pressure for max. vacuum	4.5 bar
Max. vacuum	0.88
Nominal operating pressure	6 bar
Max. suction rate with respect to atmosphere	6.2 l/min
Air supply time at nominal operating pressure	4.8 s
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Weight	0.047399 lbs
Dimensions	2.952756 × 0.787402 × 1.574803 in
Nominal size, Laval nozzle	0.45 mm
Max. vacuum	0.88
Max. suction flow rate against atmosphere	6.2 l/min
