VN-10-H-T3-PQ2-VQ2-RQ2

Name: VN-10-H-T3-PQ2-VQ2-RQ2
Brand: Festo
SKU: 193480
Availability: InStock

$57.81

SKU: 193480 Category: VN Tag: 2021u

Brand: Festo

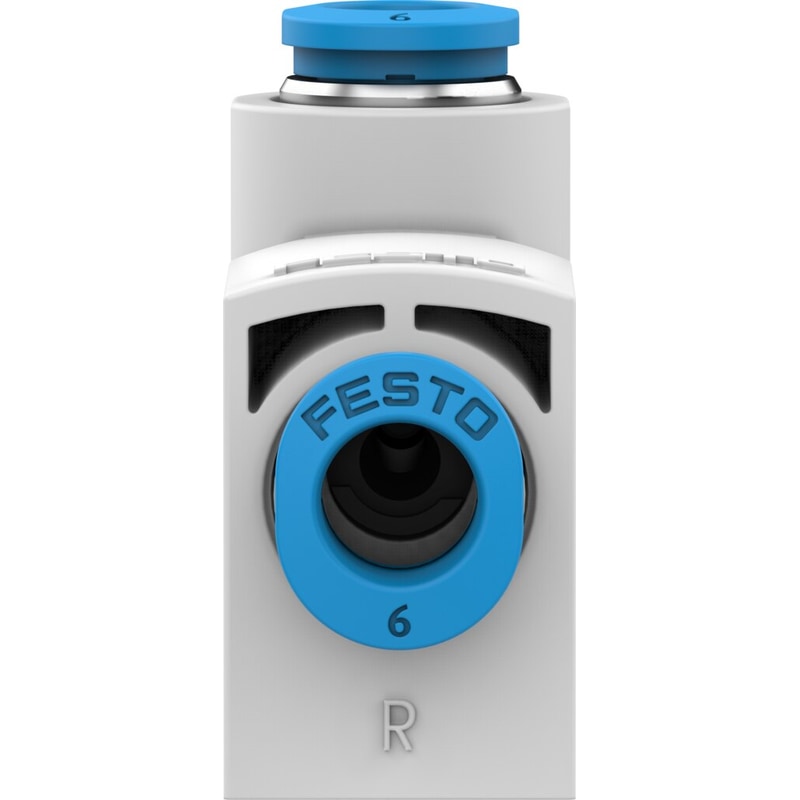

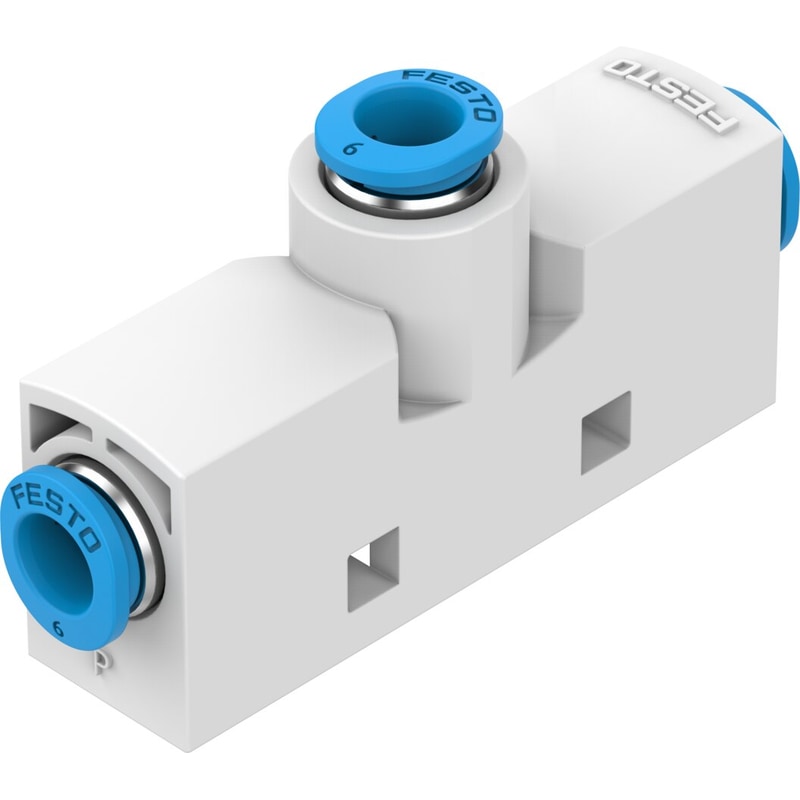

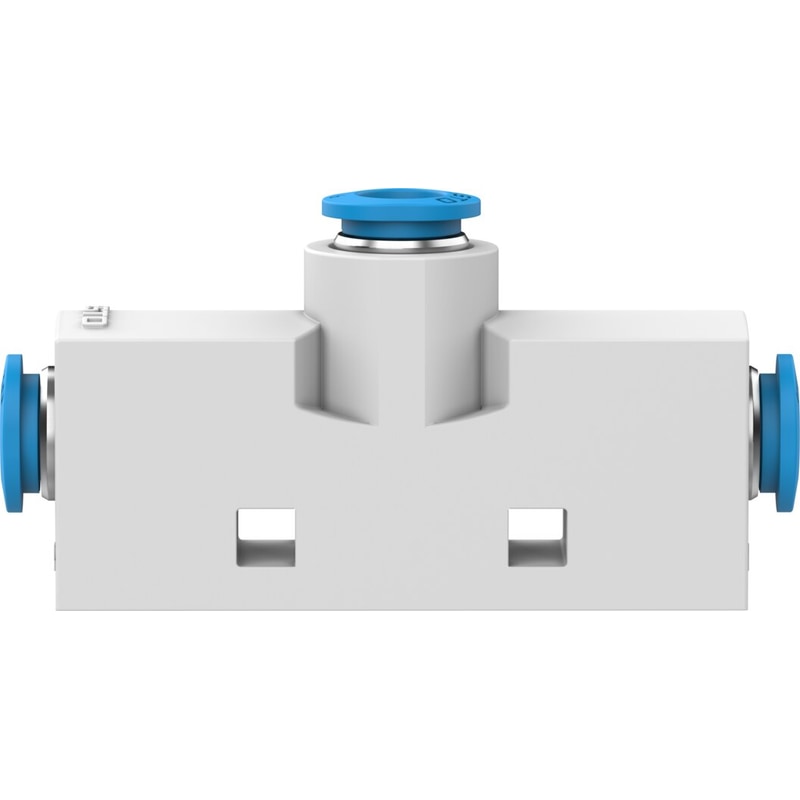

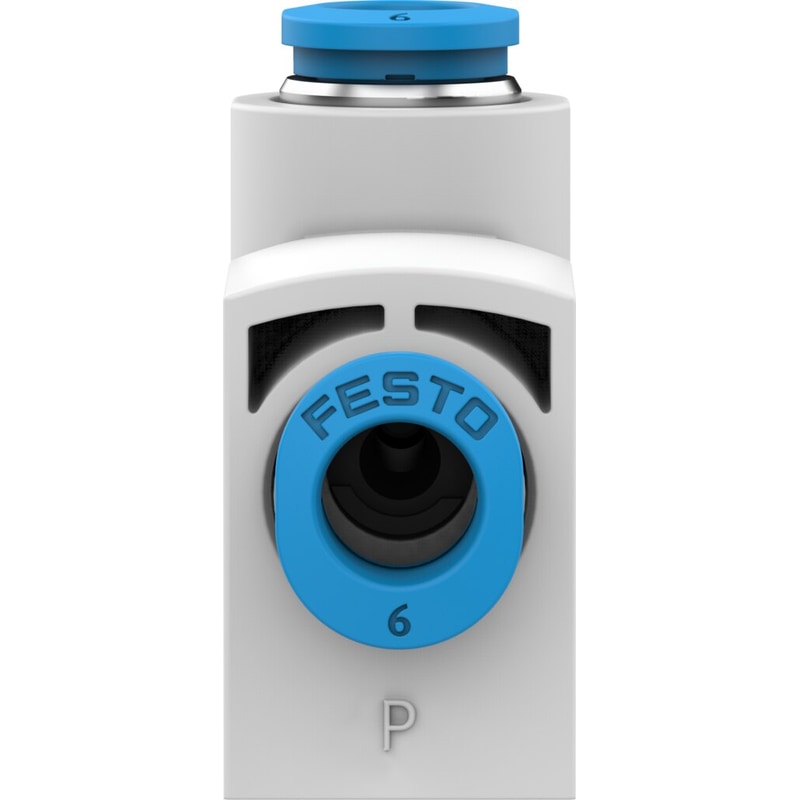

vacuum generator
VN-10-H-T3-PQ2-VQ2-RQ2
Part number: 193480

☆ Core product range

Standard, high vacuum, width 14 mm, T shape with push-in connector

Nominal size, Laval nozzle	0.95 mm
Grid dimension	14 mm
Assembly position	Any
Ejector characteristic	High vacuumStandard
Design structure	T-shaped
Operating pressure for max. suction rate	3.1 bar
Operating pressure	1 … 8 bar
Operating pressure for max. vacuum	4.5 bar
Max. vacuum	0.89
Nominal operating pressure	6 bar
Max. suction rate with respect to atmosphere	25 l/min
Air supply time at nominal operating pressure	1.1 s
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Weight	0.050265 lbs
Dimensions	1.968504 × 0.19685 × 1.181102 in
Nominal size, Laval nozzle	0.95 mm
Max. vacuum	0.89
Max. suction flow rate against atmosphere	25 l/min
