Pressure regulator LR-1-D-7-DI-MAXI

Name: Pressure regulator LR-1-D-7-DI-MAXI
Brand: Festo
SKU: 192366
Availability: InStock

$273.13

SKU: 192366 Category: LR-LRS Tag: 2021u

Brand: Festo

pressure regulator
LR-1-D-7-DI-MAXI
Part number: 192366

Classic

Directly-controlled regulator, working pressure up to 7 bar.

Modern alternatives can be found by entering the first four characters of the type code in the search field.

Size	Maxi
Series	D
Actuator lock	Rotary knob with lock
Assembly position	Any
Design structure	directly-controlled diaphragm regulator
Controller function	Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow
Pressure gauge	with pressure gauge
Operating pressure	1 … 16 bar
Pressure regulation range	0.5 … 7 bar
Max. pressure hysteresis	0.4 bar
Standard nominal flow rate	8,400 l/min
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)

Weight	3.787542 lbs
Dimensions	9.055118 × 3.149606 × 4.330709 in
Size	Maxi
Series	D
Actuator lock	Rotary knob with detent
Mounting position	Any
Structural design	Directly controlled diaphragm regulator
Controller function	Outlet pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

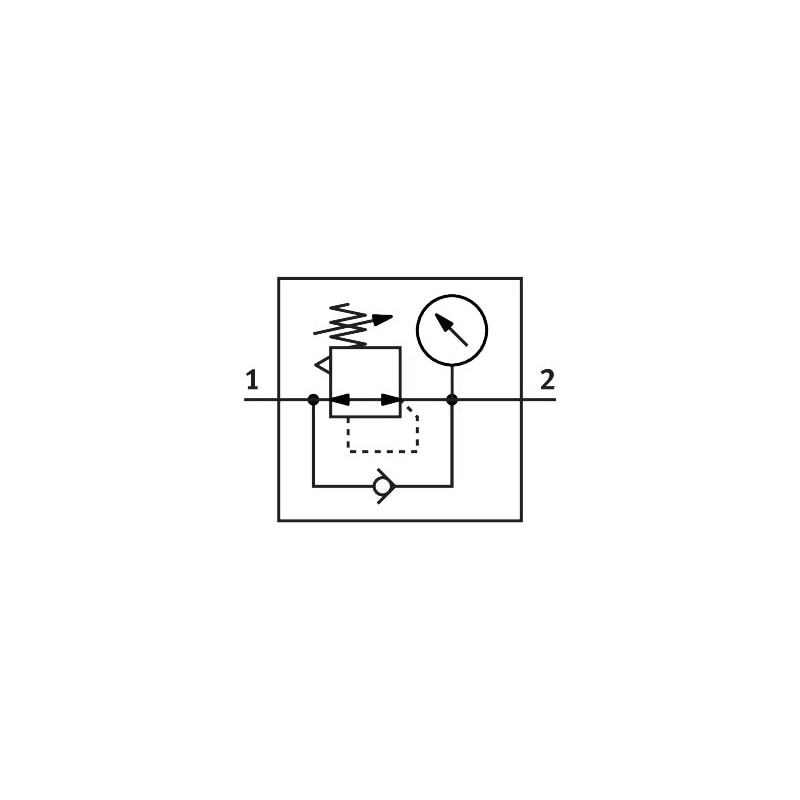

Symbol	00991558
Pressure gauge	with pressure gauge
Operating pressure	1 bar … 16 bar
Pressure regulation range	0.5 bar … 7 bar
Max. pressure hysteresis	5.8 psi
Normal nominal flow rate (normalized to DIN 1343)	8400 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] \| Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Product weight	1400 g
Type of mounting	With accessories
Pneumatic connection 1	G1
Pneumatic connection 2	G1
Note on materials	RoHS-compliant
Material of sub-base	Die-cast zinc
Seals material	NBR
Housing material	Die-cast zinc
Diaphragm material	NBR
