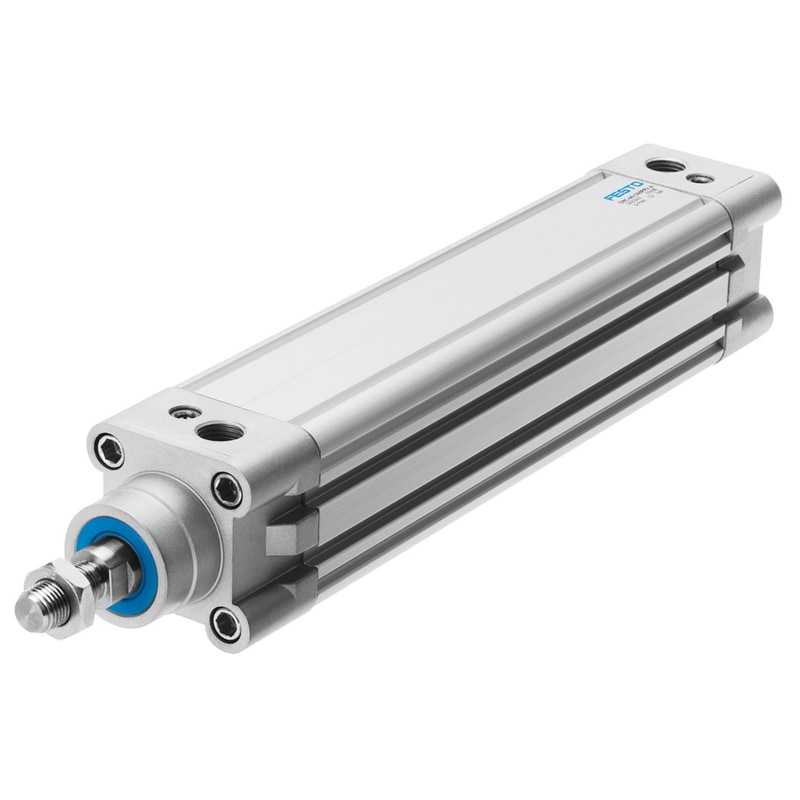

Name: DNC-50-60-PPV-A
Brand: Festo
SKU: 1922631
Availability: InStock

ISO cylinder
DNC-50-60-PPV-A
Part number: 1922631

Classic

Modern alternatives can be found by entering the first four characters of the type code in the search field.

Stroke	60 mm
Piston diameter	50 mm
Piston rod thread	M16x1,5
Cushioning	PPV: Pneumatic cushioning adjustable at both ends
Assembly position	Any
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design structure	PistonPiston rodProfile barrel
Position detection	For proximity sensor
Variants	Single-ended piston rod
Operating pressure	0.6 … 12 bar
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Weight	3.67235 lbs
Dimensions	9.448819 × 2.559055 × 2.559055 in
Mode of operation	double-acting
Piston diameter	50 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	1178 N
Stroke	60 mm
Cushioning	adjustable at both ends, Pneumatic cushioning
