| Dimensions W x L x H | 19 mm x 90 mm x 65 mm |
|---|---|
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Storage temperature | -25 °C … 70 °C |
| Relative air humidity | 5 – 95 %Non-condensing |
| Degree of protection | IP20In mounted state |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 75 g |
| Type of mounting | Plug-in module for CMMP-AS…-M3 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Mounting position | Any |
| Type code | CAMC |
| Protocol | PROFINET |
| Communication profile | FHPP |
| Baud rate | 10/100 Mbit/s (full/half) |
| Topologies | LineStarRing |
| Media redundancy | MRP |
| IP address allocation | DCPFCT |

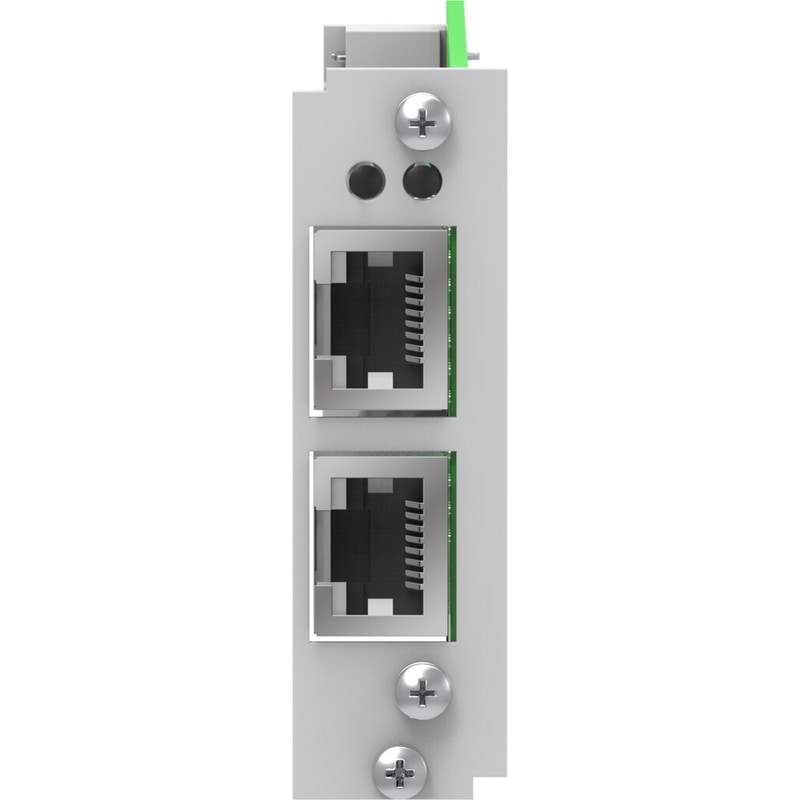

| Fieldbus interface | 2x RJ45 socket |
| Minimum cycle time | 1 ms |
| LED indicators | System faultEthernet communication activityBus errorEthernet line monitoring |
| Configuration support | GSDML |
| Parameterization | FCT |
| Additional functions | Real-time class 1IRT-compatibleSNMPLLDPMRPDCPPROFIenergyConformance class B |
CAMC

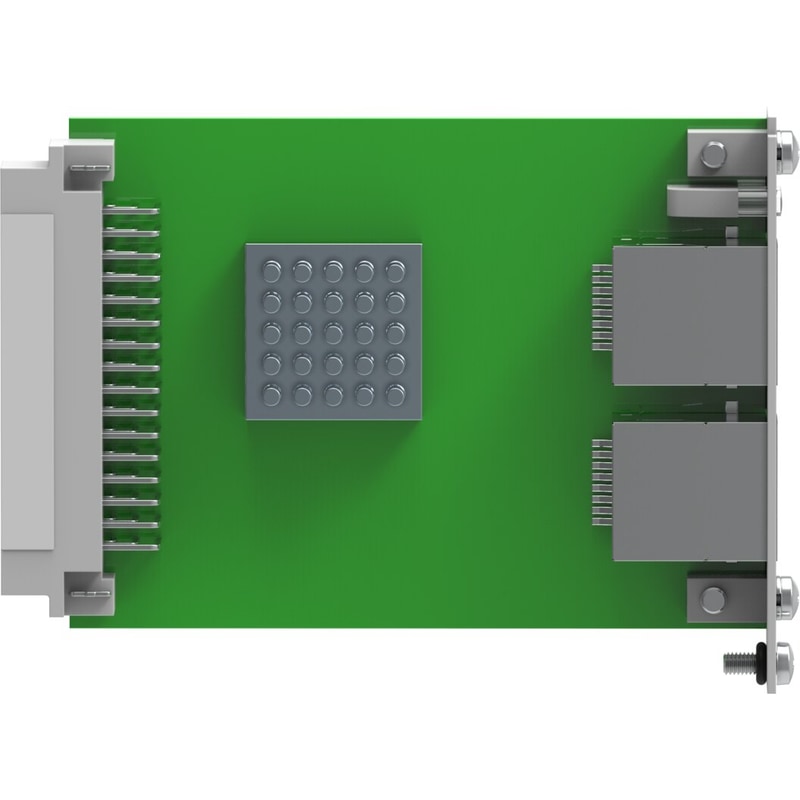

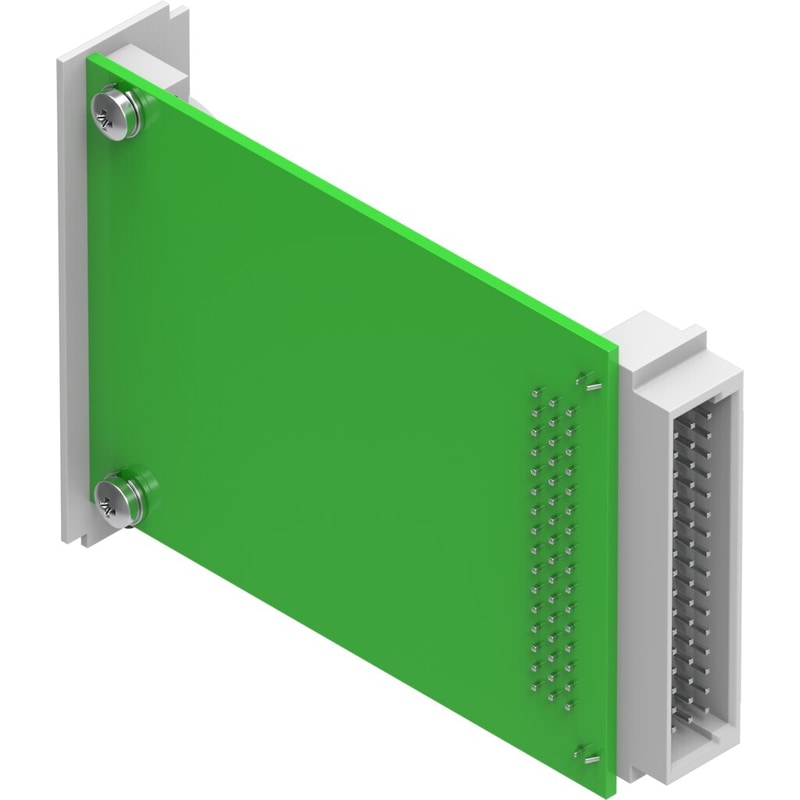

CAMC-F-PN
$529.98
The plug-in interface cards CAMC for the motor controllers CMMP-AS (actuator systems) allow various expansions such as fieldbus communication, safety functions, or additional digital I/O.
| Weight | 0.25567 lbs |
|---|---|
| Dimensions | 5.511811 × 3.740157 × 2.165354 in |
