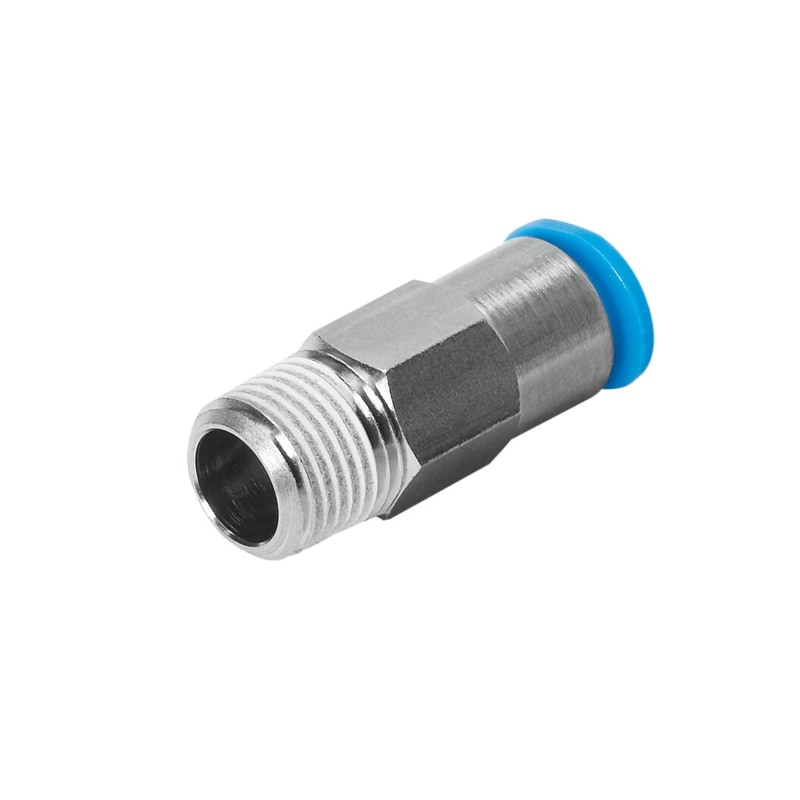

Name: QSK-1/4-1/4-U
Brand: Festo
SKU: 190712
Availability: InStock

push-in fitting, self-sealing
QSK-1/4-1/4-U
Part number: 190712

male thread with external hexagon.

Fitting Type	Male Straight w/ Shut-Off
Size	Standard
Nominal size	3.2 mm
Type of seal on screw-in stud	coating
Assembly position	Any
Container size	1
Design structure	Push/pull principle
Operating pressure complete temperature range	‘-0.95 … 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 – Low corrosion stress
Ambient temperature	‘-10 … 60 °C
Maritime classification	see certificate
Max. tightening torque	14 Nm
Product weight	22 g
connection 1	Male thread NPT1/4-18
connection 2	1/4″ outside diameter, for tubing
Colour of release ring	Grey
Materials note	Conforms to RoHS
Material housing	BrassNickel plated

Weight	0.050398 lbs
Dimensions	1.181102 × 0.629921 × 0.629921 in
Fitting Type	Male Straight w/ Shut-Off
Size	Standard
Nominal size	3.2 mm
Type of seal on screw-in stud	coating
Assembly position	Any
Container size	1
Design structure	Push/pull principle
Operating pressure complete temperature range	-0.95 … 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 – Low corrosion stress
Ambient temperature	-10 … 60 °C
Maritime classification	see certificate
Max. tightening torque	14 Nm
Product weight	22 g
connection 1	Male thread NPT1/4-18
connection 2	1/4" outside diameter, for tubing
Colour of release ring	Grey
Materials note	Conforms to RoHS
Material housing	BrassNickel plated
