HE-1/2-D-MAXI

$191.51

SKU: 186514
UNSPSC: 40141603
GTIN: 4052568014759

SKU: 186514 Category: Tag: Brand:

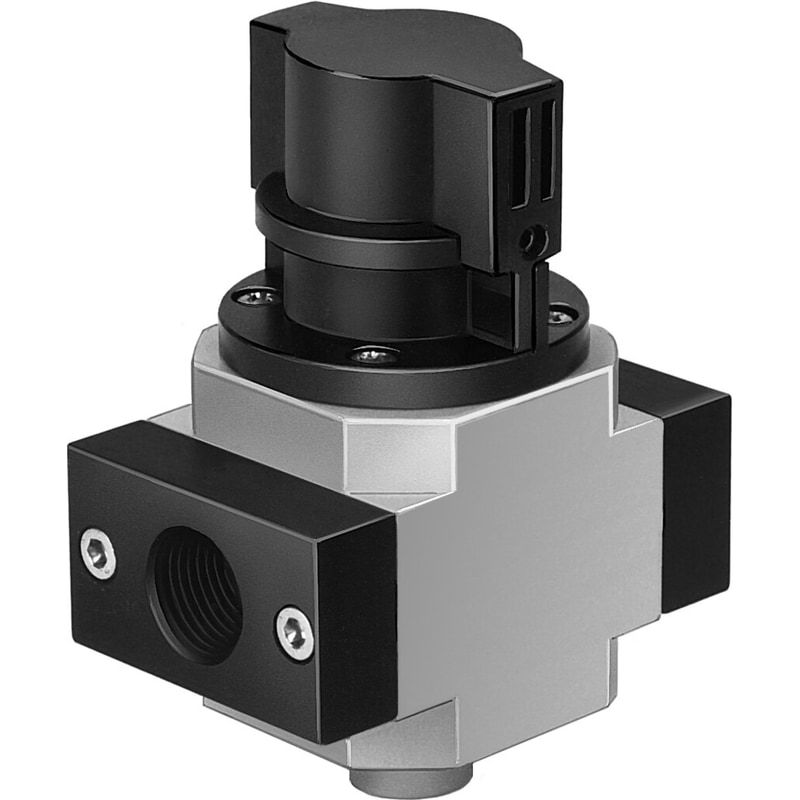

on-off valve HE-1/2-D-MAXI For service units, with threaded connecting plate Design structure=Piston slide, Type of actuation=manual, Sealing principle=soft, Exhaust-air function=not throttleable, Manual override=None

Design structure Piston slide
Type of actuation manual
Sealing principle soft
Exhaust-air function not throttleable
Manual override None
Valve function 3/2 bistable
Operating pressure 0 … 16 bar
C value 23.7 l/sbar
b value 0.32
Standard nominal flow rate 5,600 l/min
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 – Moderate corrosion stress
Design structure

Piston slide

Type of actuation

manual

Sealing principle

soft

Exhaust-air function

not throttleable

Manual override

None

Valve function

3/2 bistable

Operating pressure

0 … 16 bar

C value

23.7 l/sbar

b value

0.32

Standard nominal flow rate

5,600 l/min

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

2 – Moderate corrosion stress
