| Size | Maxi |
|---|---|
| Maritime classification | See certificate |
| Type code | LFR |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Fully automatic |
| Design | Branching moduleFilter regulator with pressure gauge |
| Max. condensate volume | 80 ml |
| Bowl guard | Metal bowl guard |

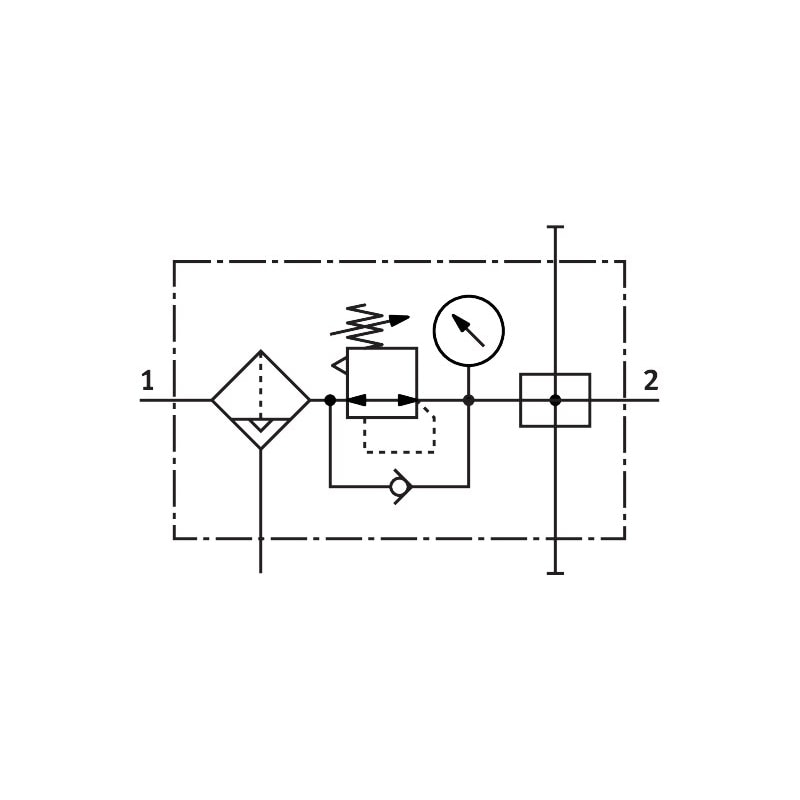

| Symbol | 991776 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 bar … 12 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 9200 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4]Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 2400 g |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
LFR-1/2-D-MAXI-KA-A
$676.68
