| Size | Midi |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Fully automatic |

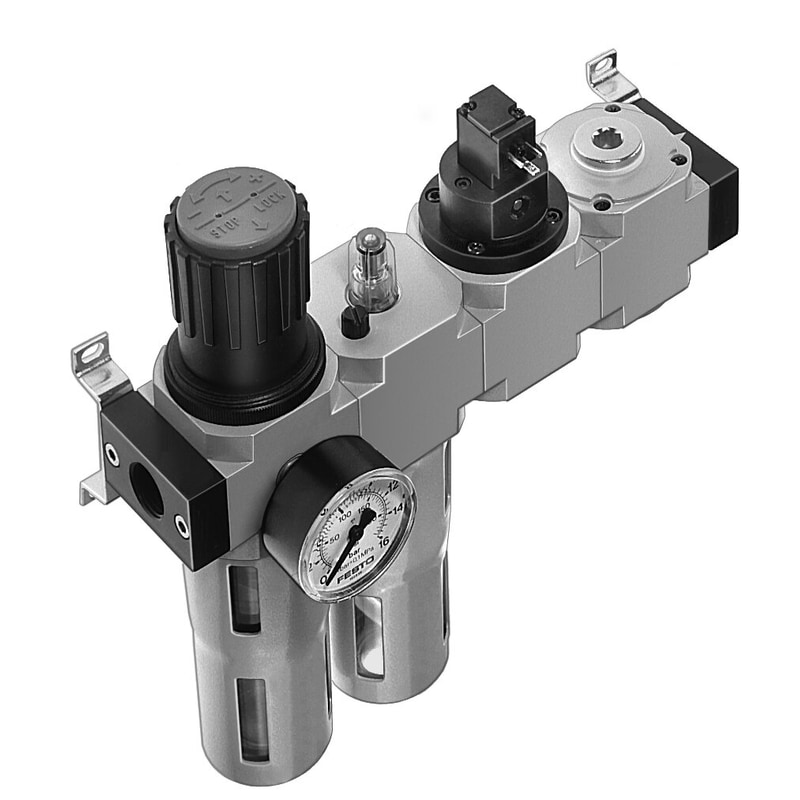

| Design | Safety start-up valveFilter regulator with pressure gaugeShut off valveProportional standard oil mist lubricator |
| Max. condensate volume | 43 ml |
| Bowl guard | Metal bowl guard |

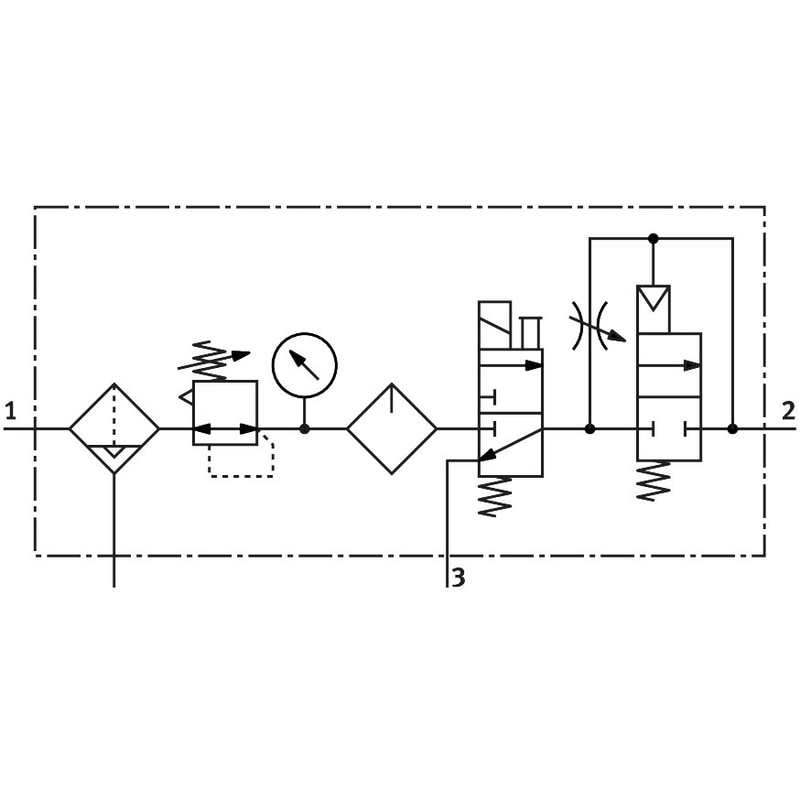

| Symbol | 991564 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 3 bar … 12 bar |
| Pressure regulation range | 2.5 bar … 12 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 1590 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-]Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 2800 g |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Weight | 6.527667 lbs |
|---|---|
| Dimensions | 12.204724 × 3.937008 × 10.23622 in |
| Size | Midi |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Fully automatic |
| Structural design | On/off valve, Filter regulator with pressure gauge, Proportional standard oil mist lubricator, Safety start-up valve |
| Max. condensate volume | 43 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 00991564 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 43.5 psi … 174 psi |
| Pressure regulation range MPa | 0.25 MPa … 1.2 MPa |
| Pressure regulation range | 2.5 bar … 12 bar |
| Pressure regulation range psi | 36.25 psi … 174 psi |
| Max. pressure hysteresis | 5.8 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1590 l/min |
| Operating medium | Inert gas |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-], Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 2800 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
