HGWM-08-EO-G8

$253.83

SKU: 185695
UNSPSC: 23153025
GTIN: 4052568144593

SKU: 185695 Category: Tag: Brand:

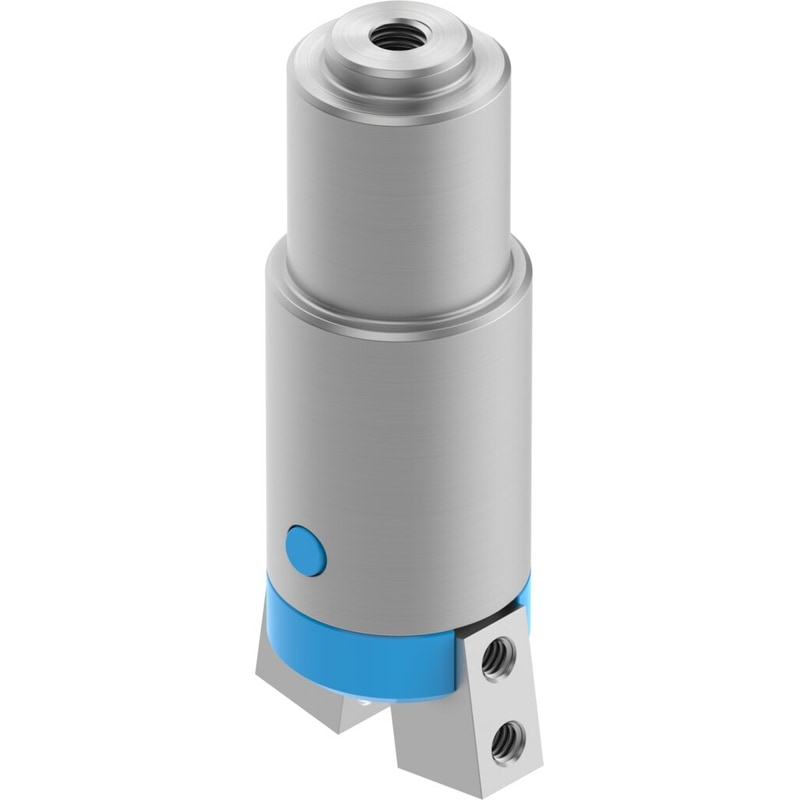

angle gripper HGWM-08-EO-G8 Micro, with clamping spigot. Size=8, Max. angular gripper jaw backlash ax,ay=0,5 deg, Max. gripper jaw backlash Sz=0,03 mm, Max. opening angle=17 deg, Repetition accuracy, gripper=<= 0,02 mm

Size 8
Max. angular gripper jaw backlash ax,ay 0.5 deg
Max. gripper jaw backlash Sz 0.03 mm
Max. opening angle 17 deg
Repetition accuracy, gripper <= 0.02 mm
Number of gripper fingers 2
Mode of operationsingle-actingopen
Gripper function Angle
Design structure Inclined plane
Position detection No
Operating pressure 2 … 8 bar
Max. operating frequency of gripper 4 Hz
Min. opening time at 6 bar 2.7 ms
Size

8

Max. angular gripper jaw backlash ax,ay

0.5 deg

Max. gripper jaw backlash Sz

0.03 mm

Max. opening angle

17 deg

Repetition accuracy, gripper

<= 0.02 mm

Number of gripper fingers

2

Mode of operation

single-actingopen

Gripper function

Angle

Design structure

Inclined plane

Position detection

No

Operating pressure

2 … 8 bar

Max. operating frequency of gripper

4 Hz

Min. opening time at 6 bar

2.7 ms
