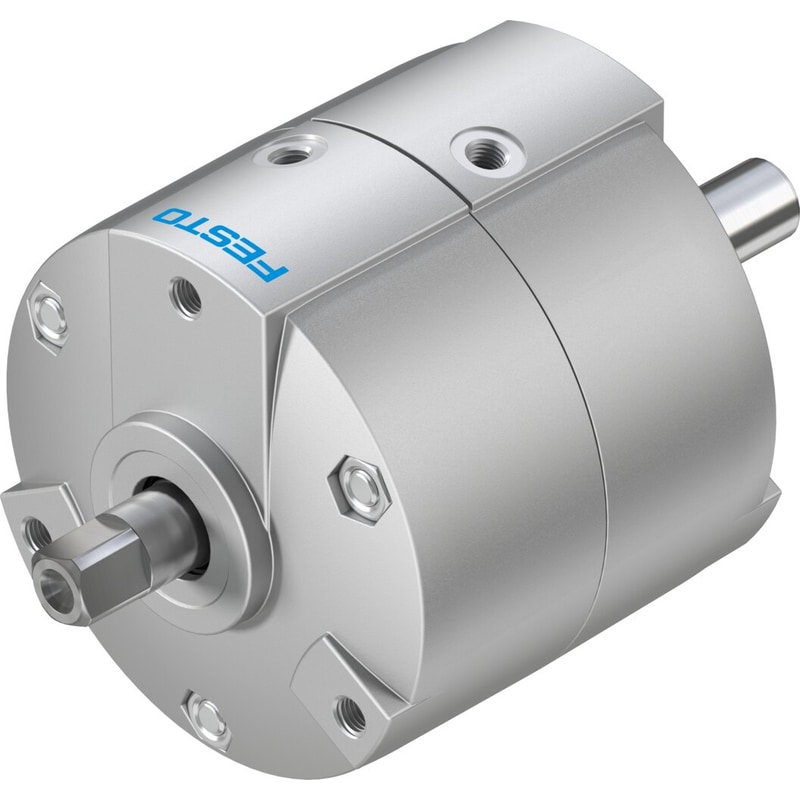

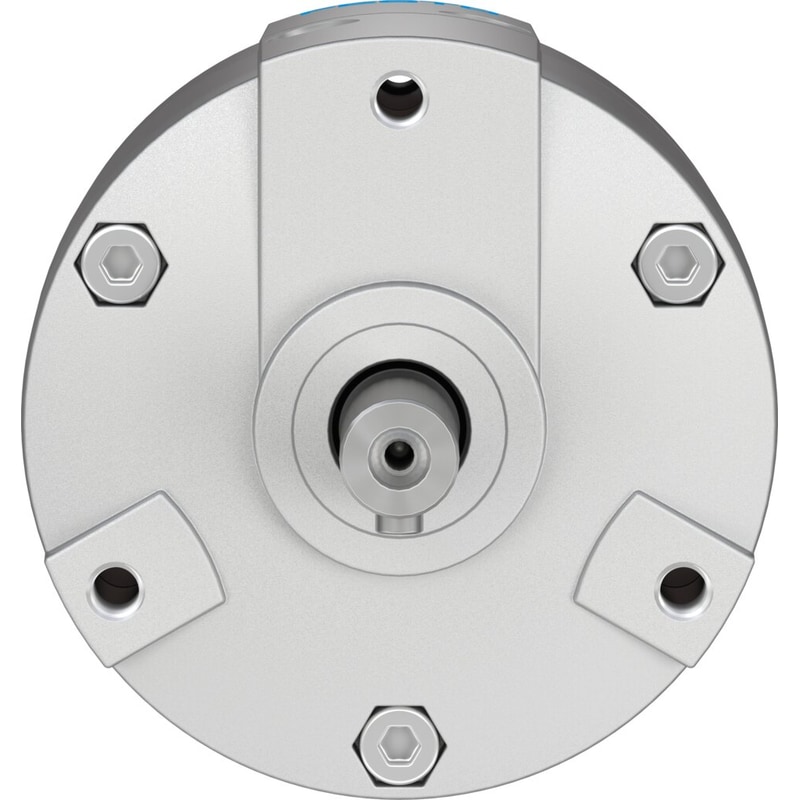

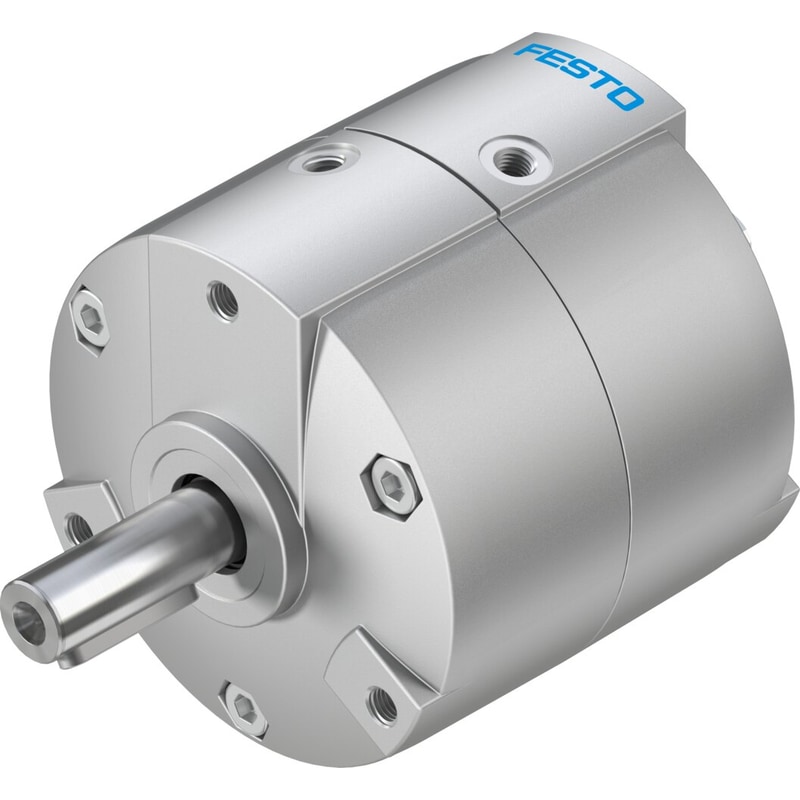

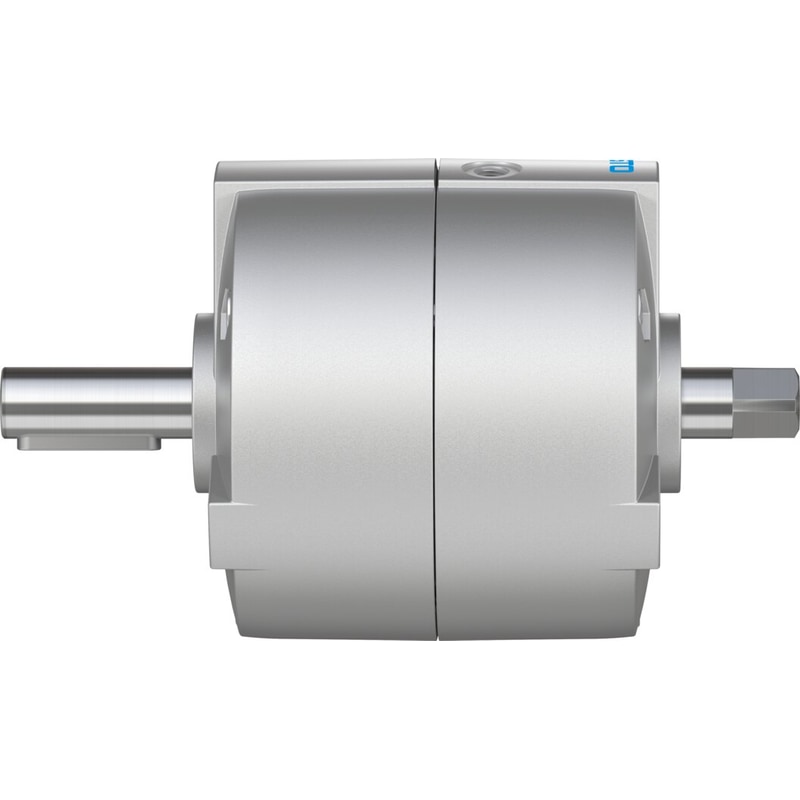

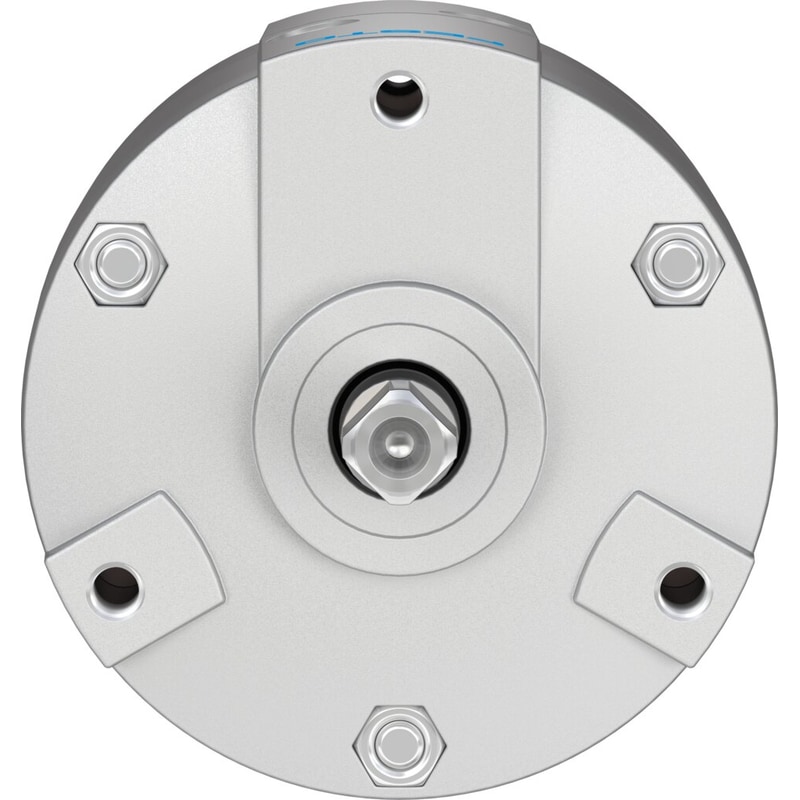

semi-rotary drive DRVS-25-90-P Size=25, Cushioning angle=0,5 deg, Swivel angle=0 – 90 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Weight | 1.123178 lbs |
|---|---|
| Dimensions | 5.787402 × 3.070866 × 2.755906 in |
| Size | 25 |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 5 Nm |
| Swivel angle | 0 deg – 90 deg |
| Pneumatic connection | M5 |
| Permissible mass moment of inertia | 0.012 kgm? |
