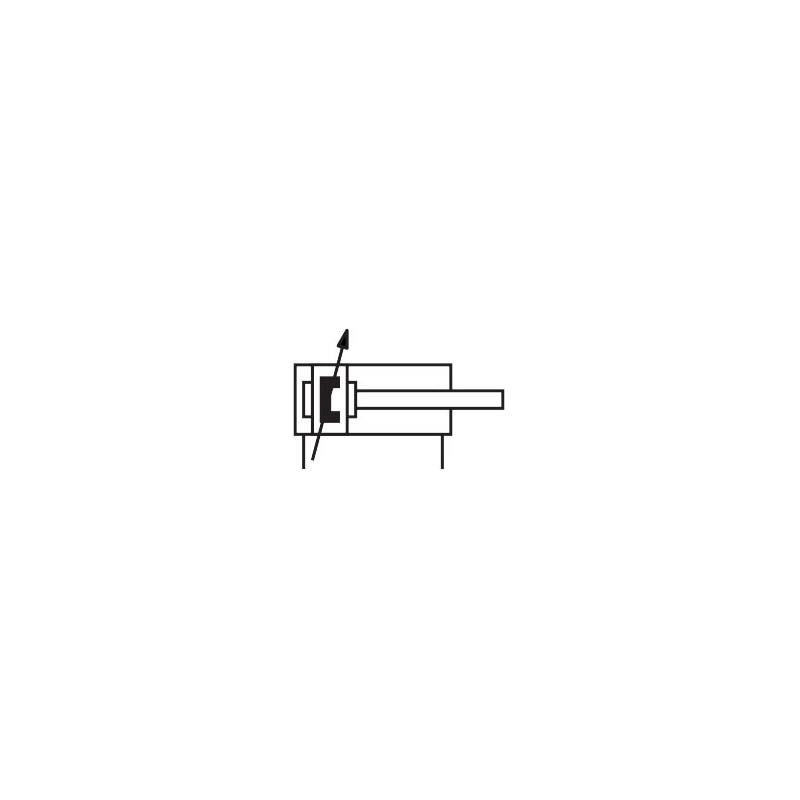

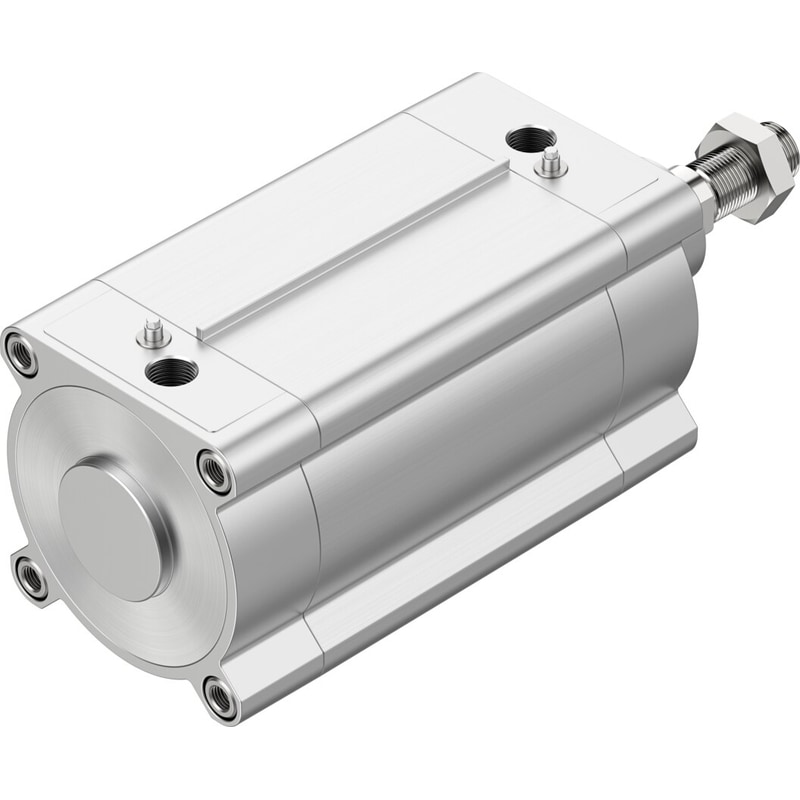

ISO cylinder DSBF-C-125-125-PPVA-N3-R Stroke=125 mm, Piston diameter=125 mm, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any, Conforms to standard=ISO 15552
Stroke | 125 mm |
---|---|
Piston diameter | 125 mm |
Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
Assembly position | Any |
Conforms to standard | ISO 15552 |
Piston-rod end | Male thread |
Design structure | PistonPiston rodProfile barrel |
Position detection | For proximity sensor |
Operating pressure | 0.6 … 10 bar |
Mode of operation | double-acting |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Corrosion resistance classification CRCÂ | 3 – High corrosion stress |
