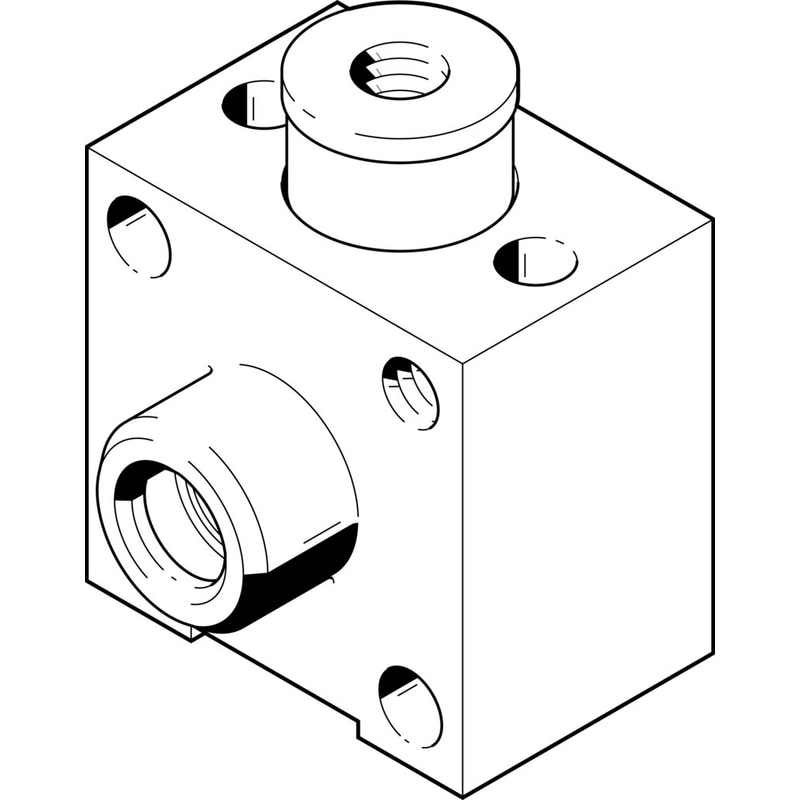

| Type code | KPE |
|---|---|
| Mounting position | Any |
| Clamping type with active direction | Clamped by spring, released by compressed airBoth sides |
| Design | Hinge-down panes |
| Variants | Piston rod at one end |
| Operating pressure | ≤ 10 bar |
| Min. release pressure | 3 bar |
| Round material to be clamped | 4 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 80 °C |
| Static holding force | 80 N |
| Product weight | 100 g |
| Seals material | TPE-U(PU)NBR |
| Material of spring | Spring steel |
| Housing material | AnodizedAluminum |
| Clamping jaws material | Brass |
| Material of piston | POM |
| Weight | 0.125663 lbs |
|---|---|
| Dimensions | 8.267717 × 1.574803 × 5.905512 in |
