For self-construction of locking units. Not certified for use in safety-relevant controllers

SKU: 178461 Category: Tag:

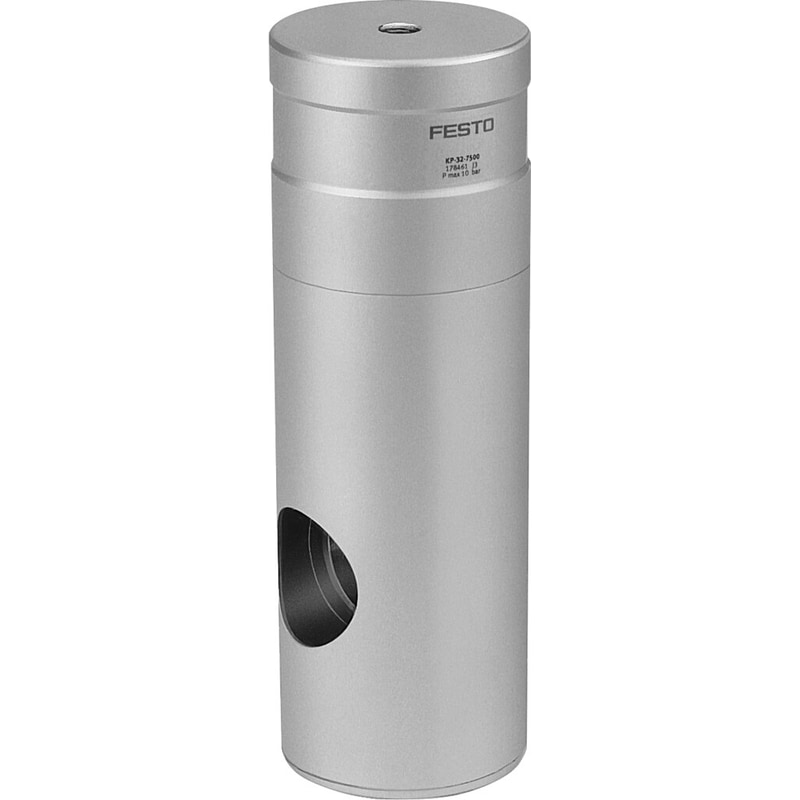

Type code KP
Mounting position Any
Clamping type with active direction Both sidesClamped by spring, released by compressed air
Design Hinge-down panes
Variants Piston rod at one end
Operating pressure ≤ 10 bar
Min. release pressure 3 bar
Round material to be clamped 32 mm
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Ambient temperature -10 °C … 80 °C
Static holding force 7500 N
Product weight 1600 g
Seals material TPE-U(PU)NBR
Material of spring Spring steel
Housing material AnodizedAluminum
Clamping jaws material Brass
Material of piston POM
