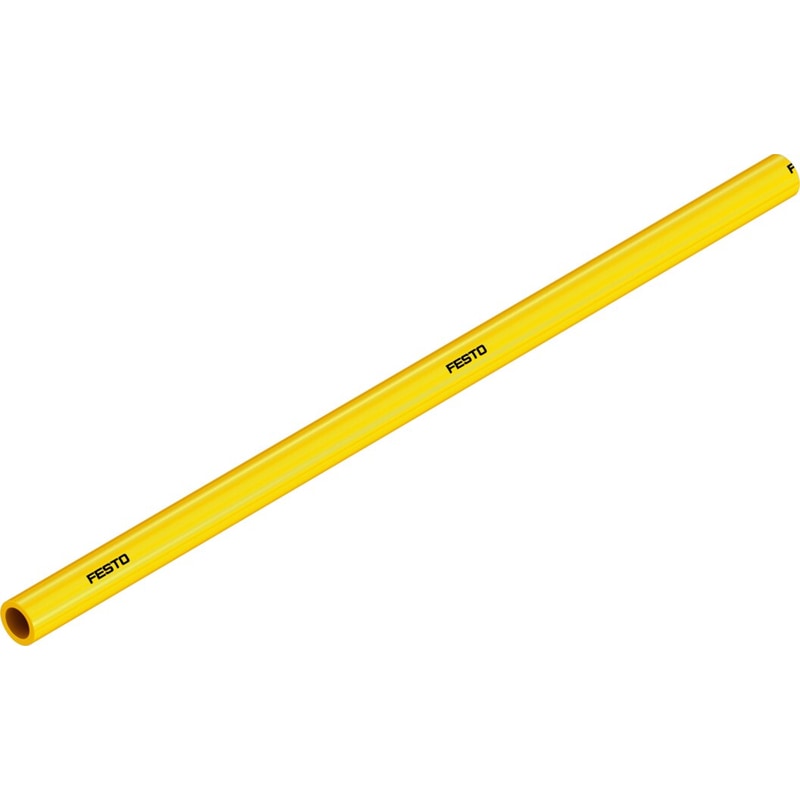

PUN-10X1,5-GE Plastic tubing (Pack of 50)


SKU: 178420 Category: Tags: ,
Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Outside diameter 10 mm
Bending radius relevant for flow rate 54 mm
Inside diameter 7 mm
Min. bending radius 28 mm
Type code PUN
Temperature-dependent operating pressure -0.95 bar … 10 bar
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test UL94 HB
Ambient temperature -35 °C … 60 °C
Certification German Technical Control Board (TÃœV)
Product weight by length 0.0489 kg/m
Pneumatic connection For plug connection outside diameter 10 mm
Color Yellow
Shore hardness D 52 +/-3
Note on materials Free of copper and PTFERoHS-compliant
Material of pneumatic tubing TPE-U(PU)
