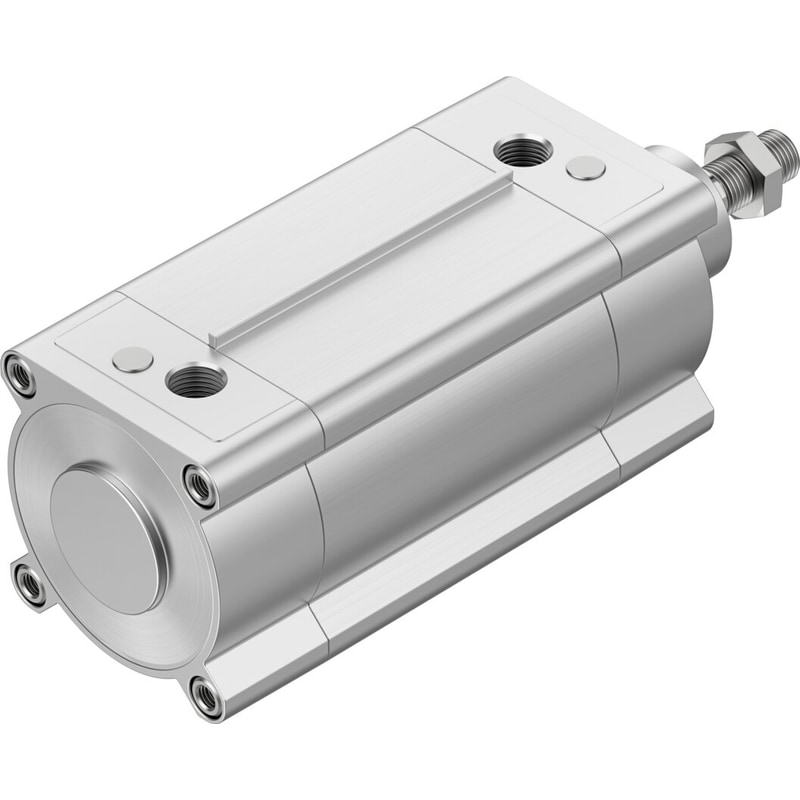

ISO cylinder DSBF-C-100-250-PPSA-N3-R Stroke=250 mm, Piston diameter=100 mm, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any, Conforms to standard=ISO 15552
| Stroke | 250 mm |
|---|---|
| Piston diameter | 100 mm |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Operating pressure | 0.6 … 12 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 3 – High corrosion stress |
