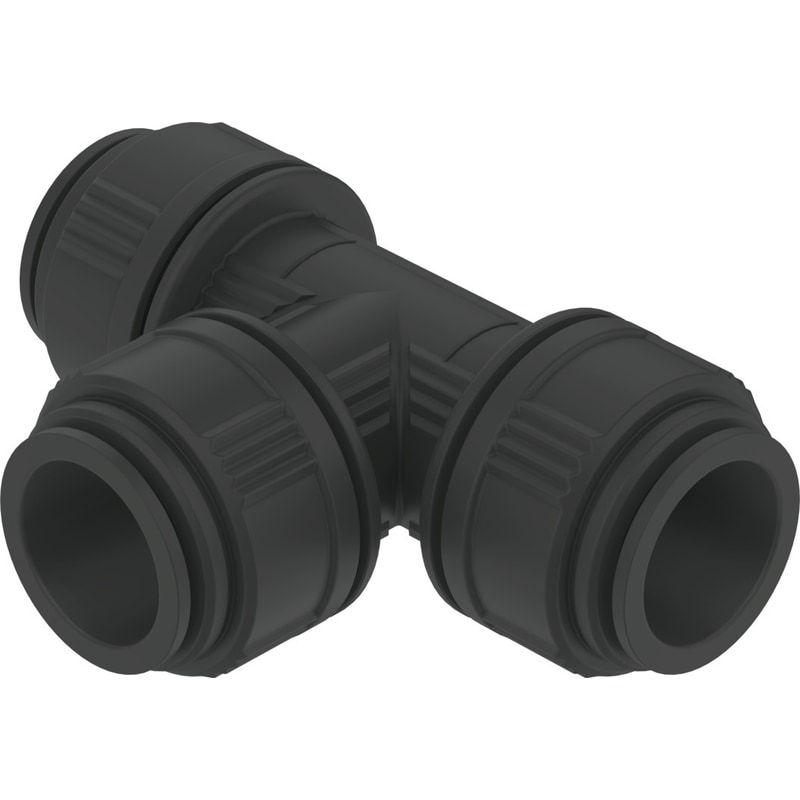

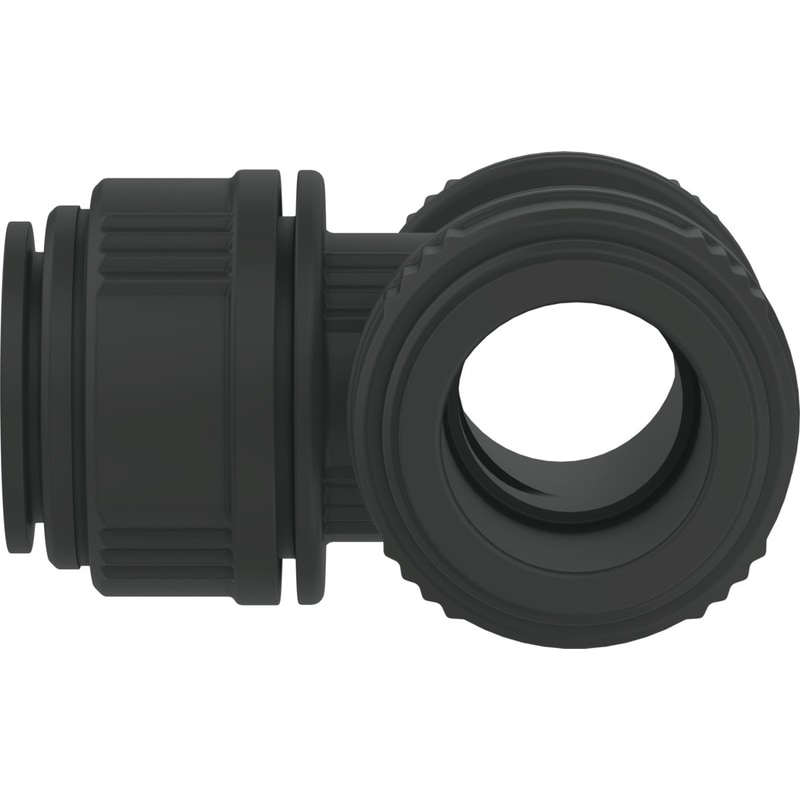

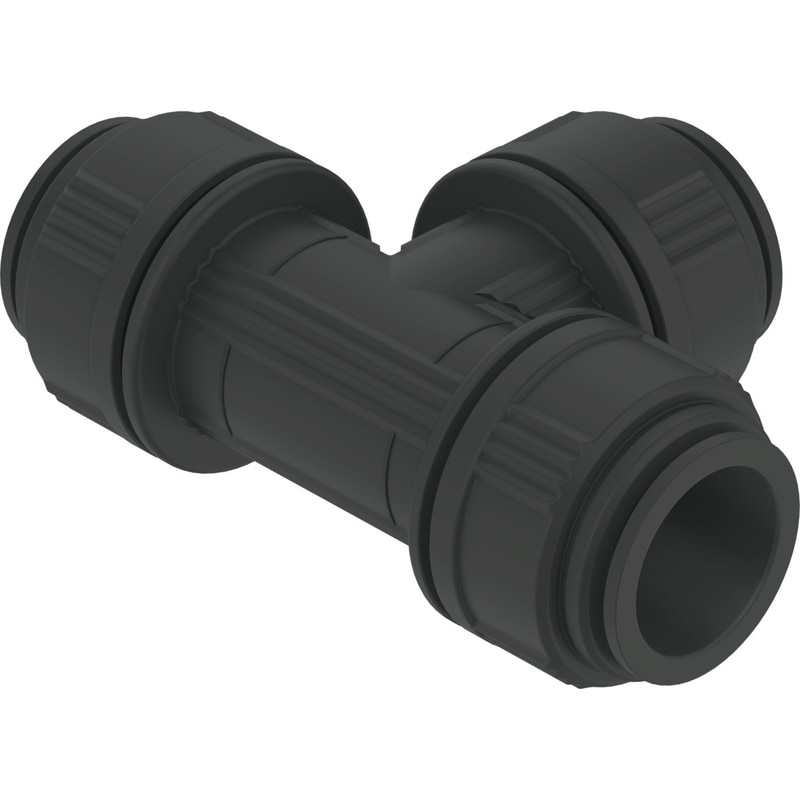

push-in T-connector CQT-22 For high flow rates. Nominal size=19,2 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 – 7 bar
| Fitting Type | Union Tee |
|---|---|
| Nominal size | 19.2 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 7 bar |
| Temperature dependent operating pressure | ‘-0.95 … 15 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | ‘-25 … 70 °C |
| Maritime classification | see certificate |
| Product weight | 66 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1Â | 22mm outside diameter, for tube/piping |
| connection 2Â | 22mm outside diameter, for tube/piping |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | POM |
