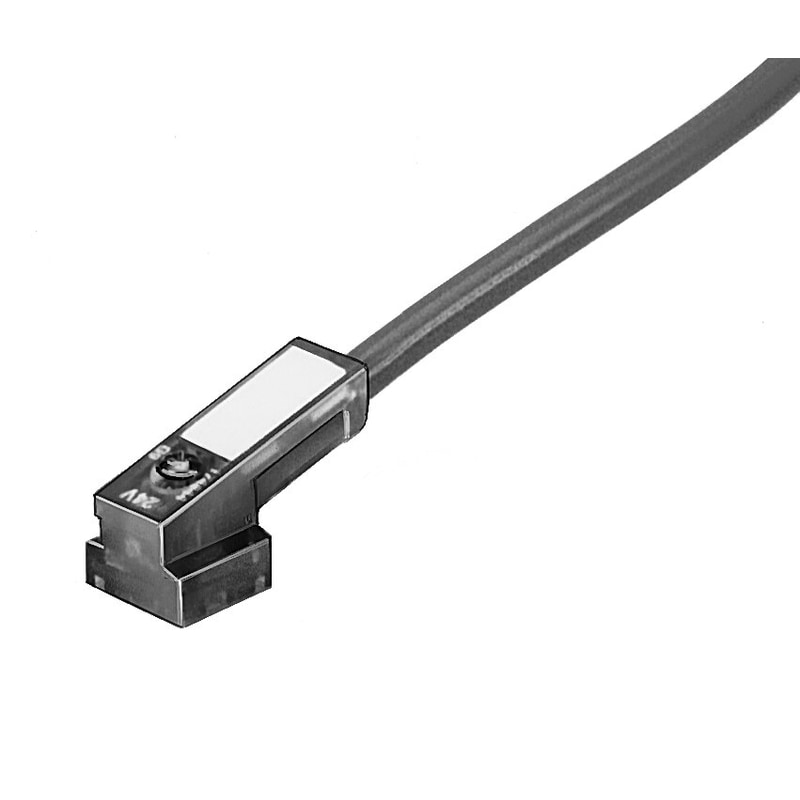

| Type code | KMEB |
|---|---|
| Switching position indication | LED |
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Product weight | 400 g |
| Electrical connection | as per DIN EN 175301-803Form CSocket, angled4-pin |
| Nominal operating voltage DC | 24 V |
| Protective earth connection | Available |
| Cable length | 5 m |
| Cable diameter | 6.2 mm |
| Cable design | 3 x 0.75 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -20 °C … 80 °C |
| Note on materials | RoHS-compliant |
| Material of cable sheath | TPE-U(PUR) |
| Housing material | POMPA |
| Material of pin contacts | Bronze |
| Mounting position | Any |
| Weight | 0.622365 lbs |
|---|---|
| Dimensions | 6.692913 × 6.692913 × 1.574803 in |
| Electrical connection | 4-pin – Angled socket – Type C – To DIN EN 175301-803 |
| Cable length | 5 m |
