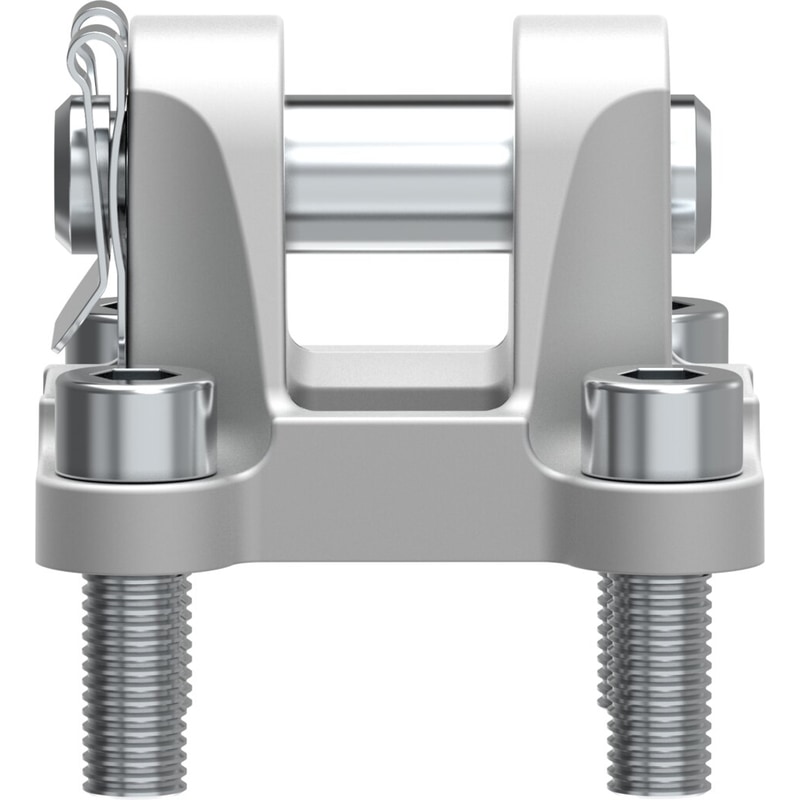

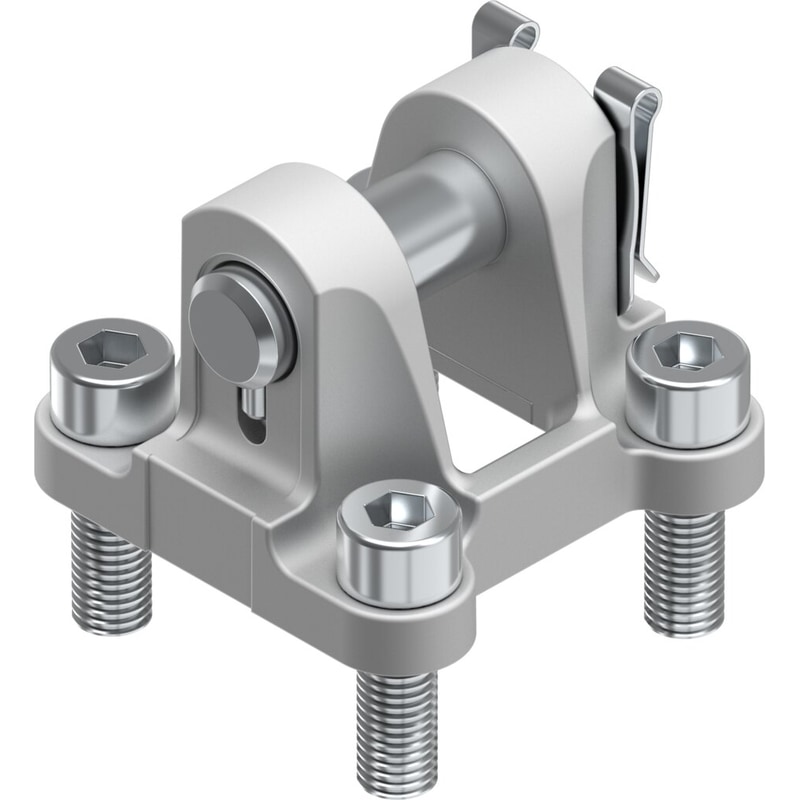

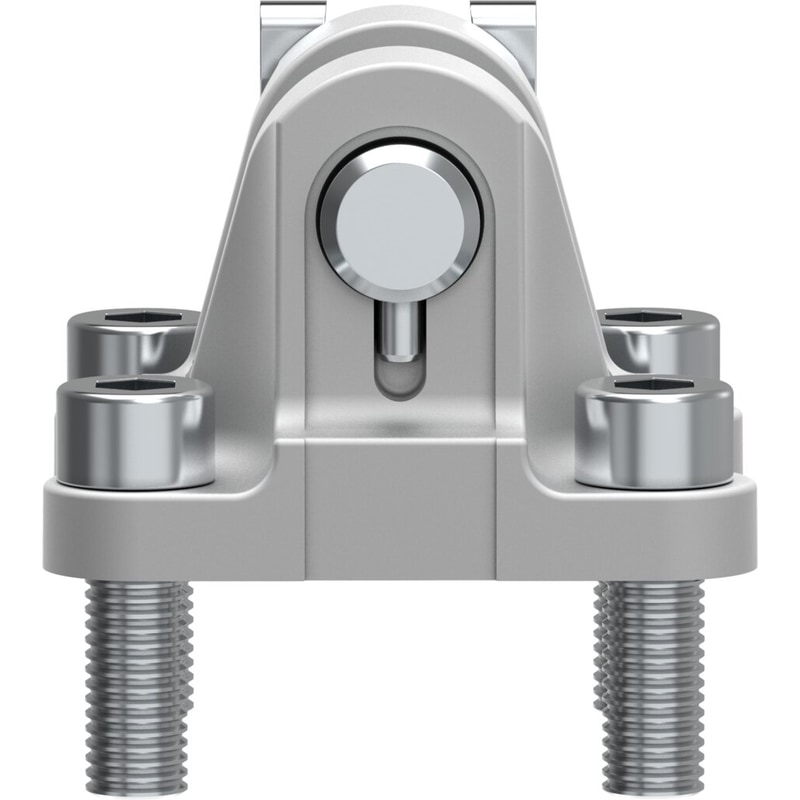

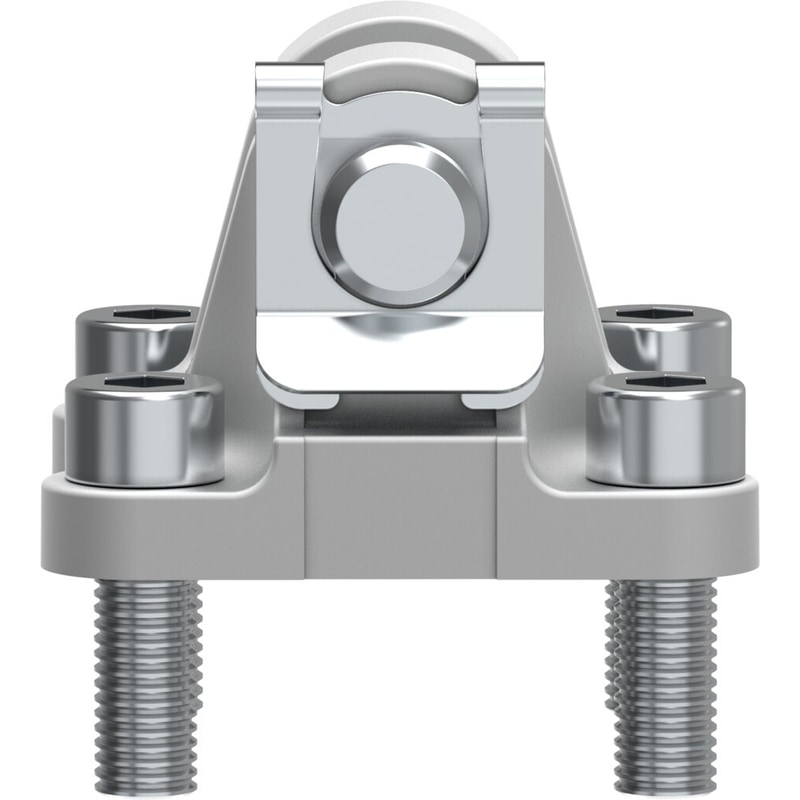

swivel flange SNC-32 Size=32, Based on the standard=ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290), Corrosion resistance classification CRC=2 – Moderate corrosion stress, Ambient temperature=-40 – 150 °C, Product weight=93 g
| Size | 32 |
|---|---|
| Based on the standard | ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-40 … 150 °C |
| Product weight | 93 g |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting | Aluminium die cast |
| Material mounting pin | SteelGalvanised |
| Material screws | SteelGalvanised |
| Material lock | Spring steelGalvanised |
