| Size | Maxi |
|---|---|
| Type code | FRC |
| Mounting position | Vertical |
| Condensate drain | Manually rotating |
| Grade of filtration | 5 µm |

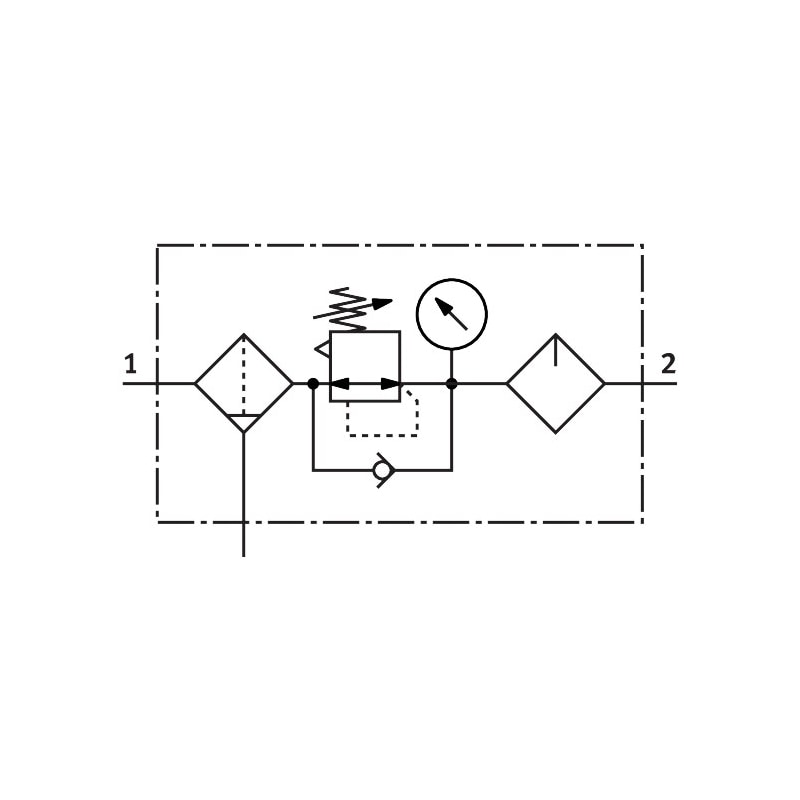

| Symbol | 991761 |
| Operating pressure | 1 bar … 16 bar |
| Standard nominal flow rate | 7200 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:-] |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 2520 g |
| Type of mounting | Line installationOptionally:With mounting bracket |
| Pneumatic connection 1 | 1 NPT |
| Pneumatic connection 2 | 1 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Size | Maxi |
|---|---|
| Mounting position | Vertical |
| Condensate drain | Manually rotating |
| Grade of filtration | 5 µm |
| Symbol | 00991761 |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 5.8 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 7200 l/min |
| Operating medium | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:-], Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 2520 g |
| Type of mounting | With mounting bracket |
| Pneumatic connection 1 | 1 NPT |
| Pneumatic connection 2 | 1 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
