| Size | Midi |
|---|---|
| Type code | FRC |
| Condensate drain | Manual, non-detenting |
| Grade of filtration | 40 µm |

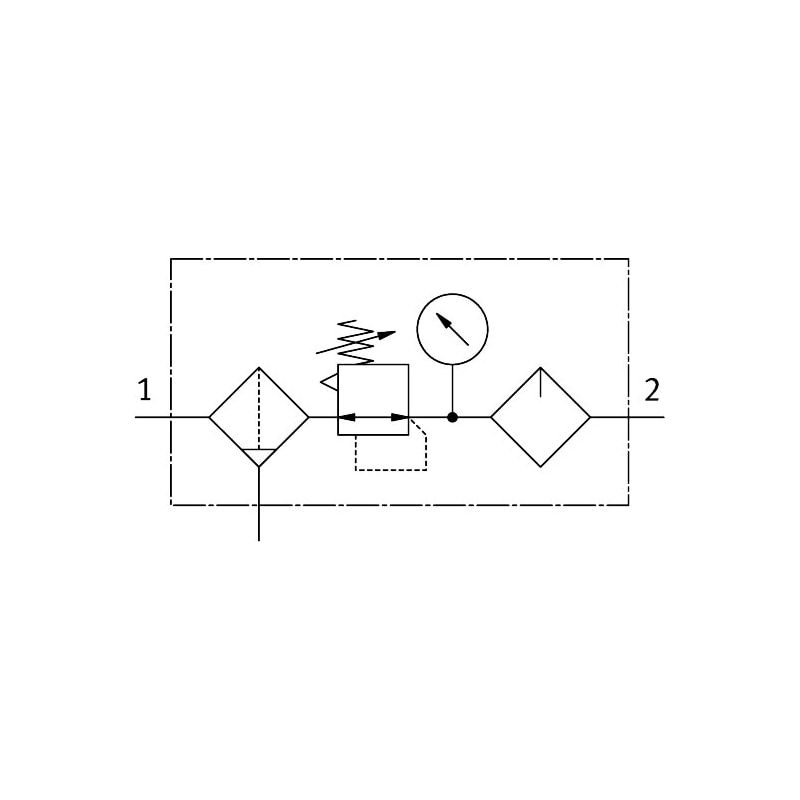

| Symbol | 991549 |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Standard nominal flow rate | 2600 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:-]Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 1440 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 3/4 NPT |
| Pneumatic connection 2 | 3/4 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Weight | 4.160564 lbs |
|---|---|
| Dimensions | 11.811024 × 9.84252 × 2.362205 in |
| Size | Midi |
| Condensate drain | Manual, non-detenting |
| Grade of filtration | 40 µm |
| Symbol | 00991549 |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 2.9 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 2600 l/min |
| Operating medium | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:-], Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 1440 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 3/4 NPT |
| Pneumatic connection 2 | 3/4 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
