| Size | Midi |
|---|---|
| Type code | FRC |
| Mounting position | Vertical |
| Condensate drain | Manual, non-detenting |
| Grade of filtration | 5 µm |

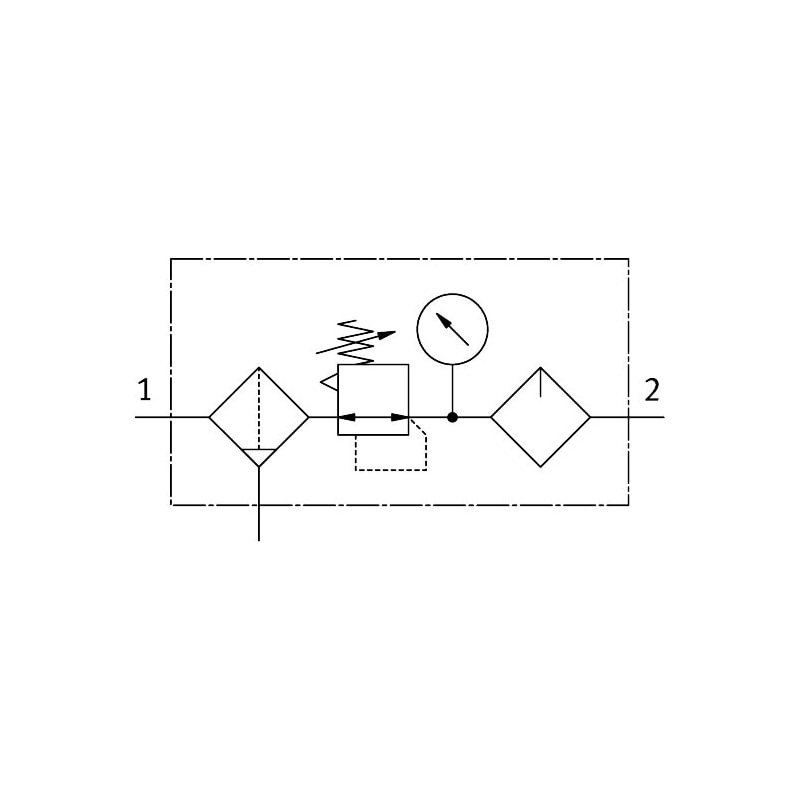

| Symbol | 00991549 |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Standard nominal flow rate | 1800 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:-]Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 1440 g |
| Type of mounting | Line installationWith mounting bracketOptionally: |
| Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Weight | 4.115876 lbs |
|---|---|
| Dimensions | 12.007874 × 5.905512 × 2.362205 in |
| Size | Midi |
| Mounting position | Vertical |
| Condensate drain | Manual, non-detenting |
| Grade of filtration | 5 µm |
| Symbol | 00991549 |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 2.9 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1800 l/min |
| Operating medium | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:-], Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 1440 g |
| Type of mounting | With mounting bracket |
| Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
