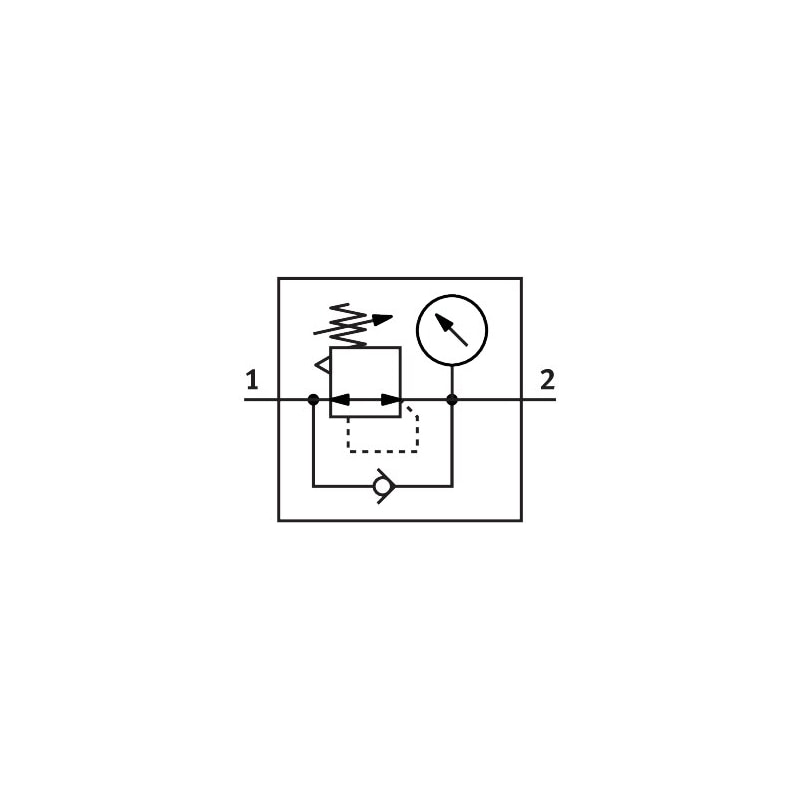

pressure regulator LR-1-D-MAXI-NPT With pressure gauge, working pressure up to 12 bar. Size=Maxi, Series=D, Assembly position=Any, Controller function=Output pressure constant, Operating pressure=16 bar
Size | Maxi |
---|---|
Series | D |
Assembly position | Any |
Controller function | Output pressure constant |
Operating pressure | 16 bar |
Max. pressure hysteresis | 0.4 bar |
Standard nominal flow rate | 11,500 l/min |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
Medium temperature | ‘-10 … 60 °C |
Ambient temperature | ‘-10 … 60 °C |
Product weight | 1,200 g |
