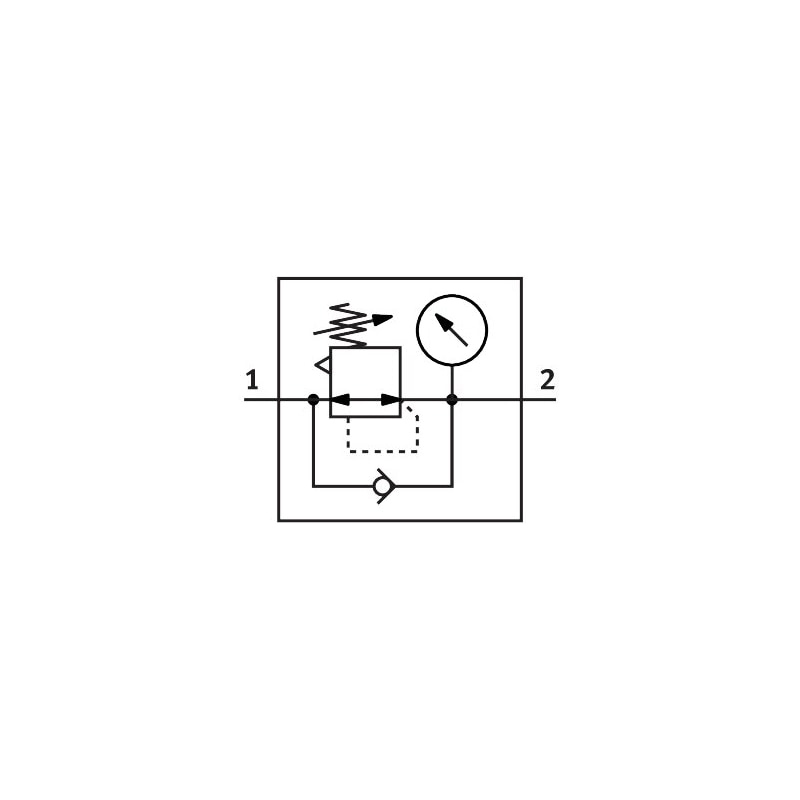

pressure regulator LR-3/4-D-7-MAXI-NPT With pressure gauge, working pressure up to 7 bar. Size=Maxi, Series=D, Assembly position=Any, Controller function=Output pressure constant, Operating pressure=16 bar
| Size | Maxi |
|---|---|
| Series | D |
| Assembly position | Any |
| Controller function | Output pressure constant |
| Operating pressure | 16 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 12,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Medium temperature | ‘-10 … 60 °C |
| Ambient temperature | ‘-10 … 60 °C |
