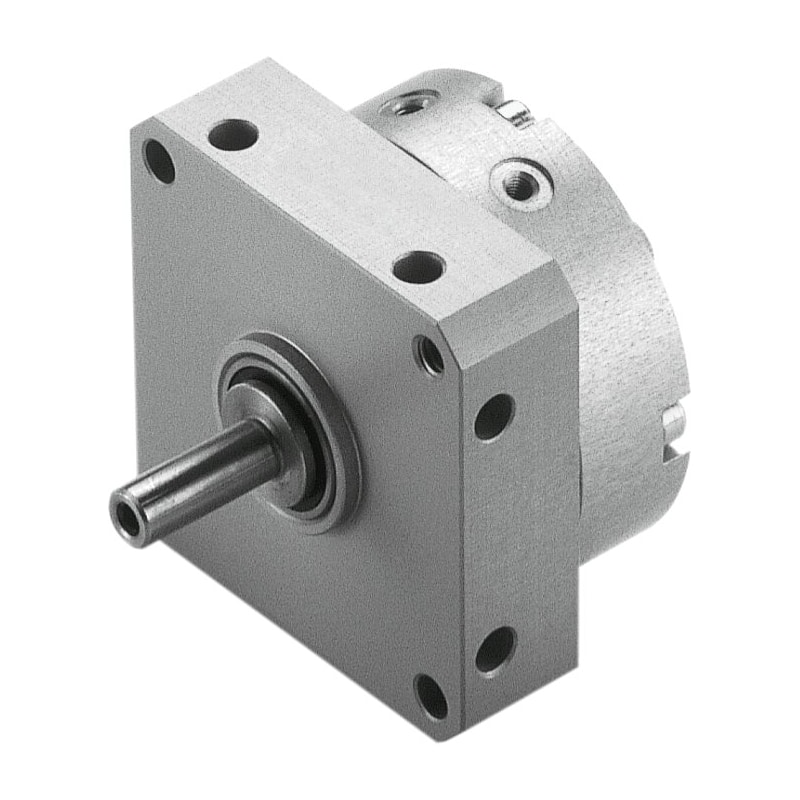

semi-rotary drive DSM-10-240-P With spigot shaft and fixed stop Size=10, Cushioning angle=0,5 deg, Swivel angle=0 – 240 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Size | 10 |
|---|---|
| Cushioning angle | 0.5 deg |
| Swivel angle | 0 … 240 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | No |
| Operating pressure | 2.5 … 8 bar |
| Max. swivel frequency at 6 bar | 2 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | 0 … 60 °C |
