DFM-100-160-P-A-KF

$1,290.44

SKU: 170972
UNSPSC: 31251504
GTIN: 4052568140526

SKU: 170972 Category: Tag:
Festo

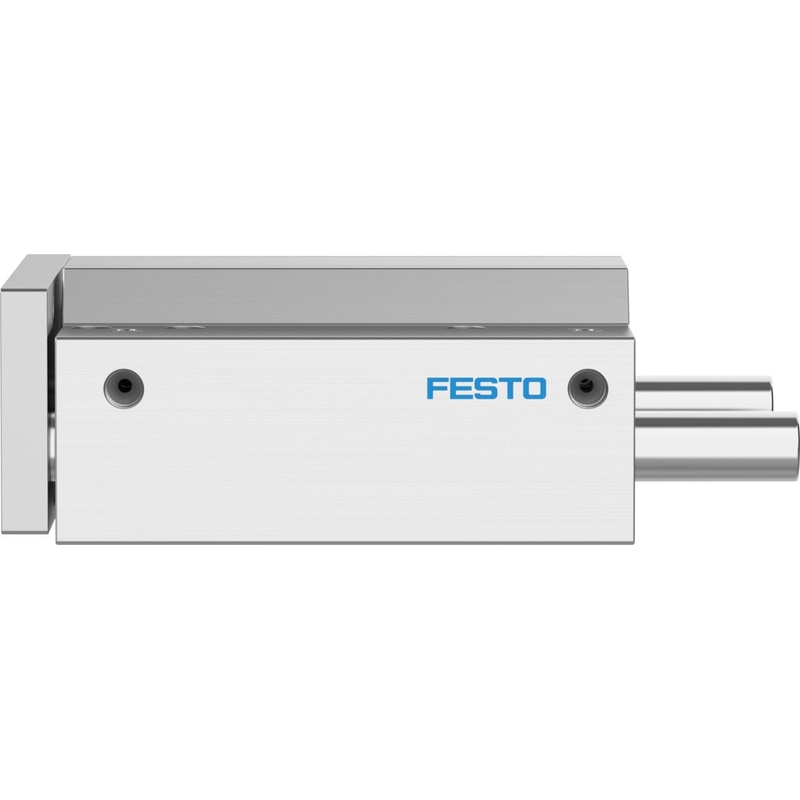

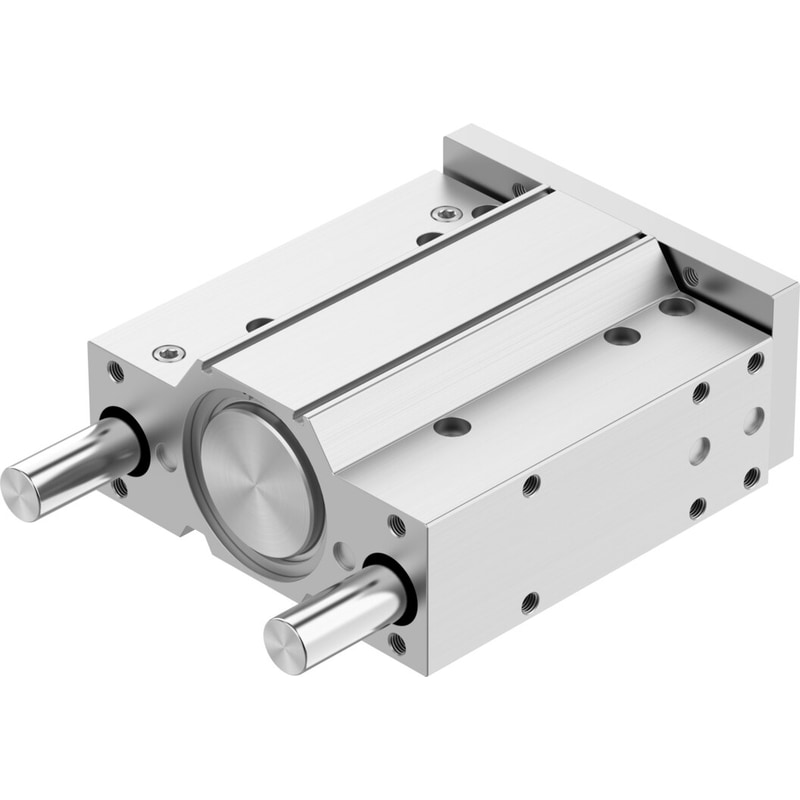

guided drive DFM-100-160-P-A-KF With integrated guide. Centre of gravity distance from working load to yoke plate=125 mm, Stroke=160 mm, Piston diameter=100 mm, Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates at both ends

Centre of gravity distance from working load to yoke plate  125 mm
Stroke  160 mm
Piston diameter  100 mm
Operating mode of drive unit  Yoke
Cushioning  P: Flexible cushioning rings/plates at both ends
Assembly position  Any
Guide  Recirculating ball bearing guide
Design structure  Guide
Position detection  For proximity sensor
Operating pressure  0.5 … 10 bar
Max. speed  0.4 m/s
Mode of operation  double-acting
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Centre of gravity distance from working load to yoke plate

125 mm

Stroke

160 mm

Piston diameter

100 mm

Operating mode of drive unit

Yoke

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Guide

Recirculating ball bearing guide

Design structure

Guide

Position detection

For proximity sensor

Operating pressure

0.5 … 10 bar

Max. speed

0.4 m/s

Mode of operation

double-acting

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]
