| KC characters | KC EMC |
|---|---|
| Nominal width pressurization | 2.5 mm |
| Exhaust nominal width | 2.5 mm |
| Type code | VPPL |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | AnyPreferably upright |
| Design | Directly controlled piston regulator |
| Short-circuit protection | no |
| Safety instructions | VPPL safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar. |
| Symbol | 995268 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Direct |

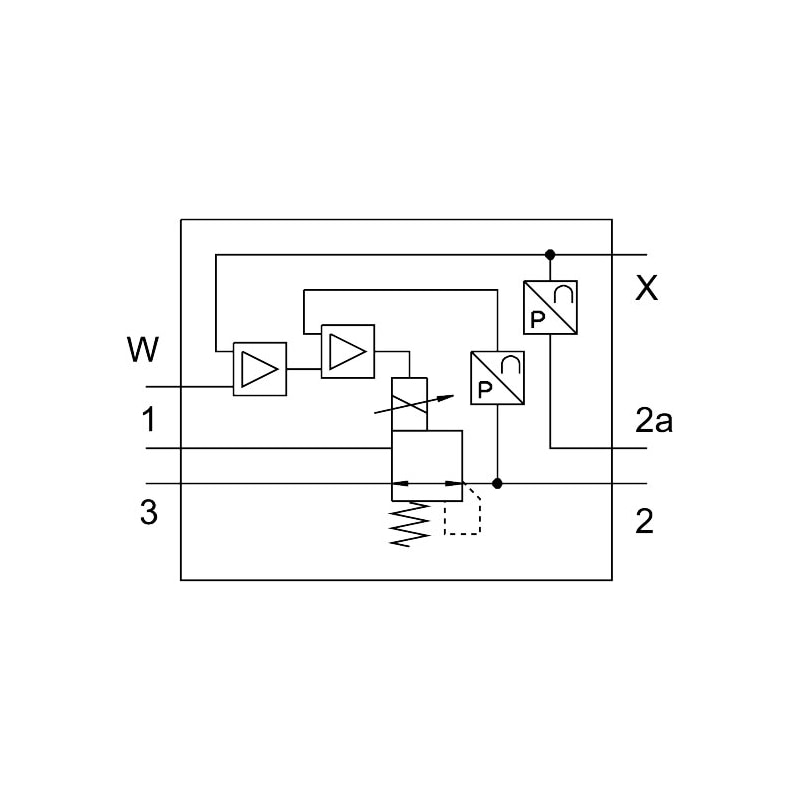

| Valve function | 3-way proportional pressure control valve closed |
| Display type | LED display |
| Operating pressure | ≤ 50 bar |
| Pressure regulation range | 0.4 bar … 40 bar |
| Inlet pressure 1 | 0 bar … 50 bar |
| Max. pressure hysteresis | 0.3 bar |
| b-value | 0.25 |
| C value | 0.8 l/sbar |
| Standard nominal flow rate | 300 l/min |
| On switching time | 300 ms |
| DC operating voltage range | 21.6 V … 27.6 V |
| Duty cycle | 1 |
| Max. electrical power consumption | 26.7 W |
| Residual ripple | 0.1 |
| Analog output signal range | 4 – 20 mA |
| Analog input signal range | 4 – 20 mA |
| Setpoint/actual values | Current type 4–20 mA |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 5 °C … 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 5 °C … 50 °C |
| Product weight | 1100 g |
| Linearity error in ± % FS | 1 %FS |
| Temperature coefficient | 0.04 %/K |
| Repetition accuracy in ± %FS | 1 %FS |
| Electrical connection, diagnostic interface | Socket, M12, 5-pin, A-coded |
| Electrical connection IN | Plug, M12, 5-pin, A-coded |
| Electrical connection OUT | Plug, M12, 5-pin, A-coded |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | Flange |
| Pneumatic connection 2 | Flange |
| Pneumatic connection 3 | Flange |
| Note on materials | RoHS-compliant |
| Housing material | AnodizedWrought aluminum alloy |
VPPL
VPPL-3Q-3-0L40H-A4-A-S1-1
$2,924.15
Especially developed for higher pressures from 10 to 40 bar. As an individual device with threaded connections, the valve can be used in a variety of applications, for example in stretch blow molding of PET bottles in the food and beverage industry or on tire or brake test benches in the automotive industry.
| Weight | 2.639595 lbs |
|---|---|
| Dimensions | 7.677165 × 3.937008 × 3.149606 in |
