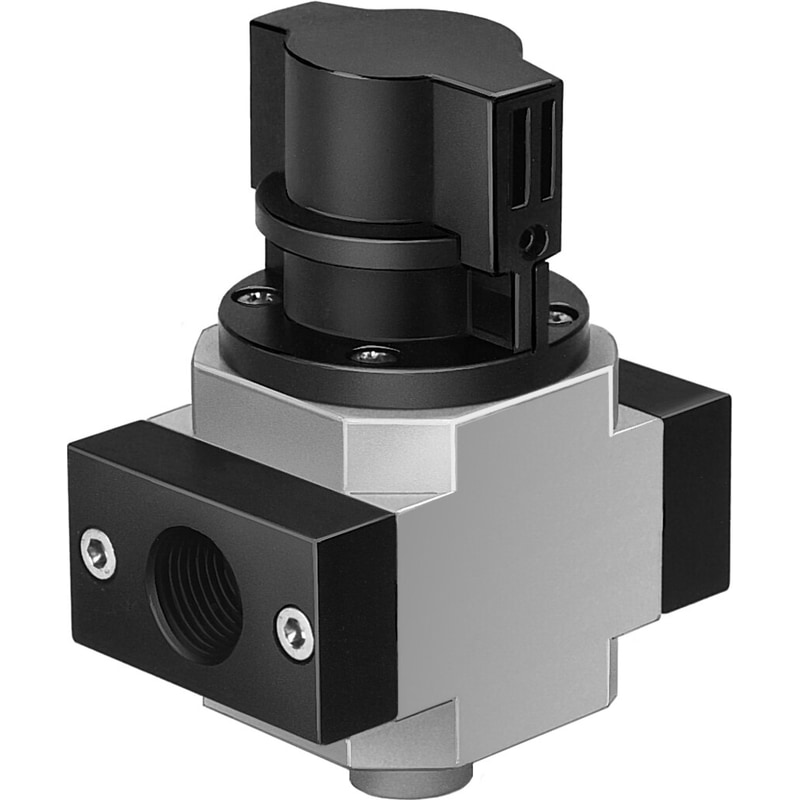

On/off valve HE-3/4-D-MAXI
On/off valve HE-3/4-D-MAXI - Image 2

On/off valve HE-3/4-D-MAXI

$239.39

SKU: 162812
UNSPSC: 40141603
GTIN: 4052568132989

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 162812 Category: Tag:
D-START-UP-EXHAUST-VALVES_ENUS.PDF
Brand:

on-off valve HE-3/4-D-MAXI For service units, with threaded connecting plate Design structure=Piston slide, Type of actuation=manual, Sealing principle=soft, Exhaust-air function=not throttleable, Manual override=None

Design structure  Piston slide
Type of actuation  manual
Sealing principle  soft
Exhaust-air function  not throttleable
Manual override  None
Valve function  3/2 bistable
Operating pressure  0 … 16 bar
C value  26.8 l/sbar
b value  0.35
Standard nominal flow rate  6,000 l/min
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Weight 2.070141 lbs
Dimensions 5.11811 × 2.952756 × 3.937008 in
Structural design

Piston gate valve
Actuation type

Manual
Sealing principle

Soft
Exhaust air function

Without flow control option
Manual override

None
Symbol

00995571
Valve Function

3/2, bistable
Operating pressure

0 bar … 16 bar
C value

26.8 l/sbar
b-value

0.35
Normal nominal flow rate (normalized to DIN 1343)

6000 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas
Information on operating and pilot media

Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
Note on materials

RoHS-compliant
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Temperature of medium

-10 °C … 60 °C
Ambient temperature

-10 °C … 60 °C
Type of mounting

With accessories
Mounting position

Any
Flow direction

Non-reversible
Product weight

796 g
Pneumatic connection 1

G3/4
Pneumatic connection 2

G3/4
Pneumatic connection 3

G3/8
Air quality class at the output

Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas
Seals material

NBR
Housing material

Die-cast aluminum
