| Size | Maxi |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Fully automatic |

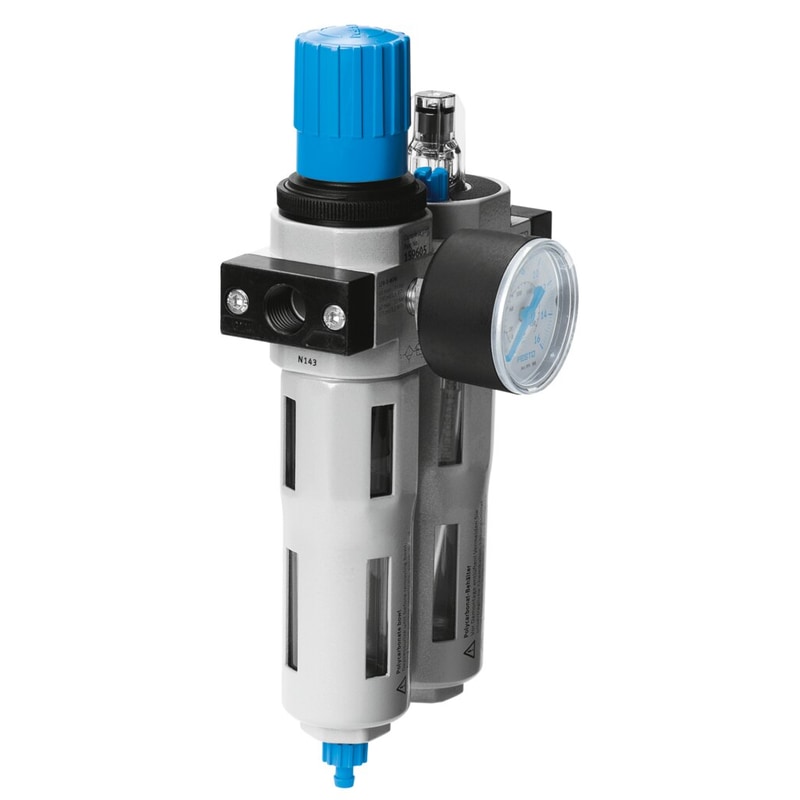

| Design | Filter regulator with pressure gaugeProportional standard oil mist lubricator |
| Max. condensate volume | 80 ml |
| Grade of filtration | 5 µm |
| Bowl guard | Metal bowl guard |

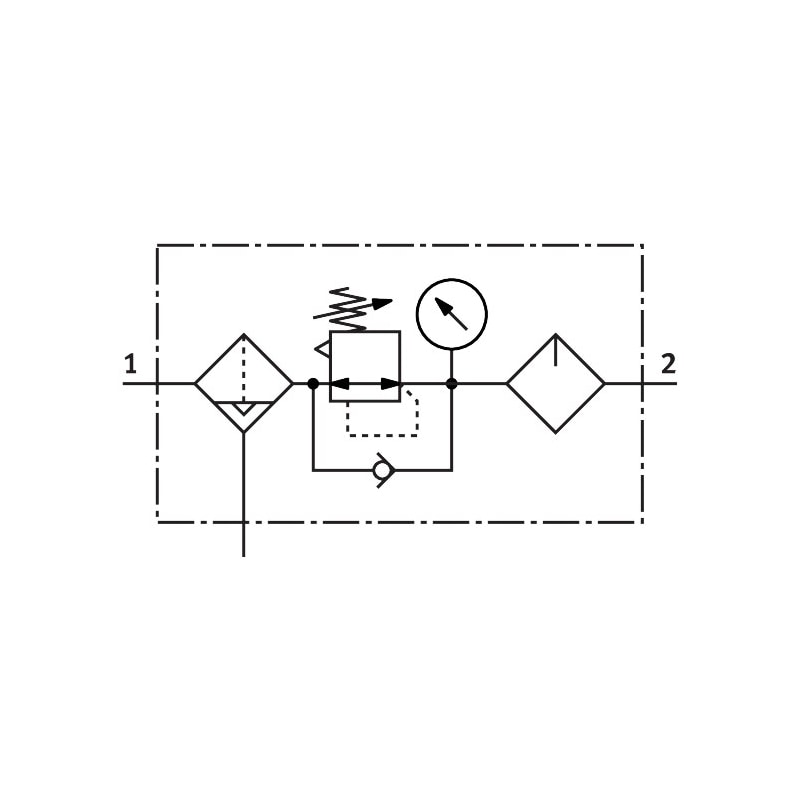

| Symbol | 991599 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 bar … 12 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 7200 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:9:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:-]Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Type of mounting | With accessoriesLine installation |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Weight | 5.806756 lbs |
|---|---|
| Dimensions | 12.322835 × 3.267717 × 7.677165 in |
| Size | Maxi |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Fully automatic |
| Structural design | Filter regulator with pressure gauge, Proportional standard oil mist lubricator |
| Max. condensate volume | 80 ml |
| Grade of filtration | 5 µm |
| Bowl guard | Metal bowl guard |
| Symbol | 00991599 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 2 bar … 12 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 5.8 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 7200 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:-], Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 2520 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
