| Size | Midi |
|---|---|
| Maritime classification | See certificate |
| Type code | FRC |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Manually rotating |
| Design | Proportional standard oil mist lubricatorFilter regulator with pressure gauge |
| Max. condensate volume | 43 ml |
| Grade of filtration | 5 µm |
| Bowl guard | Metal bowl guard |

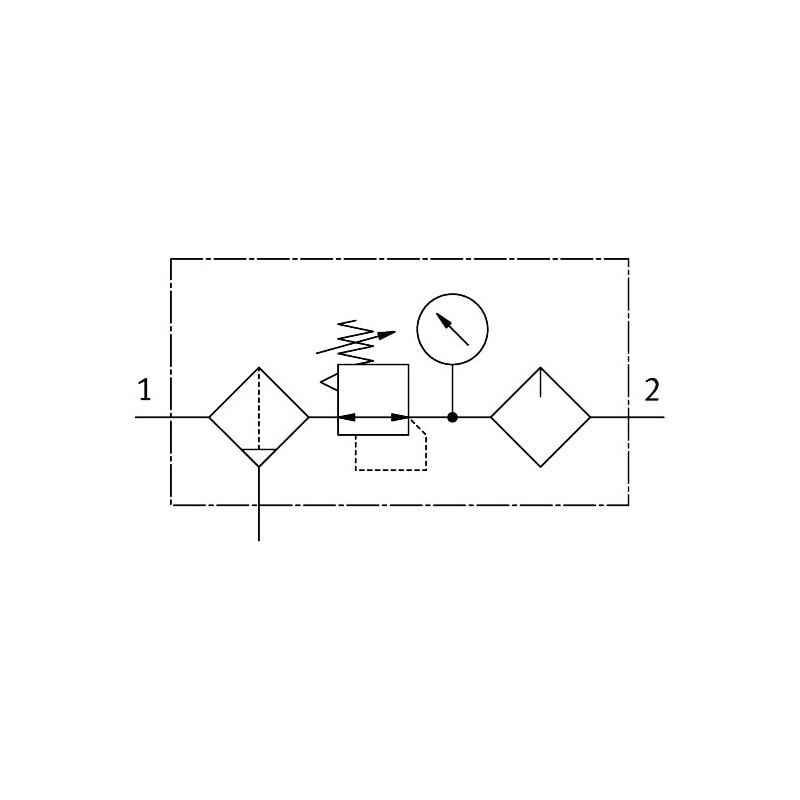

| Symbol | 991549 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 1700 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:-] |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 1440 g |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Weight | 4.298794 lbs |
|---|---|
| Dimensions | 11.653543 × 2.874016 × 6.062992 in |
| Size | Midi |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge, Proportional standard oil mist lubricator |
| Max. condensate volume | 43 ml |
| Grade of filtration | 5 µm |
| Bowl guard | Metal bowl guard |
| Symbol | 00991549 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 2.9 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1700 l/min |
| Operating medium | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:-], Inert gas |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 1440 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
