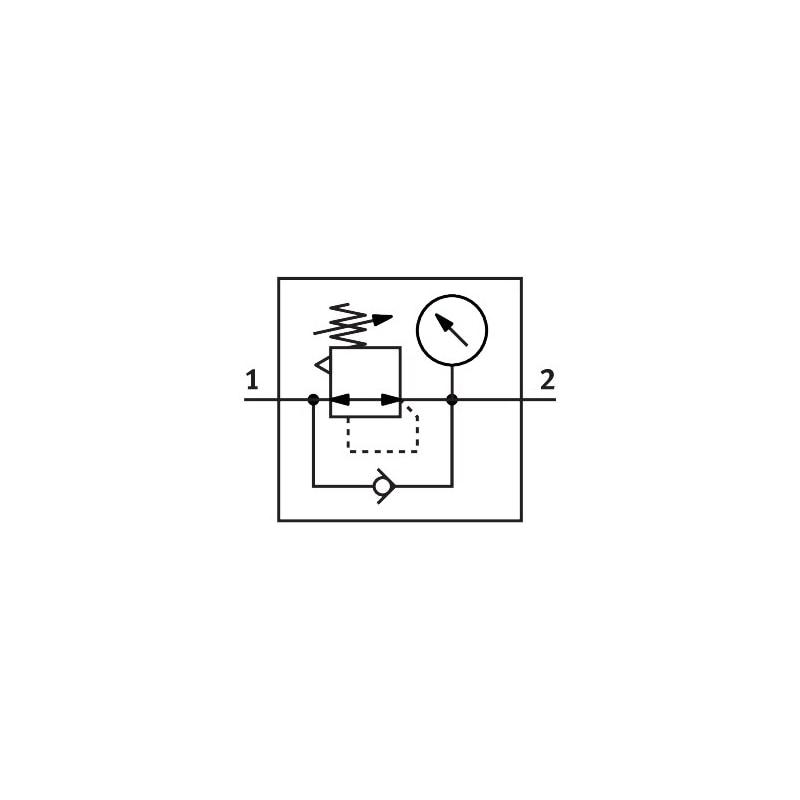

pressure regulator LR-1-D-7-MAXI With pressure gauge, working pressure up to 7 bar. Size=Maxi, Series=D, Actuator lock=Rotary knob with lock, Assembly position=Any, Design structure=Piloted piston regulator
| Size | Maxi |
|---|---|
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Any |
| Design structure | Piloted piston regulator |
| Controller function | Output pressure constantwith secondary exhaust |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0 … 16 bar |
| Pressure regulation range | 0.5 … 7 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 12,500 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
