vacuum generator VADM-45-N Nominal size, Laval nozzle=0,45 mm, Grid dimension=10 mm, Design, silencer=closed, Assembly position=Any, Ejector characteristic=High vacuum
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Grid dimension | 10 mm |
| Design, silencer | closed |
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Grade of filtration | <= 40 µm |
| Manual override | Pushing |

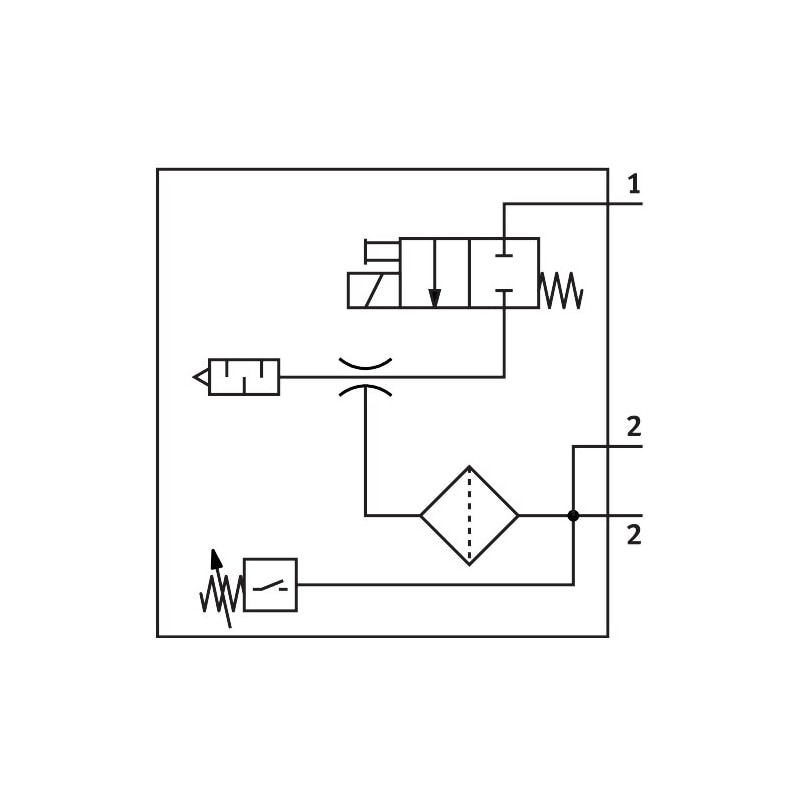

| Integrated function | Ejector pulse valve, electricalFlow control valveElectrical on-off valveFilterNon-return valveVacuum switch |
| Measured variable | Relative pressure |
| Measuring principle | Piezoresistive |
| Switching element function | Normally open contact |
| Switching function | Threshold value comparator |
| Valve function | closed |
