| Series | L |
|---|---|
| Size | 186 |
| Type code | PFML |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manual |
| Symbol | 991519 |
| Operating pressure | 0 bar … 50 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [2:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Max. standard flow rate for air quality class | 18980 l/min |
| Min. standard flow rate for air quality class | 6326 l/min |
| Filter efficiency | 0.9999998 |
| Max. condensate volume | 400 ml |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 5 °C … 60 °C |
| Ambient temperature | 5 °C … 60 °C |
| Storage temperature | -10 °C … 60 °C |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Type of mounting | Line installation |
| Mounting position | Vertical +/- 5° |
| Housing material | Wrought aluminum alloy |
| Material of bowl | High-alloy stainless steel |
| Seals material | NBR |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Product weight | 21000 g |
| Volume | 6.7 |
| For use in the food industry | See supplementary material information |

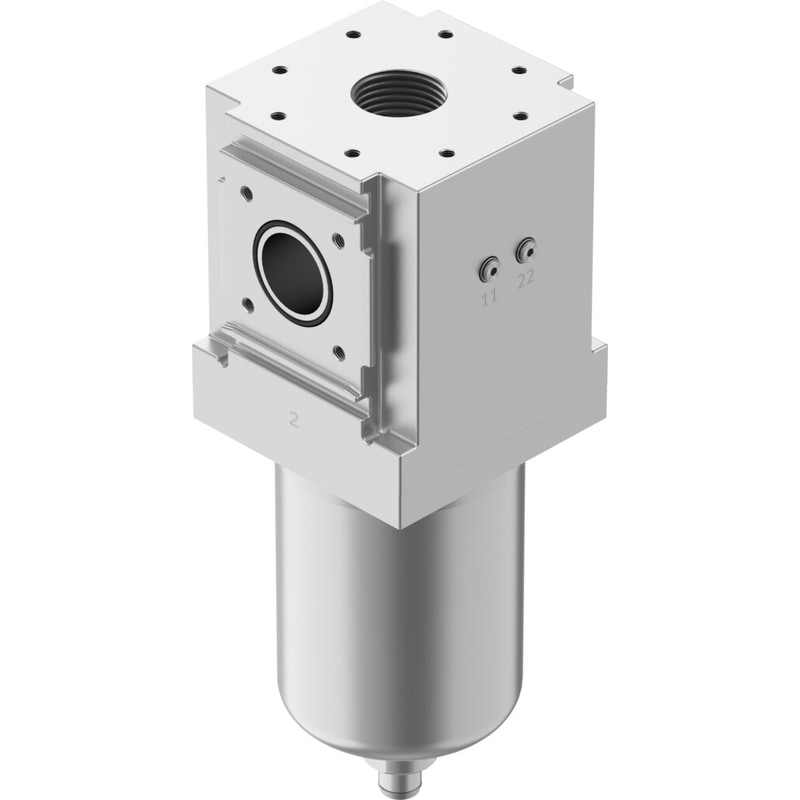

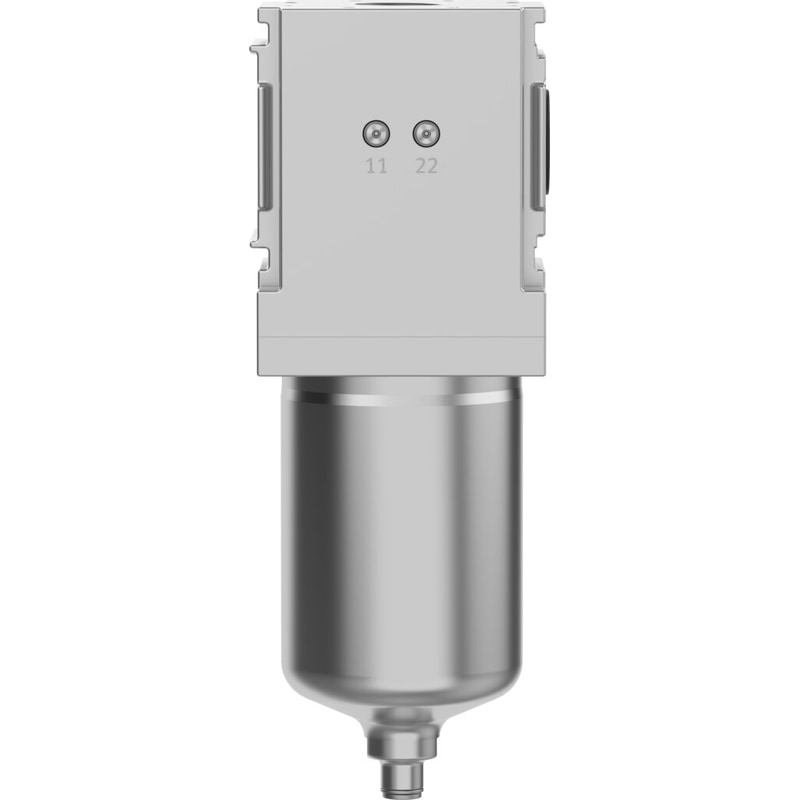

PFML-186-HP3-H-AST
$7,820.04
