Screw-in exhaust air control with balanced noise emission.
| Type code | SEU |
|---|---|
| Valve function | Quick exhaust |
| Selection of additional function | With pneumatic muffler |
| Pneumatic connection 1 | NPT1/4-18 |
| Pneumatic connection 2 | NPT1/4-18 |
| Type of mounting | Screw-in |
| Standard nominal flow rate exhaust air 6->5 bar | 1100 l/min |
| Standard flow rate exhaust 6-> 0 bar | 2300 l/min |
| Standard nominal flow rate pressurization 6->5 bar | 960 l/min |
| Operating pressure | 0.5 bar … 10 bar |
| Ambient temperature | -20 °C … 75 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Nominal width | 7 mm |

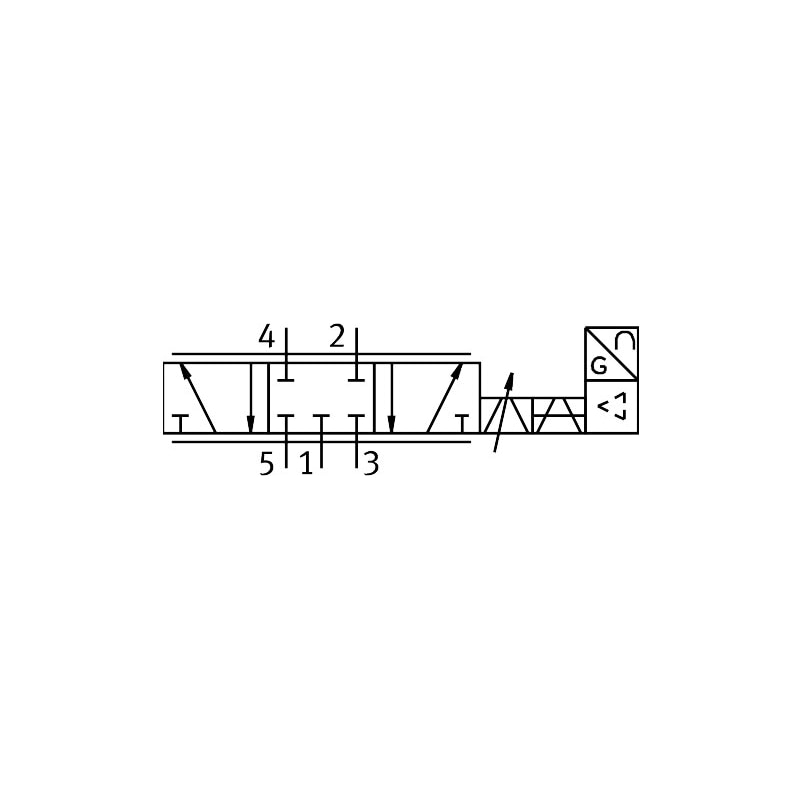

| Symbol | 00991460 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C … 75 °C |
| Noise level | 85 dB(A) |
| Note on materials | RoHS-compliant |
