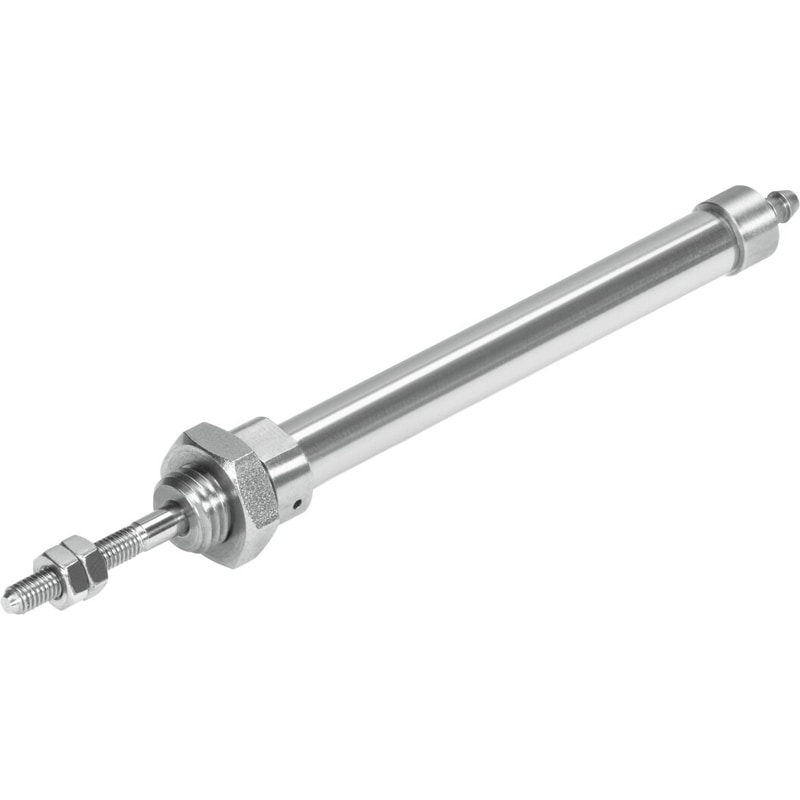

round cylinder EG-6-20-PK-3 Micro Pneumatic Stroke=20 mm, Piston diameter=6 mm, Cushioning=(* At one end, * Not adjustable), Assembly position=Any, Design structure=(* Piston, * Piston rod, * Cylinder barrel)
| Stroke | 20 mm |
|---|---|
| Piston diameter | 6 mm |
| Cushioning | At one endNot adjustable |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | No |
| Variants | Single-ended piston rod |
| Operating pressure | 3 … 7 bar |
| Mode of operation | single-actingpushing action |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Ambient temperature | 5 … 60 °C |
| Theoretical force at 6 bar, advance Stroke | 11.8 N |
