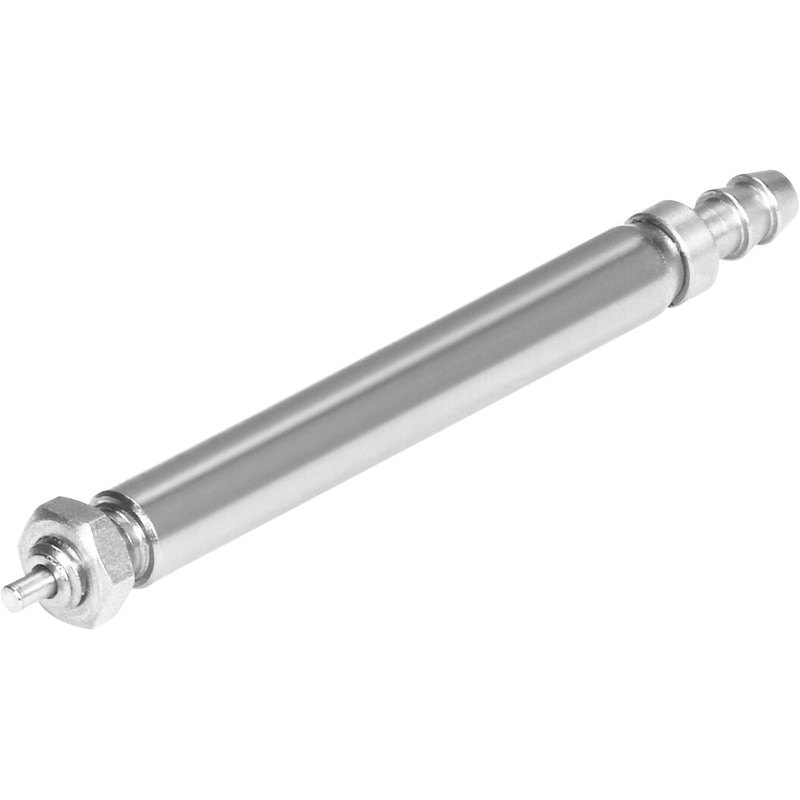

round cylinder EG-2,5-5-PK-2 Micro Pneumatic Stroke=5 mm, Piston diameter=2,5 mm, Cushioning=No cushioning, Assembly position=Any, Design structure=(* Piston, * Piston rod, * Cylinder barrel)
| Stroke | 5 mm |
|---|---|
| Piston diameter | 2,5 mm |
| Cushioning | No cushioning |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | No |
| Variants | Single-ended piston rod |
| Operating pressure | 3.5 … 7 bar |
| Mode of operation | single-actingpushing action |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Ambient temperature | 5 … 60 °C |
| Theoretical force at 6 bar, advance Stroke | 1.9 N |
