AEVU-50-25-A-P-A

Name: AEVU-50-25-A-P-A
Brand: Festo
SKU: 157009
Availability: InStock

$414.45

SKU: 157009 Category: ADVU-AEVU Tag: 2021u

Brand: Festo

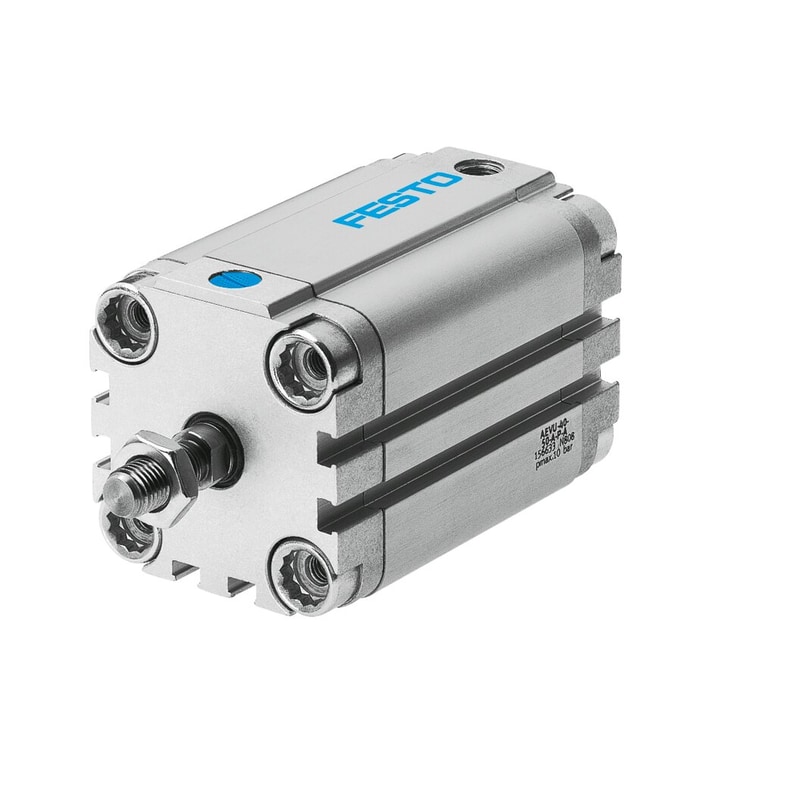

compact cylinder
AEVU-50-25-A-P-A
Part number: 157009

Classic

For proximity sensing, piston-rod end with male thread.

Modern alternatives can be found by entering the first four characters of the type code in the search field.

Stroke	25 mm
Piston diameter	50 mm
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Mode of operation	single-actingpushing action
Piston-rod end	Male thread
Design structure	PistonPiston rod
Position detection	For proximity sensor
Variants	Single-ended piston rod
Operating pressure	0.8 … 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	2 – Moderate corrosion stress

Weight	1.719606 lbs
Dimensions	2.874016 × 4.173228 × 3.385827 in
Mode of operation	Pushing – Single-acting
Piston diameter	50 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	1121 N
Stroke	25 mm
Cushioning	Elastic cushioning rings/plates at both ends
