| Stroke | 5 mm |
|---|---|
| Piston diameter | 12 mm |
| Type code | AEVU |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Single-actingPushing |
| Piston rod end | External thread |
| Design | PistonPiston rod |
| Position sensing | For proximity sensor |

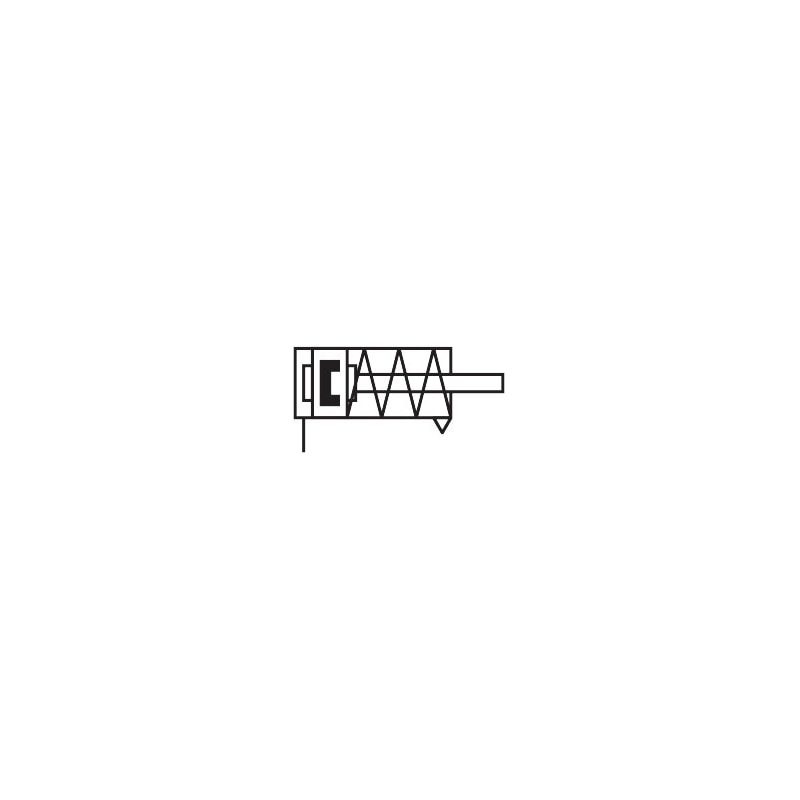

| Symbol | 991729 |
| Variants | Piston rod at one end |
| Operating pressure | 1.5 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -20 °C … 80 °C |
| Impact energy in the end positions | 0.07 J |
| Theoretical force at 6 bar, advancing | 59 N |
| Moving mass at 0 mm stroke | 8 g |
| Additional weight per 10 mm stroke | 15 g |
| Basic weight with 0 mm stroke | 87 g |
| Additional moving mass per 10 mm stroke | 2 g |
| Type of mounting | With through-holeOptionally:With accessories |
| Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBRTPE-U(PU) |
| Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy |
ADVU-AEVU

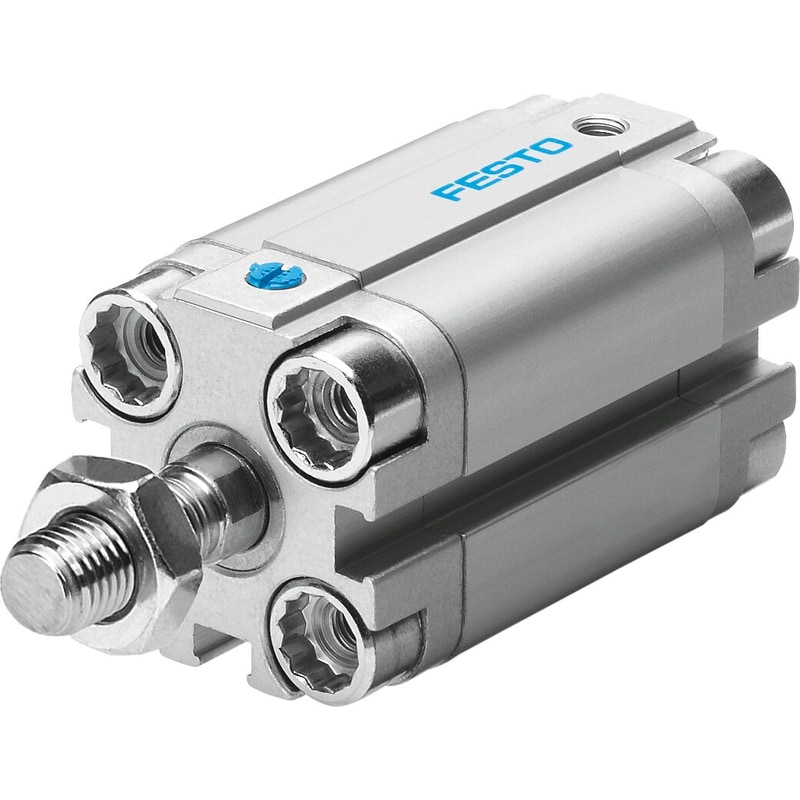

AEVU-12-5-A-P-A
$187.67
Single-or double-acting cylinder with a wide range of mounting options.
| Weight | 0.242508 lbs |
|---|---|
| Mode of operation | Pushing – Single-acting |
| Piston diameter | 12 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 59 N |
| Stroke | 5 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
