| Stroke | 10 mm |
|---|---|
| Piston diameter | 16 mm |
| Type code | ADVU |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Piston rod end | Internal thread |
| Design | PistonPiston rod |
| Position sensing | For proximity sensor |

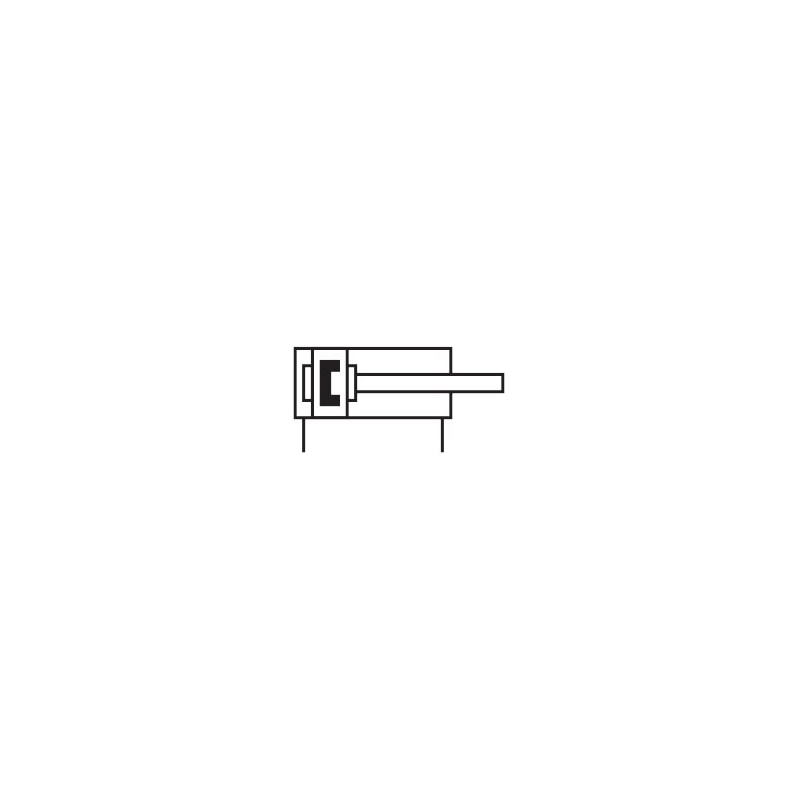

| Symbol | 991217 |
| Variants | Piston rod at one end |
| Operating pressure | 1.2 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -20 °C … 80 °C |
| Impact energy in the end positions | 0.1 J |
| Theoretical force at 6 bar, retracting | 90 N |
| Theoretical force at 6 bar, advancing | 121 N |
| Moving mass at 0 mm stroke | 12 g |
| Additional weight per 10 mm stroke | 15 g |
| Basic weight with 0 mm stroke | 89 g |
| Additional moving mass per 10 mm stroke | 4 g |
| Pneumatic connection | M5 |
| Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBRTPE-U(PU) |
| Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy |
ADVU-AEVU

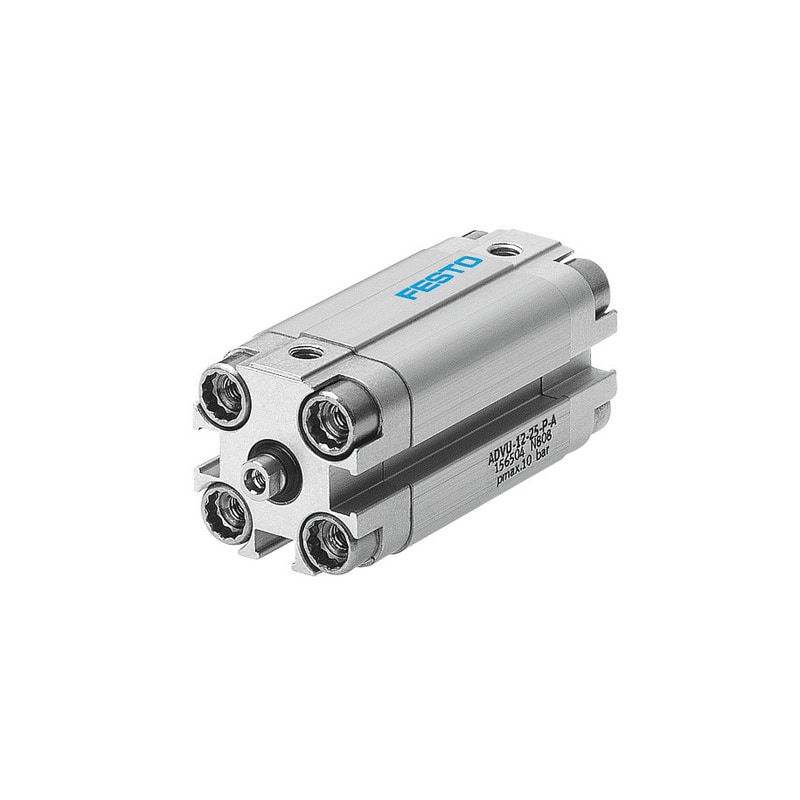

ADVU-16-10-P-A
$197.13
Single-or double-acting cylinder with a wide range of mounting options.
| Weight | 0.228399 lbs |
|---|---|
| Dimensions | 2.165354 × 1.220472 × 1.220472 in |
| Mode of operation | double-acting |
| Piston diameter | 16 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 121 N |
| Stroke | 10 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
