Type code | SDAT |
---|---|
Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection 1, connection type | Cable with plug |
KC characters | KC EMC |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |

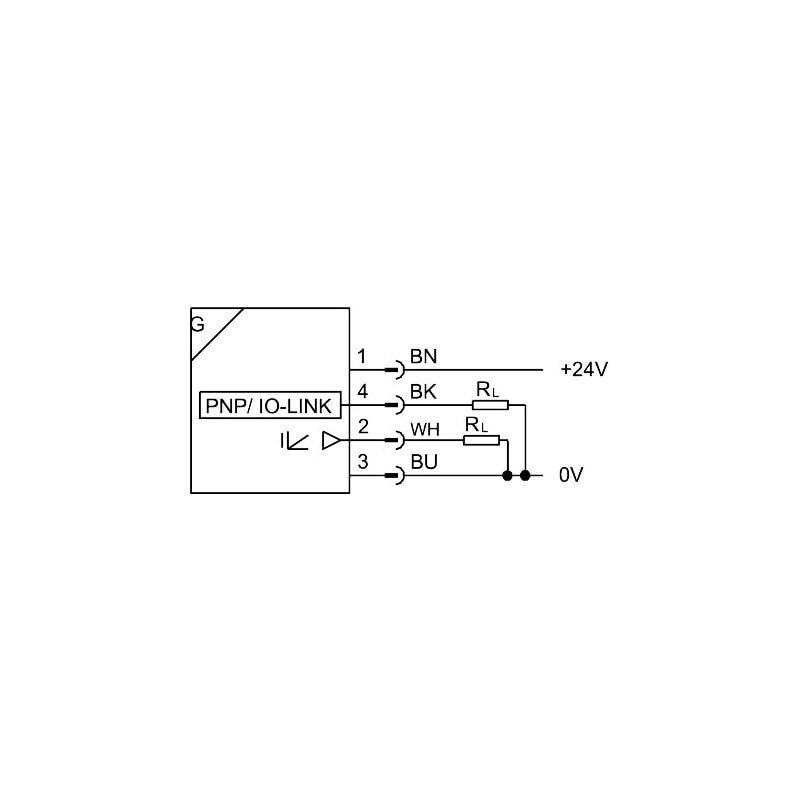

Electrical connection for input 1, connection pattern | 991171 |
Electrical connection 1, number of pins/wires | 4 |
Design | for T-slot |
Symbol | 995389 |
Certification | RCM compliance markc UL us – Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive |
Note on materials | RoHS-compliantHalogen-free |
Measured variable | Position |
Measuring principle | Magnetic Hall |
Sensing range | 0 µm … 80000 µm |
Ambient temperature | -25 °C … 70 °C |
Typical sampling interval | 1 ms |
Max. travel speed | 3 m/s |
Displacement resolution | 0.05 mm |
Repetition accuracy | 0.1 mm |
Switching output | PNP |
Switching element function | N/C contact/N/O contact switchable |
On time | < 2 ms |
Max. switching frequency | 1000 Hz |
Max. output current | 100 mA |
Max. switching capacity DC | 2.7 W |
Voltage drop | 2.5 V |
Analog output | 4 – 20 mA |
Sensitivity | 0.2 mA/mm |
Typical linearity error in ± mm | ±0.25 mm |
Max. load resistance of current output | 500 Ohm |
Short-circuit protection | yes |
Overload protection | Available |
Protocol | I-PortIO-Link® |
IO-Link®, protocol version | Device V 1.1 |
IO-Link®, profile | Smart sensor profile |
IO-Link®, function classes | IdentificationDiagnosticsBinary data channel (BDC)Process data variable (PDV)Teach channel |
IO-Link®, communication mode | COM3 (230.4 kBd) |
IO-Link®, SIO mode support | Yes |
IO-Link®, port class | A |
IO-Link®, process data width IN | 2 Byte |
IO-Link®, process data content IN | 12 bit PDV (position measurement)4 bit BDC (position monitoring) |
IO-Link®, minimum cycle time | 1 ms |
DC operating voltage range | 15 V … 30 V |
Residual ripple | 0.1 |
Reverse polarity protection | for all electrical connections |
Connection outlet orientation | Longitudinal |
Material of pin contacts | Gold-platedCopper alloy |
Connector cable test conditions | Flexural strength: as per Festo standardTorsional resistance: > 300 000 cycles, ±270°/0.1 mCable chain: 5 million cycles, bending radius 28 mm |
Cable length | 0.3 m |
Cable characteristic | Suitability for energy chains/robot applications |
Color cable sheath | Gray |
Material of cable sheath | TPE-U(PUR) |
Type of mounting | Can be inserted in slot from aboveScrewed tightly |
Mounting position | Any |
Product weight | 23 g |
Housing material | Brass, nickel-platedPolyesterHigh-alloy stainless steelPA-reinforced |
Material of union nut | Brass, nickel-plated |
Film material | Polyester |
Ready status indication | LED green |
Switching status indication | LED yellow |
Status indicator | LED red |
Setting options | IO-Link®Pushbutton |
Ambient temperature with flexible cable installation | -20 °C … 70 °C |
Degree of protection | IP65IP68 |
SDAT-MHS-M80-1L-SA-E-0.3-M8
$409.14
The universal transmitter solution. With three options for signal evaluation: classic, analog, programmable switching output, or programmable IO-Link® output. The sensing ranges of the transmitter are perfectly coordinated to the standard strokes of Festo cylinders.
