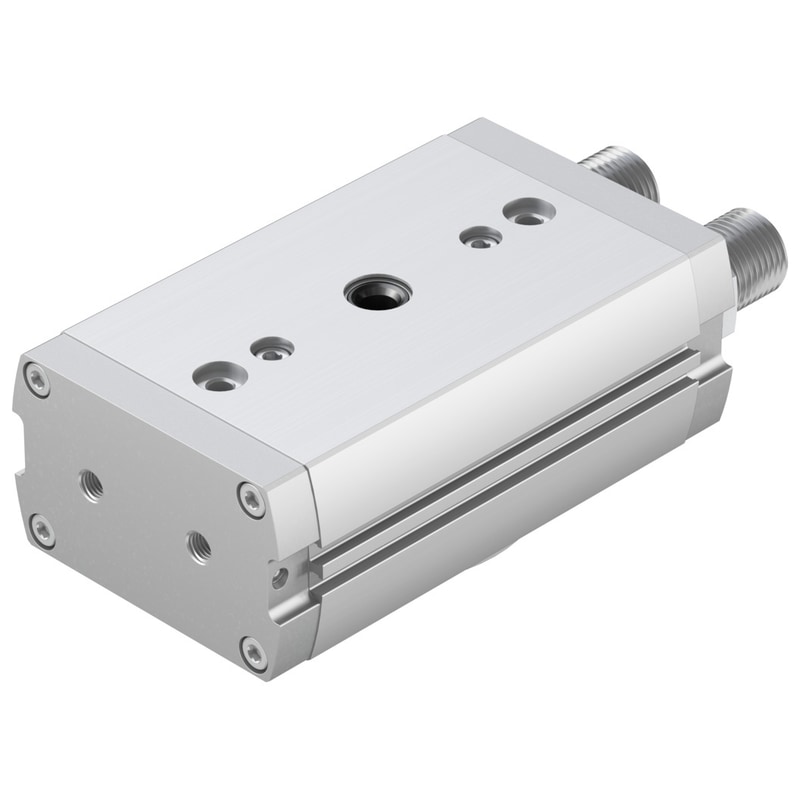

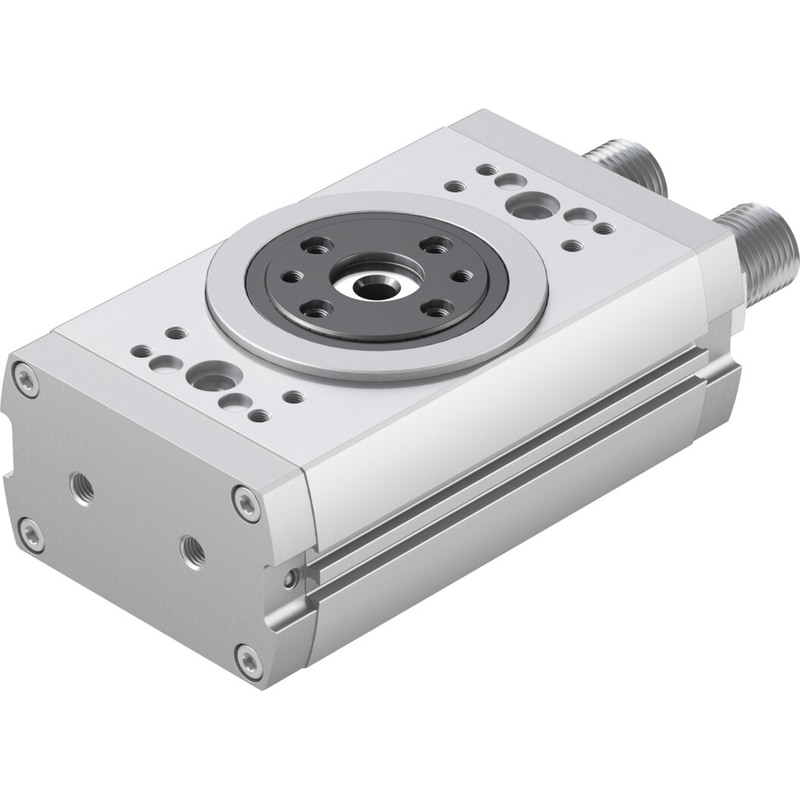

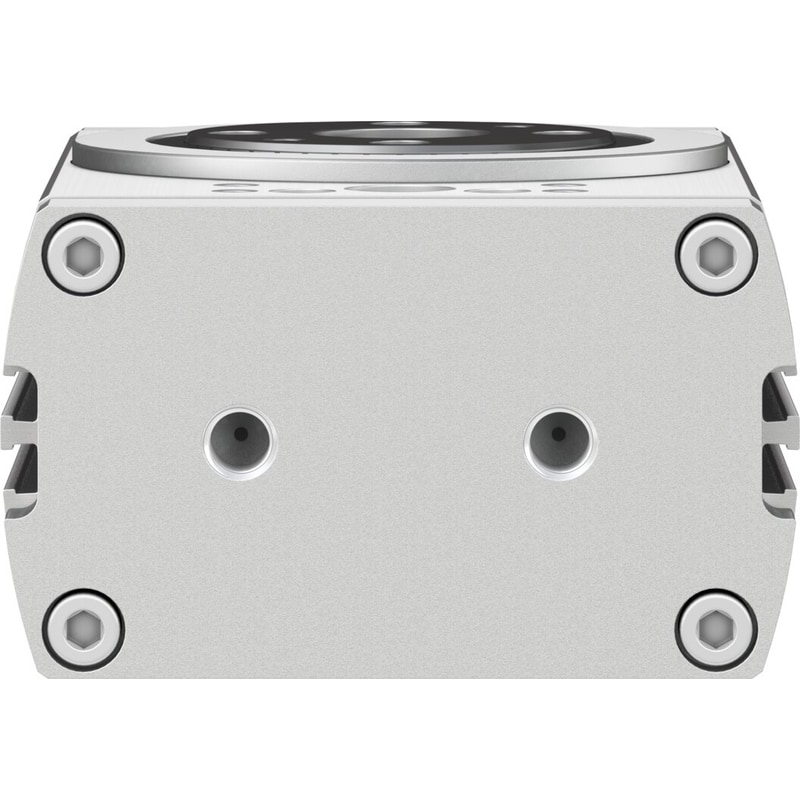

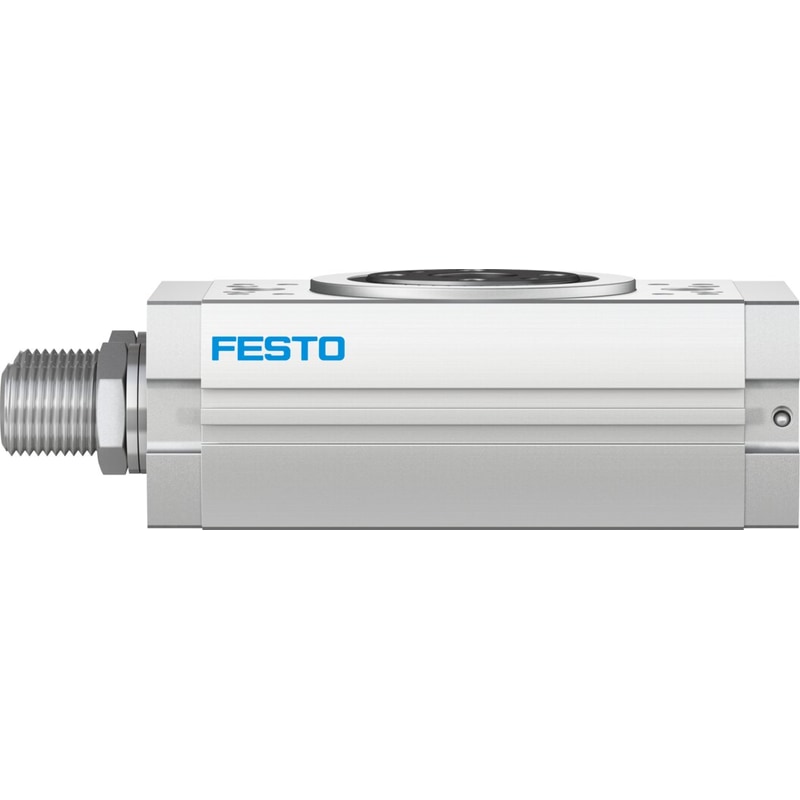

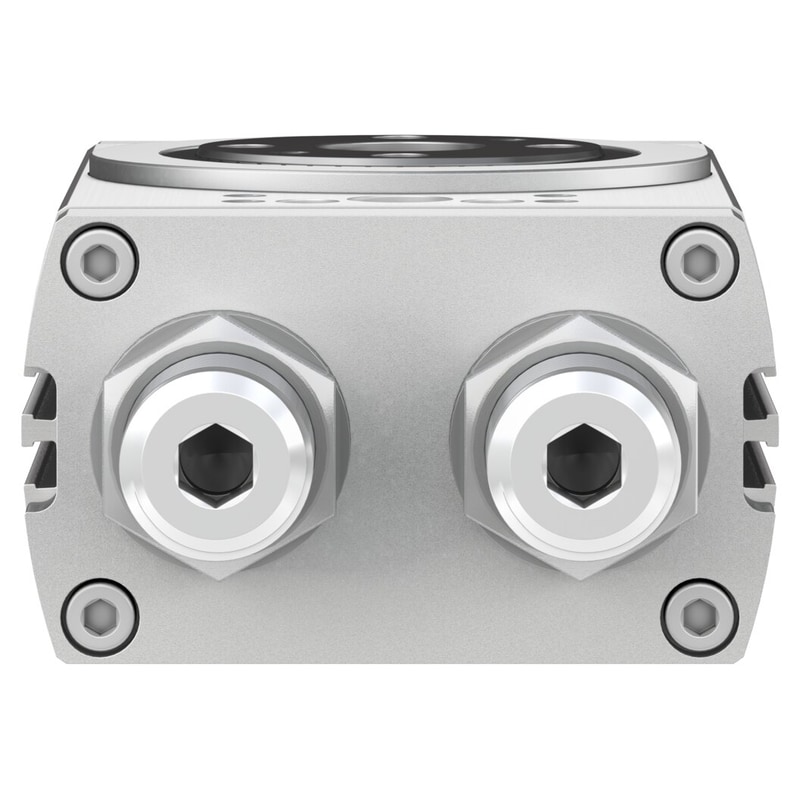

DRRD-35-180-FH-PA

$1,477.41

SKU: 1526825
UNSPSC: 31251504
GTIN: 4052568238025

SKU: 1526825 Category: Brand:

semi-rotary drive DRRD-35-180-FH-PA Size=35, Cushioning angle=36 deg, Setting range of swivel angle on both sides=+10 /-150 deg, Swivel angle=180 deg, Cushioning=P: Flexible cushioning rings/plates at both ends

Size

35

Cushioning angle

36 deg

Setting range of swivel angle on both sides

+10 /-150 deg

Swivel angle

180 deg

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Design structure

Rack and pinion

Position detection

For proximity sensor

Operating pressure

3 … 8 bar

Mode of operation

double-acting

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Ambient temperature

-10 … 60 °C
