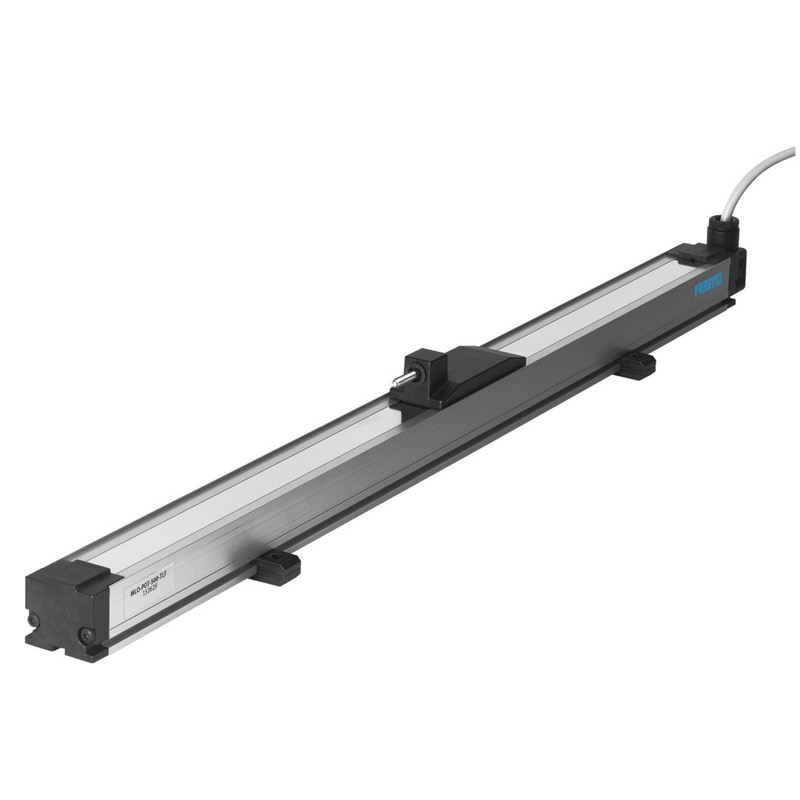

| Type code | MLO |
|---|---|
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Measuring principle of linear potentiometer | Analog |
| Ambient temperature | -30 °C … 100 °C |
| Recommended contact current | < 1 µA |
| Max. short-time slider current | 10000 µA |
| Max. travel speed | 10 m/s |
| Max. travel acceleration | 200 m/s² |
| Displacement resolution | 0.01 mm |
| Independent linearity | 0.0004 |
| Temperature coefficient | 5 ppm/K |
| Stroke | 750 mm |
| Output signal | Analog |
| Connection resistance | 10 kOhm |
| Connection resistance tolerance | 0.2 |
| Nominal operating voltage DC | 10 V |
| Max. operating voltage DC | 42 V |
| Permissible voltage fluctuations | < 1 % |
| Max. current consumption | 4 mA |
| Electrical connection | Rectangular designPlugForm Aas per DIN 436504-pin |
| Design | with cover stripwith sliding carriageOpen profile |
| Coupling parallel quick coupling | ± 1.5 mm |
| Moment compensator angular offset | ± 1 ° |
| Product weight | 1800 g |
| Housing material | AnodizedWrought aluminum alloy |
| Covering material | Steel |
| Slide carriage housing material | PolymerDie-cast aluminum |
| Slide carriage coupling material | Steel |
| Cover material | Polymer |
| Material of assembly brackets | PEI |
| Degree of protection at top | as per IEC 60529 |
| Bottom degree of protection | as per IEC 60529 |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
| Weight | 3.086472 lbs |
|---|---|
| Dimensions | 37.795276 × 3.543307 × 3.543307 in |
| Stroke | 750 mm |
| Functional principle of measuring system | Analogue |
| Output signal | Analogue |
| Displacement resolution | 0.01 mm |
| Electrical connection | 4-pin – Type A – Plugs – To DIN 43650 – Square design |
