| KC characters | KC EMC |
|---|---|
| Nominal width | 10 mm |
| Type code | MPYE |
| Actuation type | Electrical |
| Sealing principle | Hard |
| Mounting position | Any |
| Design | Piston gate valve |
| Reset method | Magnetic spring |
| Safety instructions | MPYE safety position: if the power supply cable breaks, the blocked mid-position is approached. |
| Type of control | Direct |
| Flow direction | Non-reversible |

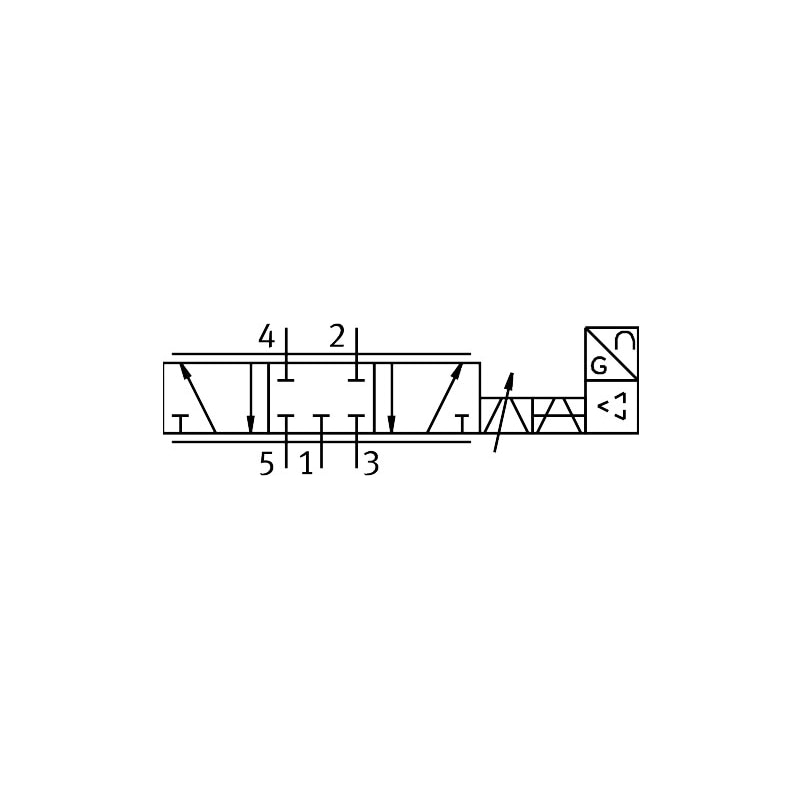

| Symbol | 995308 |
| Valve function | 5/3, closed |
| Reverse polarity protection | for all electrical connections |
| Operating pressure | 0 bar … 10 bar |
| b-value | 0.21 |
| C value | 9 l/sbar |
| Standard nominal flow rate | 2000 l/min |
| Cut-off frequency | 70 Hz |
| Max. hysteresis | 0.004 |
| DC operating voltage range | 17 V … 30 V |
| Residual ripple | 0.05 |
| Setpoint/actual values | Voltage type 0 – 10 V |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 5 °C … 40 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C … 50 °C |
| Certification | RCM compliance mark |
| Product weight | 685 g |
| Electrical connection | PlugM12x14-pinRound design |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 |
| Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Cover material | CoatedABS |
| Seals material | NBR |
| Housing material | AluminumAnodized |
MPYE-5-3/8-010-B
$1,303.45
Fast, durable, and cost-effective: the highly dynamic, hard-sealing piston spool valve MPYE. With an external position controller and linear potentiometer, you can construct a precise pneumatic positioning system.
