| Type code | SIEN |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991704 |
| Certification | RCM compliance markc UL us – Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Rated operating distance | 1.5 mm |
| Assured operating distance | 1.21 mm |
| Reduction factors | Steel St 37 = 1.0Copper = 0.2Brass = 0.35Aluminum = 0.25Stainless steel St 18/8 = 0.7 |
| Ambient temperature | -25 °C … 70 °C |
| Repetition accuracy under constant conditions | 0.07 mm |
| Switching output | NPN |
| Switching element function | N/O contact |
| Hysteresis | ≤ 0.07 mm |
| Max. switching frequency | 5000 Hz |
| Max. output current | 200 mA |
| Voltage drop | ≤ 2 V |
| Inductive protective circuit | Installed |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V … 30 V |
| Residual ripple | ± 10% |
| Idle current | ≤ 10 mA |
| Reverse polarity protection | for all electrical connections |
| Cable length | 2.5 m |
| Material of cable sheath | TPE-U(PUR) |
| Size | 6.5 mm |
| Type of mounting | Clamped |
| Mounting type | Flush |
| Product weight | 45 g |
| Housing material | High-alloy stainless steelPA |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C … 70 °C |
| Degree of protection | IP67IP65 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Selection of additional sensor information | With standard switching distance |
| Electrical output | NPN |
| Selection of sensor version | Standard |
SIEN

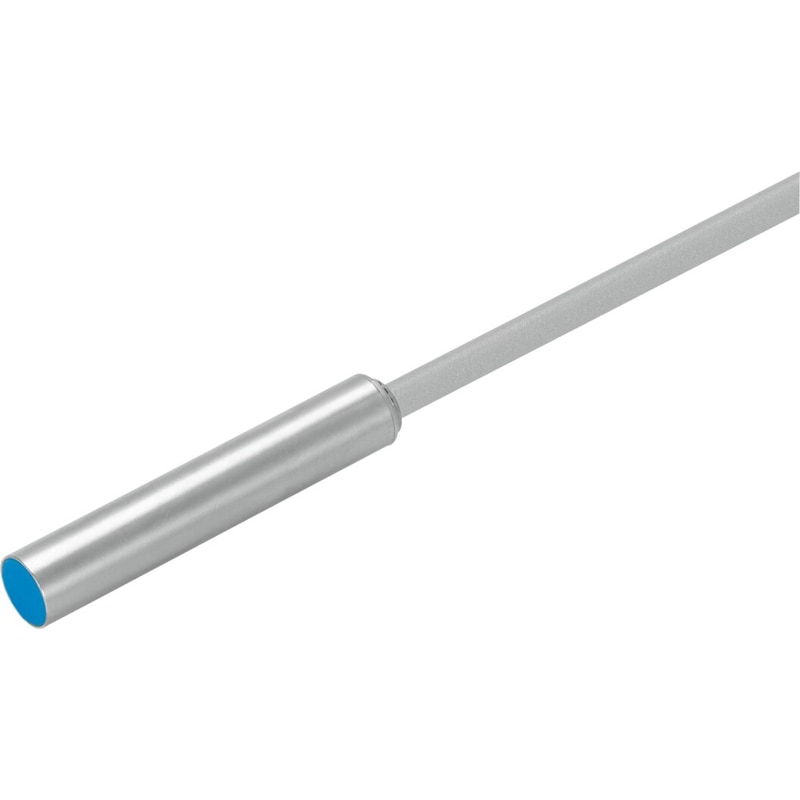

SIEN-6,5B-NS-K-L
$109.60
The perfect solution for detecting metal objects: the inductive proximity sensor SIEN/SIED…-PA. Approved for the food industry and industrial packaging, and also for use in the chemical industry.
| Weight | 0.099428 lbs |
|---|---|
| Dimensions | 5.905512 × 5.905512 × 0.708661 in |
| Size | 6.5 mm |
| Switching output | NPN |
| Switching element function | N/O contact |
| Electrical connection | Cable |
| Operational voltage range DC | 10 V – 30 V |
