| Type code | SIEN |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991701 |
| Certification | RCM compliance markc UL us – Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Rated operating distance | 0.8 mm |
| Assured operating distance | 0.64 mm |
| Reduction factors | Stainless steel St 18/8 = 0.7Steel St 37 = 1.0Copper = 0.3Aluminum = 0.4Brass = 0.4 |
| Ambient temperature | -25 °C … 70 °C |
| Repetition accuracy | 0.04 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 3000 Hz |
| Max. switching frequency DC | 3000 Hz |
| Max. output current | 200 mA |
| Voltage drop | 2 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V … 30 V |
| Residual ripple | 0.1 |
| Idle current | ≤ 10 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-pinM8x1Plug |
| Type of mounting | Clamped |
| Mounting type | Flush |
| Product weight | 9 g |
| Housing material | High-alloy stainless steel |
| Switching status indication | LED yellow |
| Degree of protection | IP67 |
| Selection of additional sensor information | With standard switching distance |
| Electrical output | PNP |
| Selection of sensor version | Standard |
SIEN

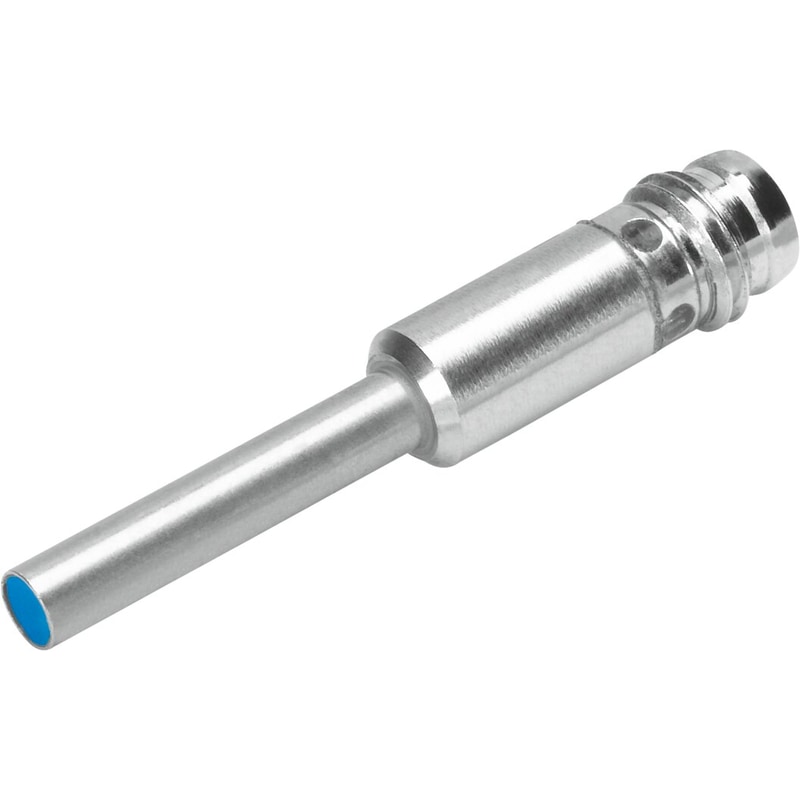

SIEN-4B-PS-S-L
$121.65
The perfect solution for detecting metal objects: the inductive proximity sensor SIEN/SIED…-PA. Approved for the food industry and industrial packaging, and also for use in the chemical industry.
| Weight | 0.017218 lbs |
|---|---|
| Dimensions | 6.692913 × 4.173228 × 0.354331 in |
| Size | 4 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Electrical connection | 3-pin – M8x1 – Plugs |
| Operational voltage range DC | 10 V – 30 V |
